Installation Variants 33
English

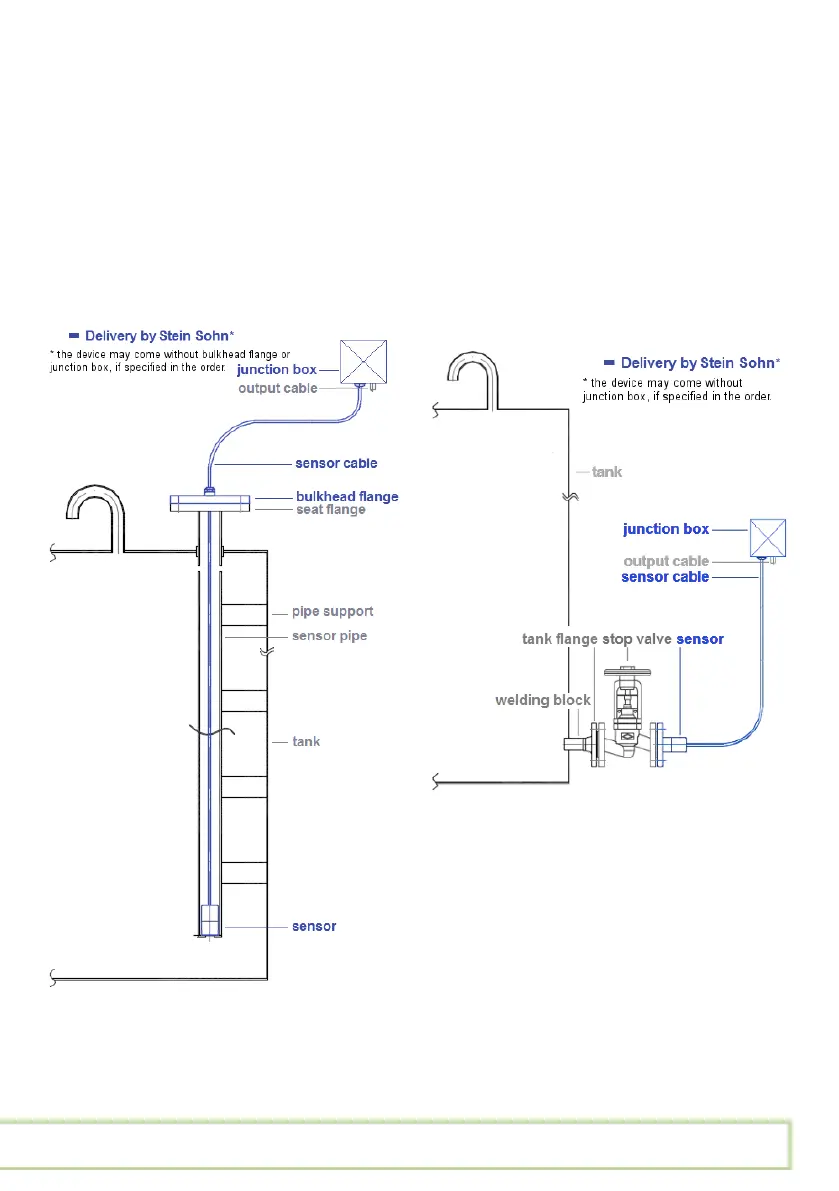

5.2 Top Mounting
The level sensor can be submerged in
the tank through a permanently
installed sensor pipe. The sensor measu-
res the pressure of the liquid above its
position. The minimal distance between
the sensor and the bottom of the tank
must be 20 mm.
5.3 Side Mounting
The level sensor can be connected to the
side of the tank using a welding block.
The sensor measures the pressure of the
liquid above the welding block. We
recommend to install a stop valve bet-
ween the tank and the sensor in order to
enable maintenance works without
draining the tank.
