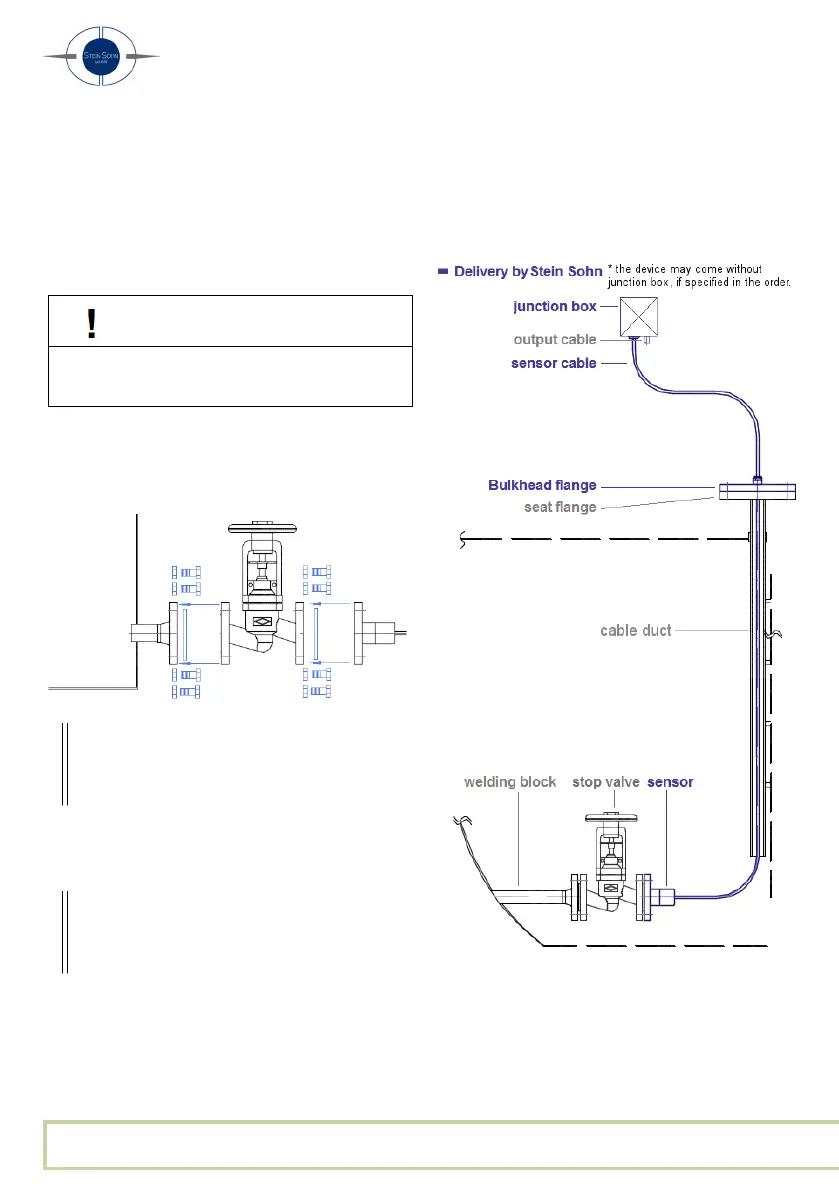

Installation as Draft-Mounting with Bulkhead Fitting40
4. Ensure that the mounting thread is
clean and free of damage.
5. Check the O-ring at the end of the sen-
sor for damages.
6. Screw in the mounting thread of the
sensor into the sensor flange.
7. Tighten the sensor with an open-end
wrench. (tightening torque: 25 Nm)
8.Install the stop valve on the tank flange.
• Ensure that no assembly stress occurs
while installing.
9. Install the sensor on the stop valve.
10.Tighten the bolts.
11.Install the junction box in a dry space
that is vented to the atmosphere.
12.Open the stop-valve.
CAUTION
Only install the device while it is not
under current or pressure.
If necessary install a vertical sup-
port beneath the stop valve for
additional stability.
The sensor is delivered pre-configu-
red. There is no need to configure
the sensor after installation.
