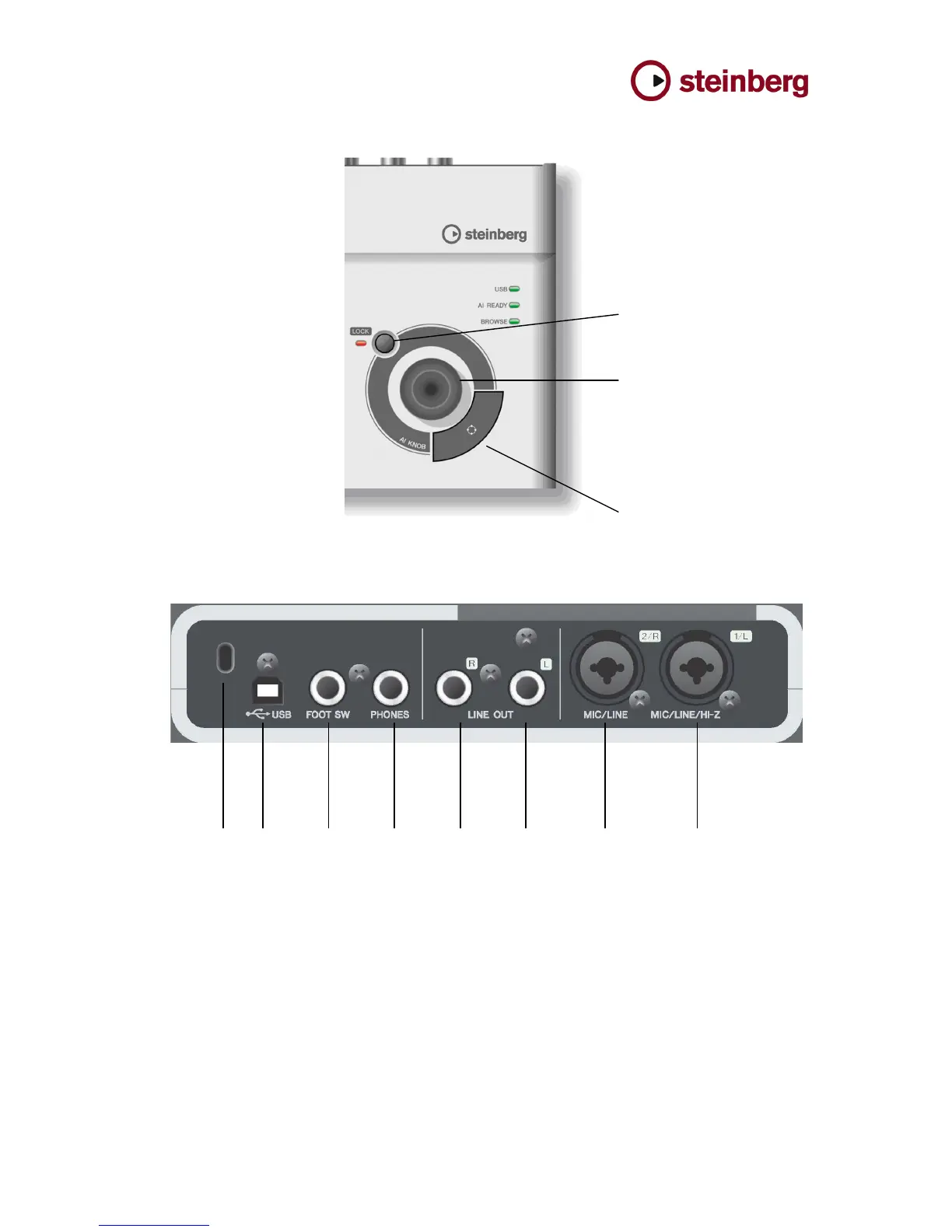

Console’s controller section
Lock button
AI Knob controls all
Cubase parameters
with mouse over;
push functionality for
browsing through the
project
Action Pad
Rear panel
1 2 3 6 7
5. Line output R (TRS/TS supported)
5. Line output L (TRS/TS supported)
6. Mic/Line input 2/R XLR combo jack
7. Mic/Line input 1/L XLR combo jack with HI-Z
4 8 5
4. Phones output
1. Kensington Lock
2. USB port
3. Footswitch connector
