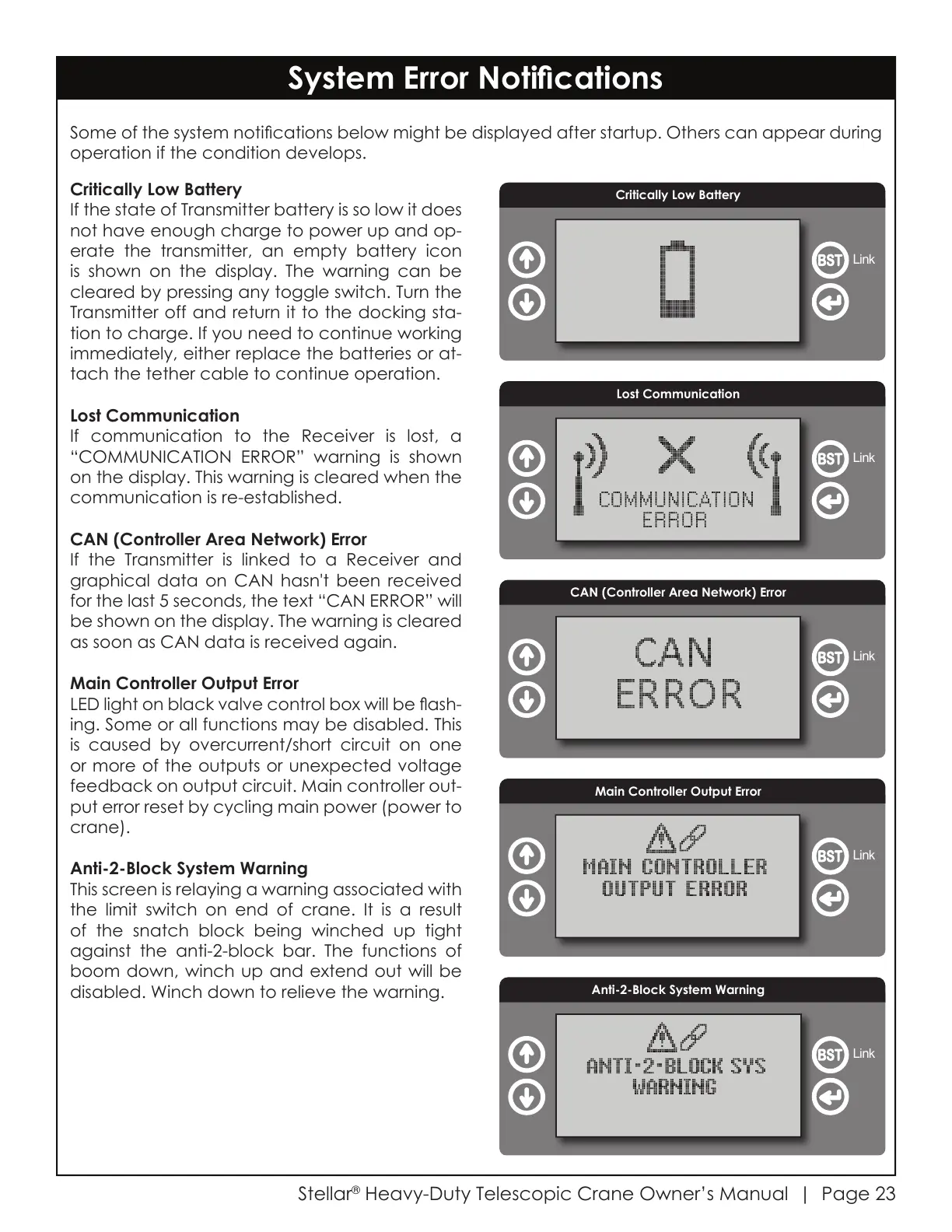

System Error Notications
Some of the system notications below might be displayed after startup. Others can appear during
operation if the condition develops.
Critically Low Battery
If the state of Transmitter battery is so low it does
not have enough charge to power up and op-
erate the transmitter, an empty battery icon
is shown on the display. The warning can be
cleared by pressing any toggle switch. Turn the
Transmitter off and return it to the docking sta-
tion to charge. If you need to continue working
immediately, either replace the batteries or at-
tach the tether cable to continue operation.
Lost Communication
If communication to the Receiver is lost, a
“COMMUNICATION ERROR” warning is shown
on the display. This warning is cleared when the
communication is re-established.
CAN (Controller Area Network) Error
If the Transmitter is linked to a Receiver and
graphical data on CAN hasn't been received
for the last 5 seconds, the text “CAN ERROR” will
be shown on the display. The warning is cleared
as soon as CAN data is received again.
Main Controller Output Error
LED light on black valve control box will be ash-
ing. Some or all functions may be disabled. This
is caused by overcurrent/short circuit on one
or more of the outputs or unexpected voltage
feedback on output circuit. Main controller out-
put error reset by cycling main power (power to
crane).
Anti-2-Block System Warning
This screen is relaying a warning associated with
the limit switch on end of crane. It is a result
of the snatch block being winched up tight
against the anti-2-block bar. The functions of
boom down, winch up and extend out will be
disabled. Winch down to relieve the warning.
