Page 28 | Stellar
®
Heavy-Duty Telescopic Crane Owner’s Manual

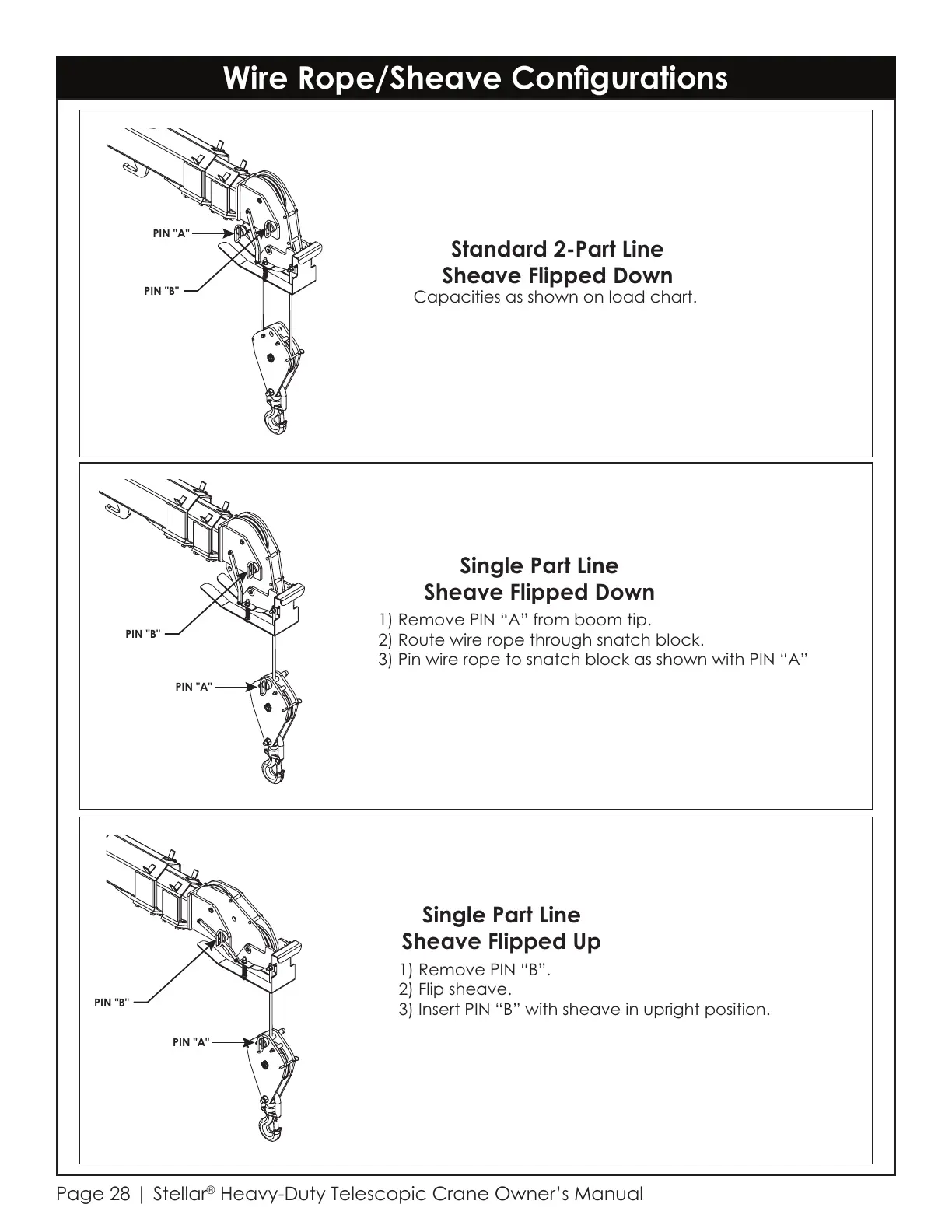

Wire Rope/Sheave Congurations
PIN "A"
PIN "B"
Standard 2-Part Line
Sheave Flipped Down
Capacities as shown on load chart.
Single Part Line
Sheave Flipped Down
1) Remove PIN “A” from boom tip.
2) Route wire rope through snatch block.
3) Pin wire rope to snatch block as shown with PIN “A”
Single Part Line
Sheave Flipped Up
1) Remove PIN “B”.
2) Flip sheave.
3) Insert PIN “B” with sheave in upright position.
PIN "B"
PIN "A"
PIN "B"
PIN "A"
