Stenner Pumps 45M5 - Motor Information; Motor Exploded View

Classic Series www.stenner.com
38

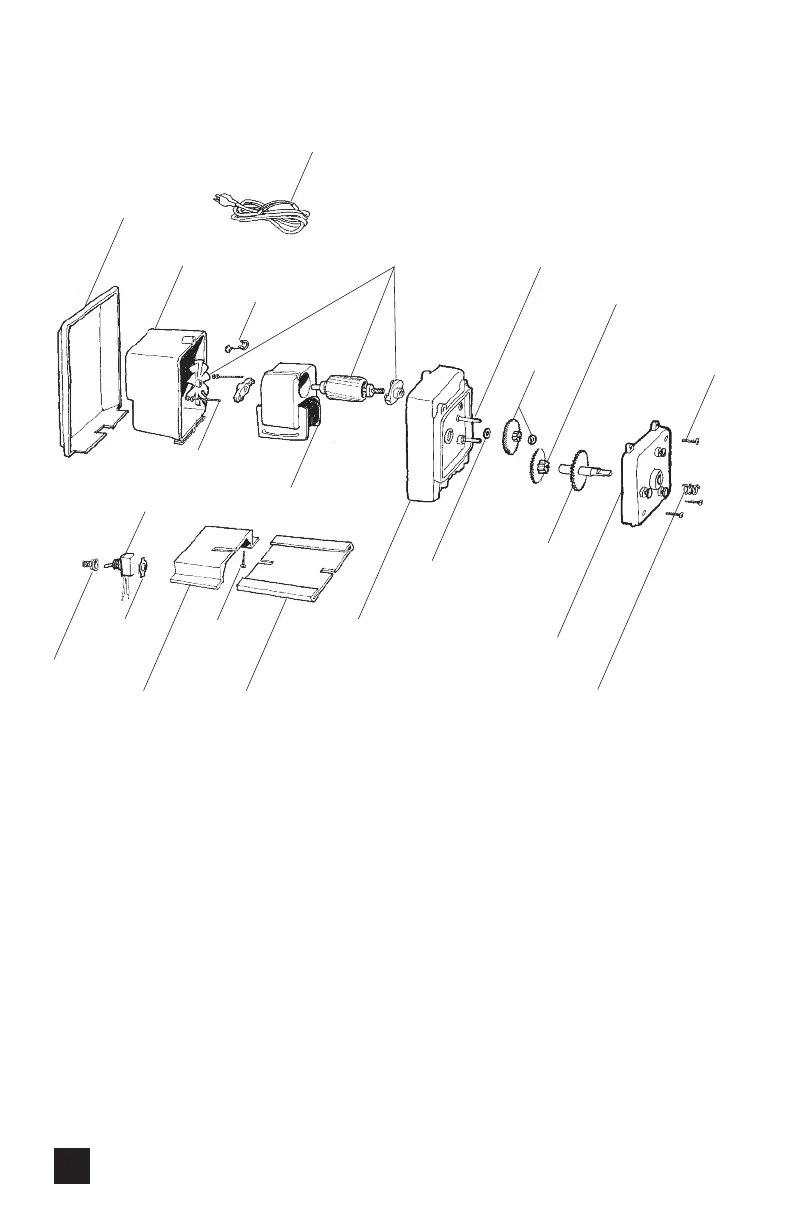

MOTOR EXPLODED VIEW
Contact factory for part numbers.
Gear Case Cover
Metal Reduction Gear
Thrust Washer
Gear Post
Coil
Motor Base
Power Cord
Strain Relief Bushing
Rotor Assembly with
Bearings, Brackets,
Tolerance Rings & Fan
Phenolic Gear
with Spacer
Cover Screw B
Coil Screw G with Lock Washer
Toggle Switch
Switch Boot
Motor Cover with Cord
Rain Roof
Pressure Spring (adjustable models only)
Mounting Bracket
Motor Base
Screw D
On-Off Switch Plate
Gear Case
Motor Shaft
with Gear
