GENERAL INFORMATION
The S Series is an advanced peristaltic pump design with multiple programming features and
performance indicators. The S Series offers practical and flexible functions for municipal, wastewater
and industrial applications.
PUMP FEATURES
• Brushless DC Motor with ball bearing support
• Switch mode power supply
• Microcontroller
• Blue OLED Display
• QuickPro® pump head with leak detect sensor
• Six button keypad on control panel
• Modbus RTU over RS-485 capability
M AI N M E NU
-
C ON F I G UR A T IO N
-
C ON T R O L M O DE
-
R UN P U MP
Button General Function Operating Mode Function
• Moves up in a menu
UP • Toggles between menu options Increases the speed percent in the Manual mode
• Increases a value
• Moves down in a menu
DOWN • Toggles between options Decreases the speed percent in the Manual mode
• Decreases a value
PRIME N/A Runs pump at 100% speed while button is pressed
ON/OFF N/A
Turns pump control ON or OFF
WARNING: DOES NOT REMOVE POWER
BACK Moves one step back in a menu when permitted Cycles the display to show different units of output
ENTER Sets a value
Press and hold for 2 seconds to go to the
Main Menu
SETUP
The very first time the pump is turned on, the display will show the Firmware Version followed by the Main Menu screen.
If the pump was previously programmed, the display will return to the mode it was in when it was turned off or if power
was lost.
Main Menu
-
Configuration
-
Control Mode
-
Run Pump
FW: 3.02.02
S SERIES
The display will indicate
the pump's software version.
OUTPUT
• 0.05 – 150.0 gpd, pressures to 25 psi
• 0.05 – 60.0 gpd, pressures to 100 psi

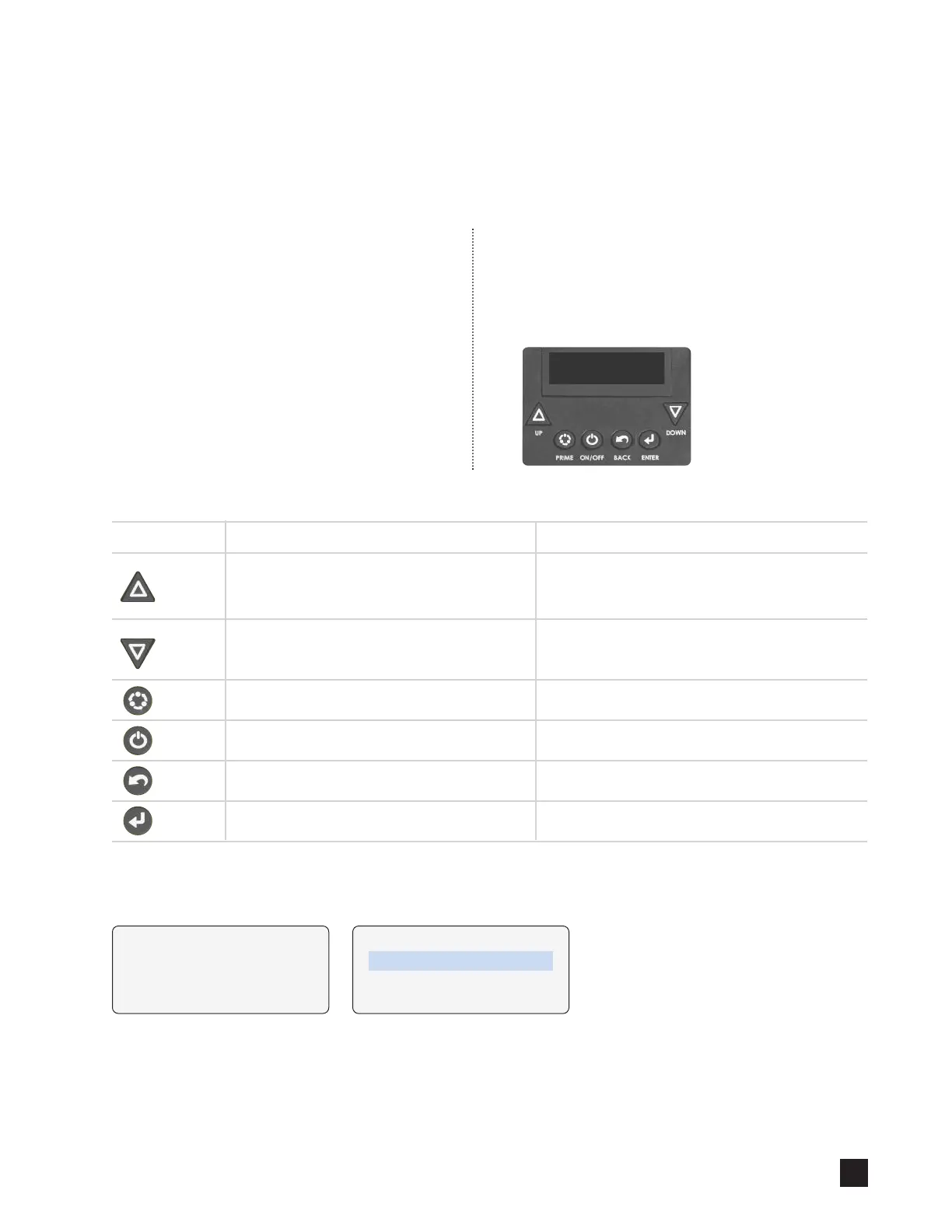

CONTROL PANEL
NAVIGATION BUTTONS
To Next Page
