Lumen Length (410 mm)
0 mm
310 mm
317 mm275 mm
410 mm
LUMEN LENGTHS
50 mm 100 mm 150 mm
Non Lumen
Cycle
Flexible
Cycle
Lumen
Cycle
INSIDE LUMEN DIAMETERS
4.0 Millimeters
0.157 Inches
12.0 French
3.0 Millimeters
0.118 Inches
9.0 French
2.0 Millimeters
0.078 Inches
6.0 French
1.0 Millimeters
0.039 Inches
3.0 French
.77 Millimeters
0.030 Inches
2.3 French
Non Lumen Cycle
• Non-lumened rigid and
semi-rigid endoscopes
• Non-lumened flexible endoscopes
• Stainless steel or Titanium diffusion-
restricted spaces
Flexible Cycle
• Single or Dual Lumen Devices
- ≥ 1 mm ID and ≤ 990 mm L
• Polyethylene (PE)/PTFE (Teflon
®
) Tubing*
- ≥ 1 mm ID and ≤ 4,000 mm L

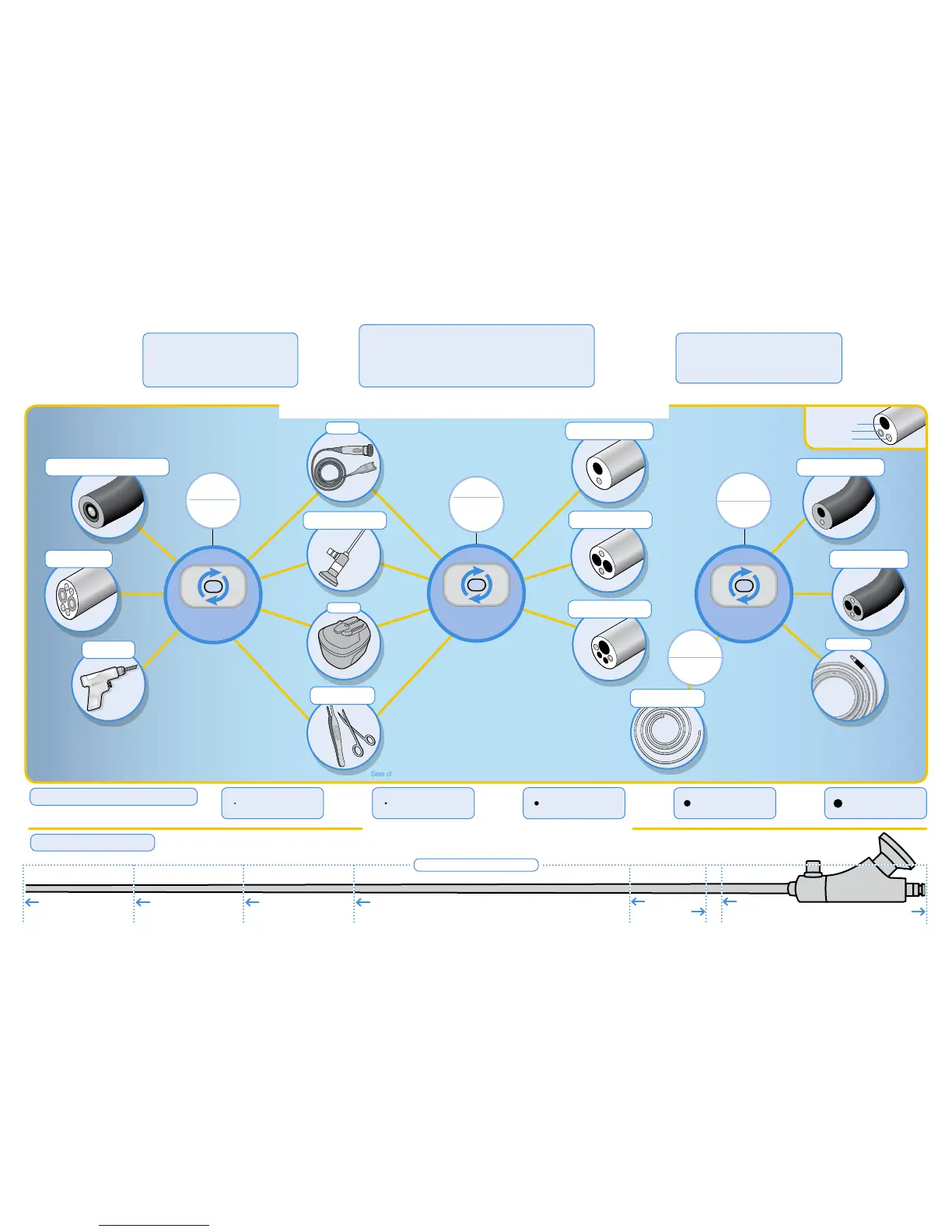

Pictorial representation of device measurements are
approximate and for reference only.
* Tubing claims have not been reviewed by the Food and Drug Administration
Examples of Representative Devices
Refer to the complete Indications for Use and validation loads on the reverse side.
See device matrix to identify the correct cycle for your device.
Orthopedic
Drill
da Vinci
®2
Endoscopes
Non-Lumened Flexible
Endoscope
Camera
Battery
Scissors /
Forceps
Non-Lumened
Telescope
Single Lumen
Endoscope
(Teflon
®
) PTFE+PE
Tubing*
Dual Lumen
Endoscope
Single Lumen
Endoscope
Light Cord
Dual Lumen
Endoscope
Triple Lumen
Endoscope
LIMITS
PER CYCLE
12 POUNDS
(5.4 kg)
LIMITS
PER CYCLE
1 ENDOSCOPE
LIMITS
PER CYCLE
14 pieces
no additional
load
LIMITS
PER CYCLE
11 POUNDS
(5.0 kg)
12 LUMENS
Lumen Cycle
• Single or Dual Stainless Steel Lumen Devices
- ≥ 0.77 mm internal diameter (ID) and ≤ 410 mm in length (L)
• Triple Stainless Steel Lumen Devices
- ≥ 1.2 mm ID and ≤ 275 mm L
- ≥ 1.8 mm ID and ≤ 310 mm L
- ≥ 2.8 mm ID and ≤ 317 mm L
