4

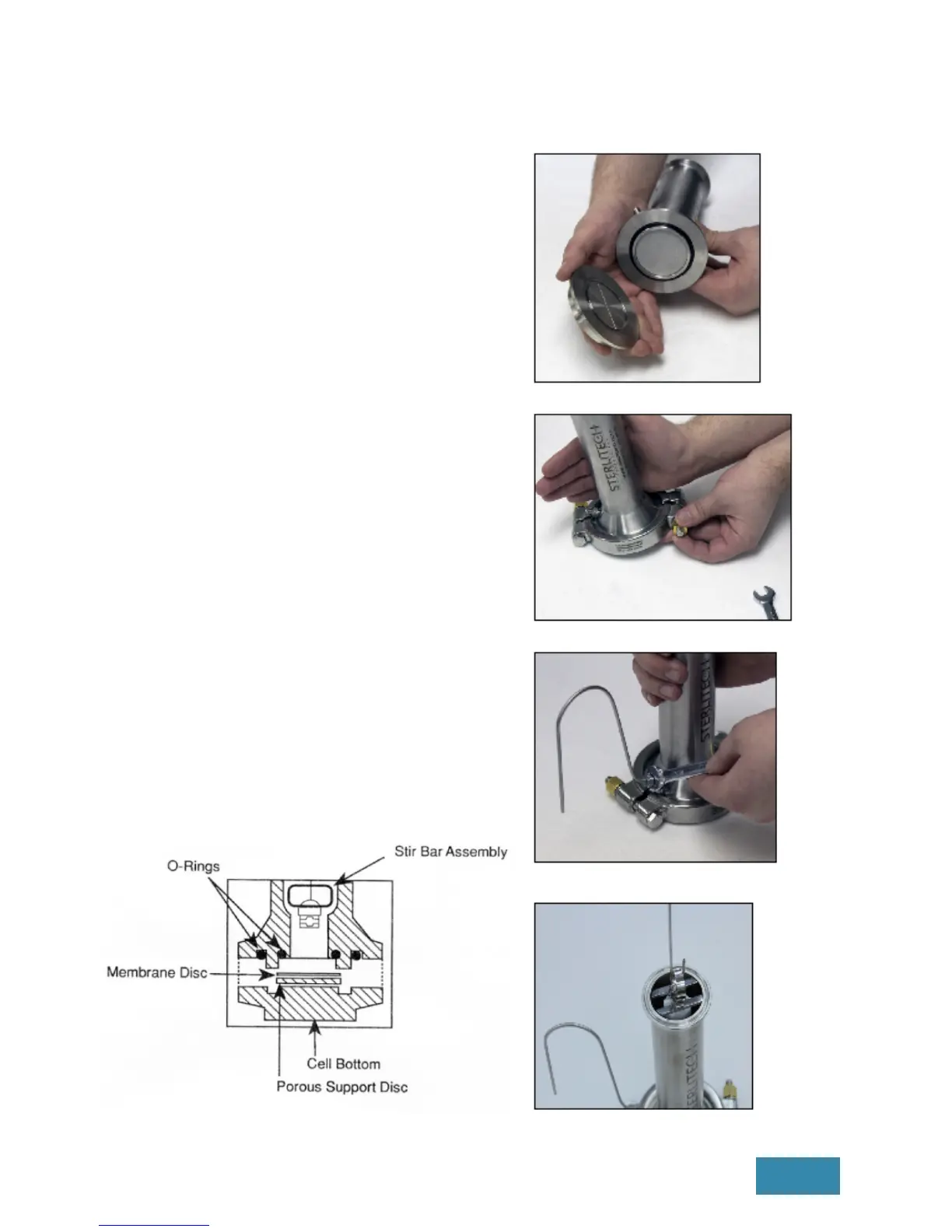

5. Fit the cell bottom onto the cell body,
aligning the circular groove with the
circular ridge on the bottom of the cell
body (Photo 5).
6. Use the 3-inch high pressure coupling to
clamp the cell bottom to the cell body.
Tighten the high pressure coupling with
16 foot pounds of torque for 1000 psig (69
bar) operation (Photo 6).
7. Insert Permeate Tube into side of cell
body, tighten using a wrench (Photo 7).
Note: The HP4750 uses Swagelok connection
fittings. More detailed instructions, information
and images of the fittings can be found in
Appendix 1.
8. Insert the Stir bar assembly by lowering
it into the cell with the stir bar retriever
(Photo 8). Figure 2 shows the correct
position of the Stir Bar Assembly. After the
assembly is in place, pour the solution to
be filtered into the Cell Body.
Figure 2: Proper Stir Bar Position
Photo 5: Cell Bottom Assembly
Photo 6: Bottom Clamp Assembly
Photo 7: Permeate Tube Installation
Photo 8: Stir Bar Insertion w/ Stir Bar Retriever
