9. Insert the gasket on the top of the Cell
Body, making sure it fits properly in the
grooves (Photo 9).
10. Use the 2-inch high pressure coupling to
clamp the cell top to the cell body (Photo
10). Tighten the high pressure coupling
with 16 foot pounds of torque for 1000 psig
(69 bar) operation (Photo 11). After both
clamps are properly attached, the HP4750
Stirred Cell should be centered on top of a
magnetic stirrer.

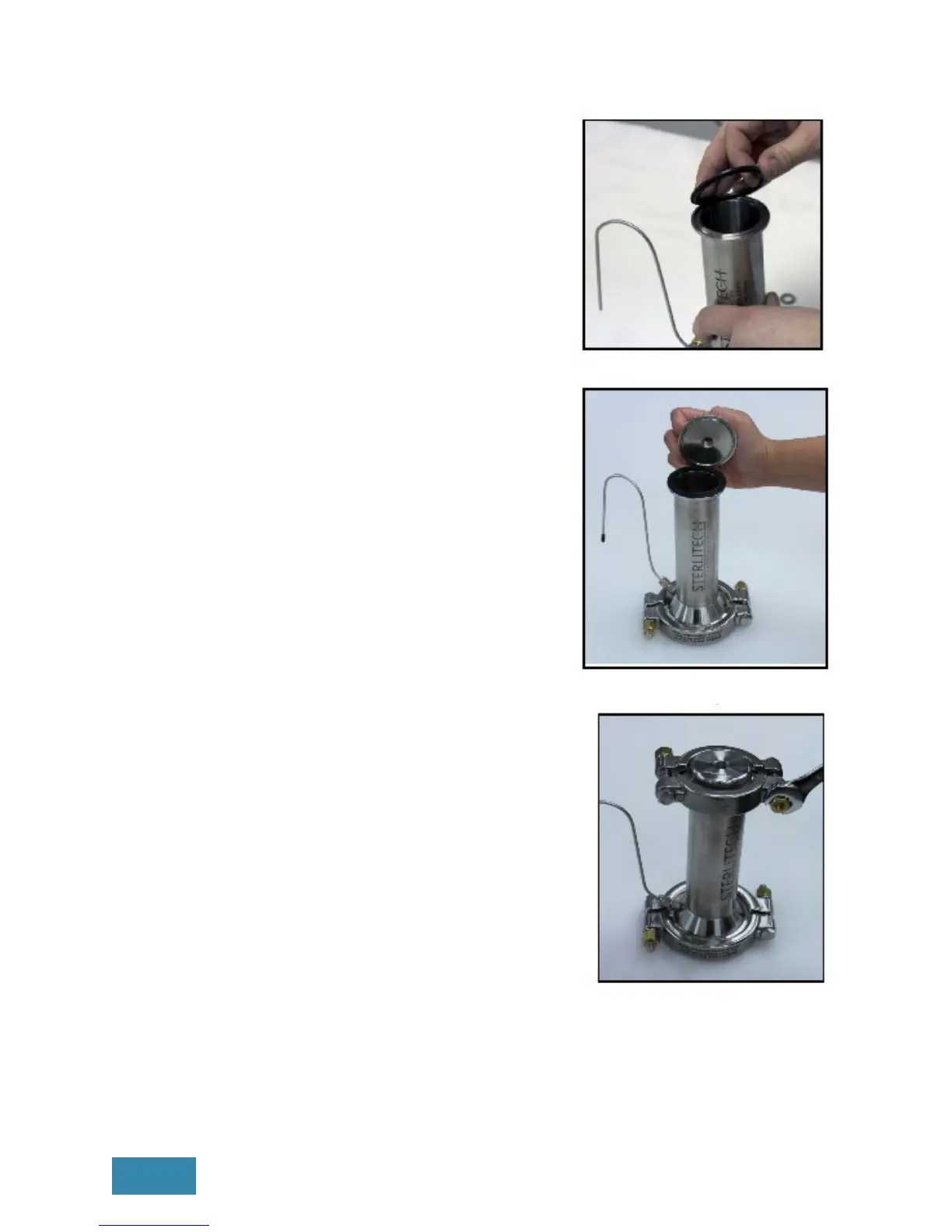

Photo 9: Gasket Installation
Photo 10: Cell Top Attachment
Photo 11: Cell Top Clamp
