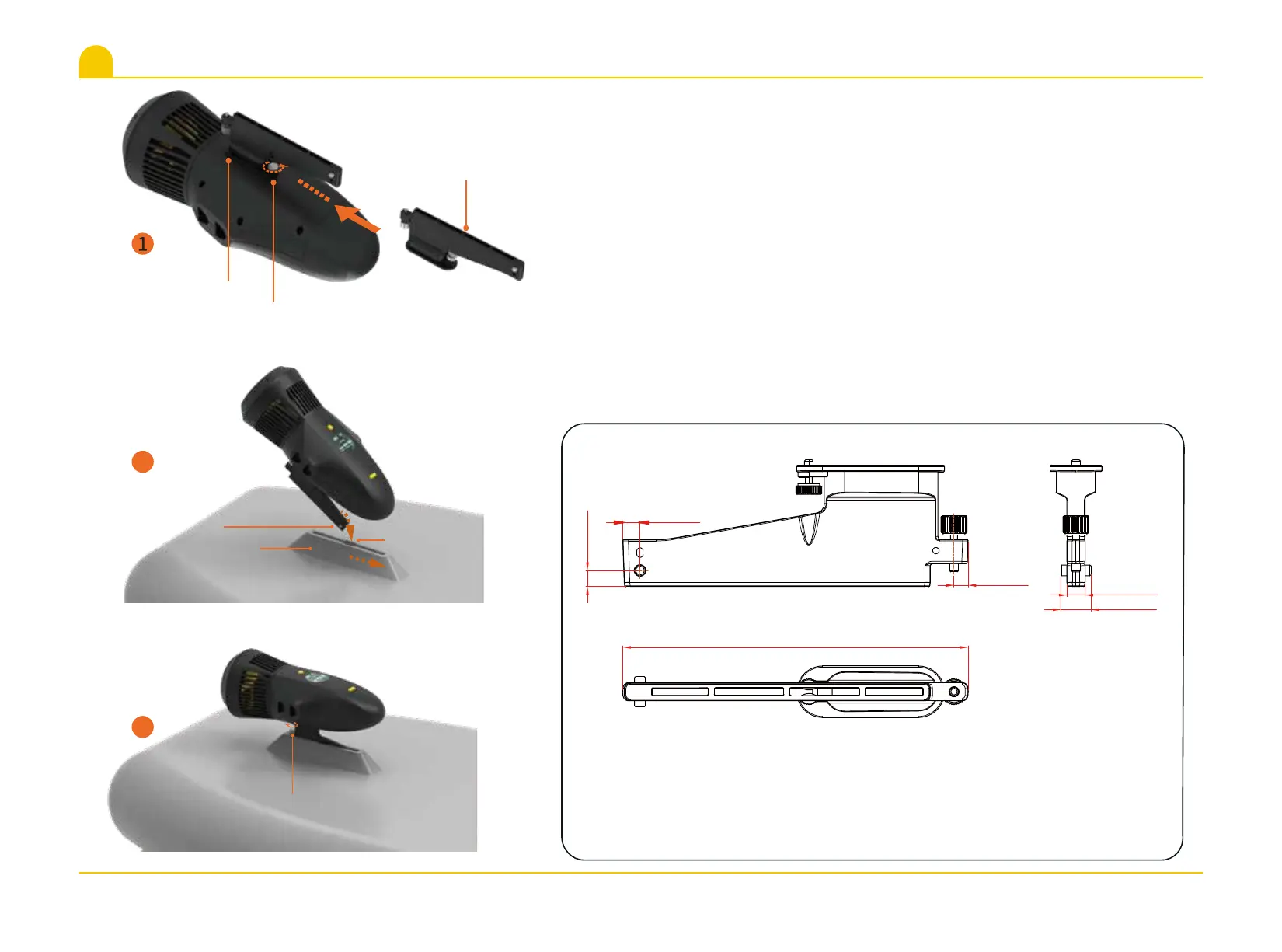

1. The installation method of connecting bracket B and Main Unit
is the same as that of connecting bracket A.
2. After the installation, the Main Unit with Connect Bracket B
should be keep a tilt angle with the SUP mounting base.
3. Align the Location Pin on the connect bracket B with the Limit
notch on the sup mounting base, and slowly push it into and
slide it forward to tighten it.
4. Rotate the Bolt on Connect Bracket B and fasten it to SUP
mounting base.
Bolt
Connect Bracket B
Track
Location Pin
SUP mounting base
Limit notch
Bolt
8.00mm
160.00mm
6.50mm
8.40mm
14.00mm
7.50mm
2
3
A. Please refer to the size of the standard connection bracket B as shown in the picture
to match your SUP base when you choose SUP;
B. If your SUP mounting base does not match the standard connection bracket B of this
device, please purchase another suitable support accessories
7.1.2 Install the M1 on SUP(By the Connect Bracket B)
