7.Outer configure equipment installation
methods

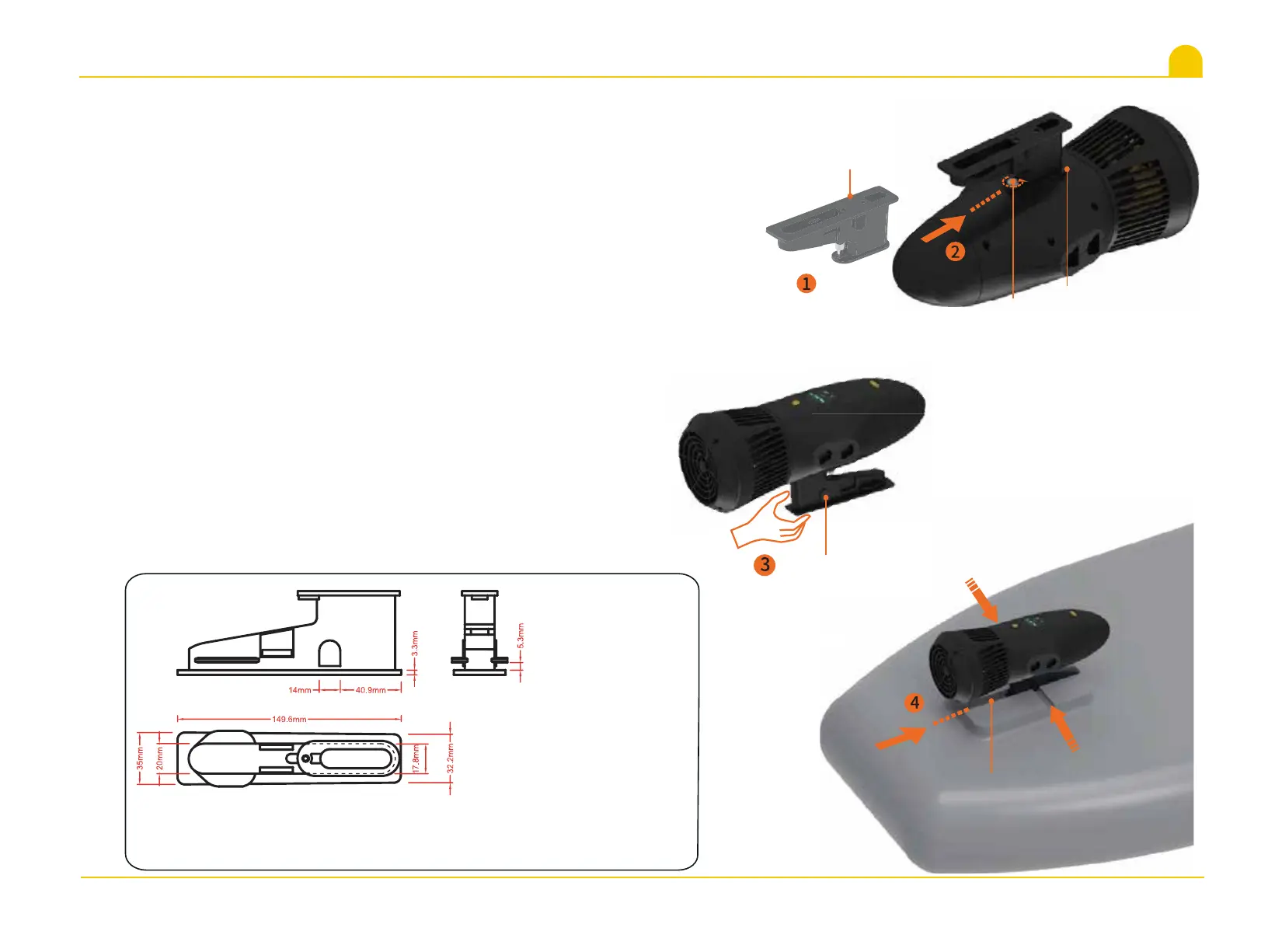

7.1.1 Install the M1 on SUP (By the Connect Bracket A)
1.Make the Connect Bracket A align to the Track of Main Unit,and
slide the Connect Bracket A into the Main Unit until the screw
holes of both are aligned.
2.Rotate the Bolt on the Connect Bracket A and fasten it to the
Main Unit.
3.
Make another end of
Connect Bracket A
and SUP rail aligned
after the
Connect Bracket
A and
Track of Main Unit
connection
finished.
4.Sliding into the spacing groove which vertical to
SUP
rail after
pressed the
Flexible Button
on both side of Connect Bracket.
5.Installed on position after the
Flexible Button
pop out.
13
Connect Bracket A
Bolt
Track
SUP Rail
A. Please refer to the size of the standard connection bracket A as shown in the picture
to match your SUP base when you choose SUP;
B. If your SUP mounting base does not match the standard connection bracket A of this
device, please purchase another suitable support accessories
Flexible Button
