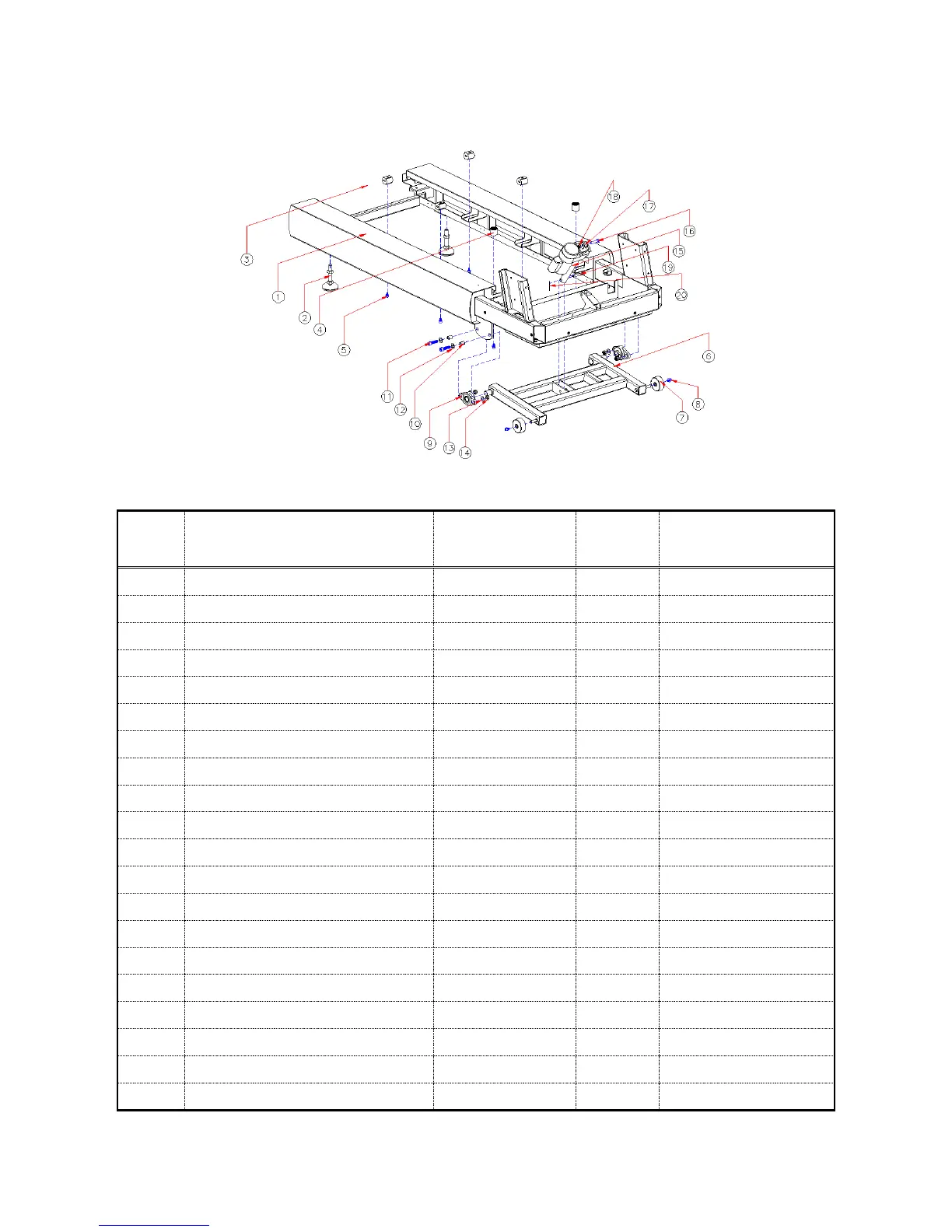

3-7 Assembly Main Frame (#6)
3-7 Description
No
Parts
Parts No.
Q’TY
Remark
1
Main frame assembly
301677
1 ea
2
Leveling foot B
300502
2 ea
3
Silicon absorber
300180
2 ea
4
Rubber absorber
300181
4 ea
5
Hexagon socket head
300081
6 ea
M8 x 15L (SEMS)
6
Incline leg frame assembly
301681
1 ea
7
Front wheel
300505
2 ea
8
Hexagon socket head
300082
2 ea
M8 x 20L (SEMS)
9
Unit bearing
301683
2 ea
UCFL 205
10
Bearing shaft
301812
4 ea
11
Hexagon socket head
300109
4 ea
M12 x 45L
12
Washer flat
301811
4 ea
Ø12 (Outside)
13
Washer flat
301811
4 ea
Ø12 (Inside)
14
Nut nylon insert lock
300025
4 ea
M12
15
Incline motor
301687
1 ea
220V
16
Hex head
300034
1 ea
M10 x 45L
17
Incline bushing
300191
1 ea
18
Nut nylon insert lock
300024
1 ea
M10
19
Incline front fix shaft
300192
1 ea
20
Split pin
300193
1 ea
