stex S23T - Tensioner and Roller Assemblies

< 10 >

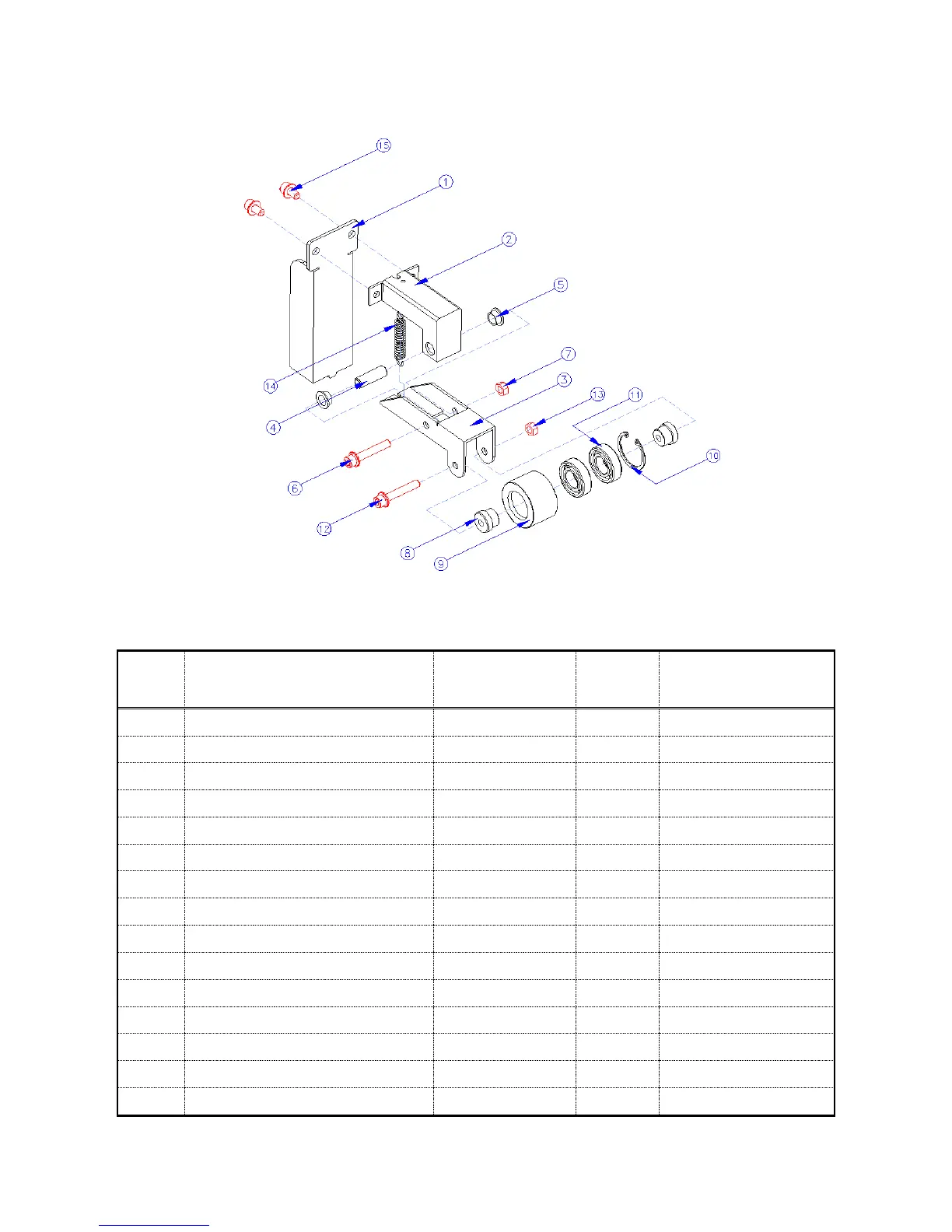

3-4 Assembly Auto Tensioner (#3)
3-4 Description
No
Parts
Parts No.
Q’TY
Remark
1
Tensioner bracket 01
301696
1 ea
2
Tensioner bracket 02
300213
1 ea
3
Tensioner bracket 03
300211
1 ea
4
Tensioner hinge shaft
300216
1 ea
5
Tensioner hinge bushing
300215
2 ea
6
Hexagon socket head
300087
1 ea
M8 x 55L (SEMS)
7
Nut-nylon insert lock
300023
1 ea
M8
8
Tensioner roller shaft
-
2 ea
Φ12
9
Tensioner roller
-
1 ea
10
Snap ring - C type
-
1 ea
Φ15
11
Ball bearing
-
2 ea
#6902ZZ
12
Hexagon socket head
300087
1 ea
M8 x 55L (SEMS)
13
Nut-nylon insert lock
300023
1 ea
M8
14
Tensioner spring
300216
1 ea
15
Hexagon socket head
300081
2 ea
M8 x 15L (SEMS)
