stex S23T - Step-by-Step Assembly Guide

< 31 >
Assembly procedures
 S23T/S23TX
1. Check the contents//Accompanying parts, required tools, & others…

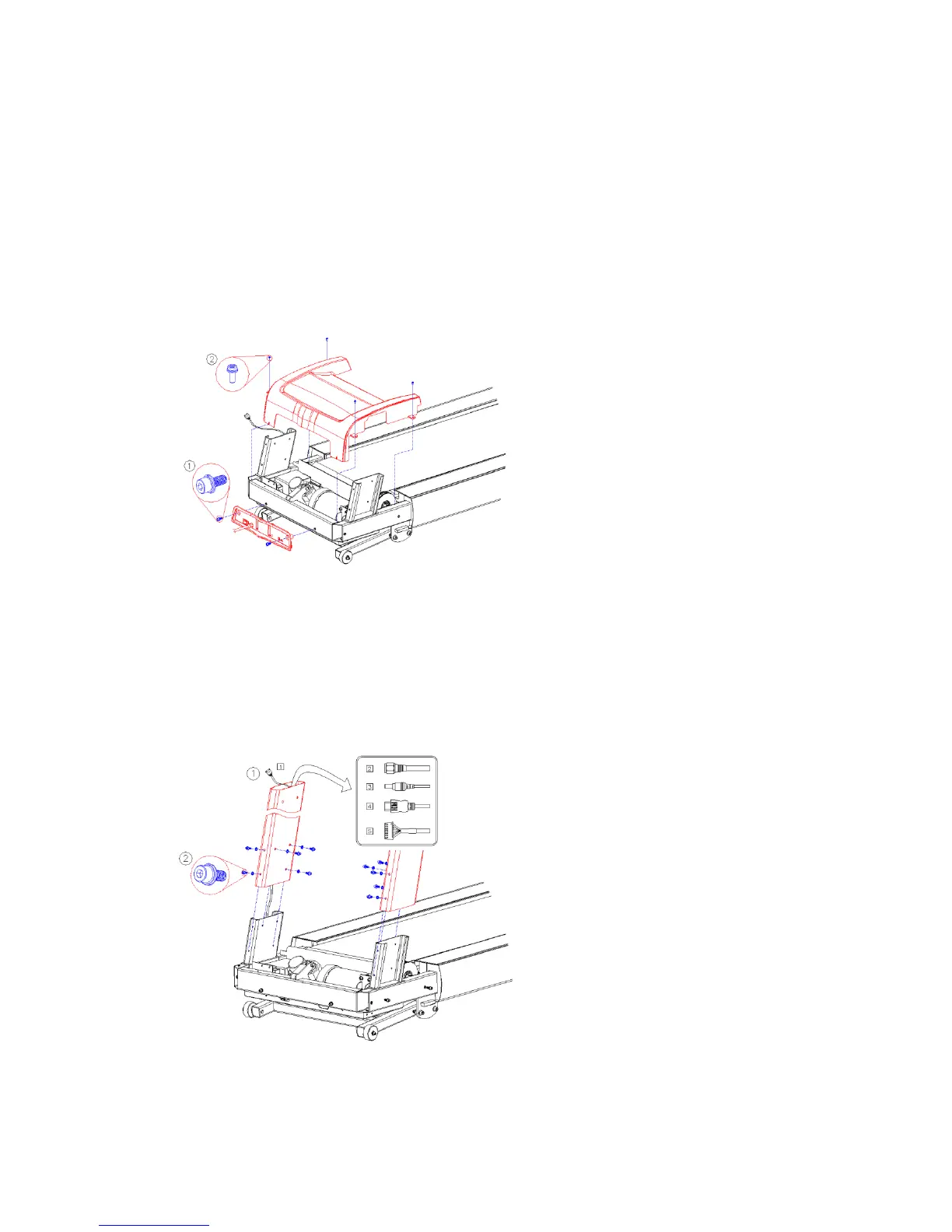

2. Remove the two BOLTS (①, M820L) securing the FRONT COVER and the four SCREWS (②, M512L)
securing the MOTOR COVER. Lift and remove the FRONT COVER & MOTOR COVER and set the BOLTS
& SCREWS aside.
3. Position the LEFT TUBE(CONSOLE SUPPORT TUBE) as shown. Secure the LEFT TUBE using five BOLTS
(②, M820L) and five TOOTED LOCK WASHER(M8). Leave the BOLTS loose at this time.
4. Position the RIGHT TUBE(CONSOLE SUPPORT TUBE) as shown. In case of S23T, Feed the CONSOLE
CABLE(①) through the tube of RIGHT TUBE. In case of S23TX, Feed the CONSOLE CABLES[① + added
CABLES in parenthesis] through the tube of RIGHT TUBE. Secure the RIGHT TUBE using five BOLTS(②,
M820L) and five TOOTED LOCK WASHER(M8). Leave the BOLTS loose at this time.
※ Be careful not to pinch the cable(or cables) when inserting the RIGHT TUBE onto the right tube mounting
bracket.
