stex S23T - Main Frame Assemblies

< 5 >

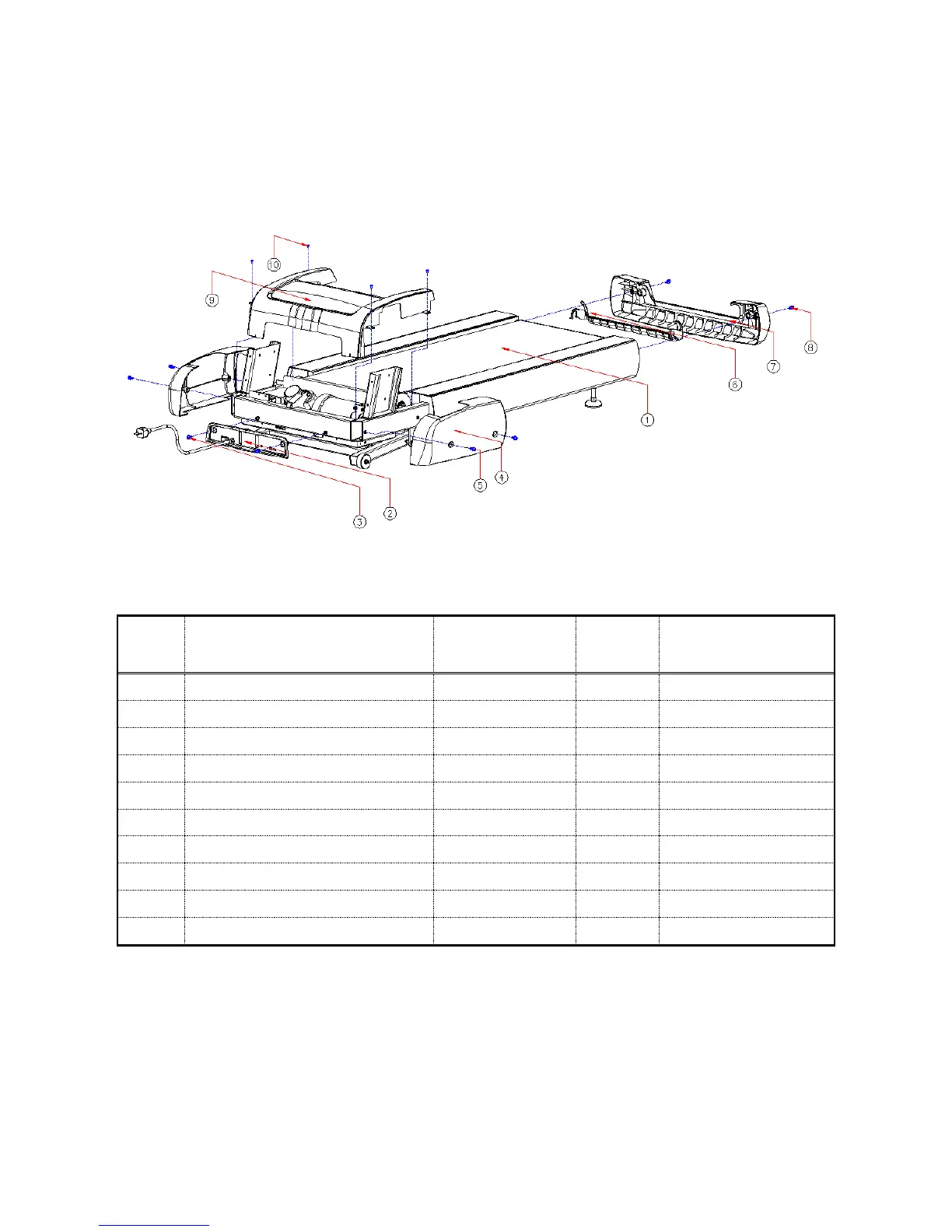

3-2 Assembly Main Frame (#1) – S23T, S23TX
3-2 Description
No
Parts
Parts No.
Q’TY
Remark
1
Main frame assembly
-
1 ea
2
Front cover assembly
-
1 ea
3
Hexagon socket head
300082
2 ea
M8 x 20L (SEMS)
4
Side motor cover (LH / RH)
201302 / 201303
1 set
5
Hexagon socket head
300082
4 ea
M8 x 20L (SEMS)
6
Safety guide
300256
1 ea
7
Back cap
201301
1 ea
8
Hexagon socket head
300082
4 ea
M8 x 20L (SEMS)
9
Top motor cover
201302
1 ea
10
Machine pan head
300040
4 ea
M5 x 12L (SEMS)
