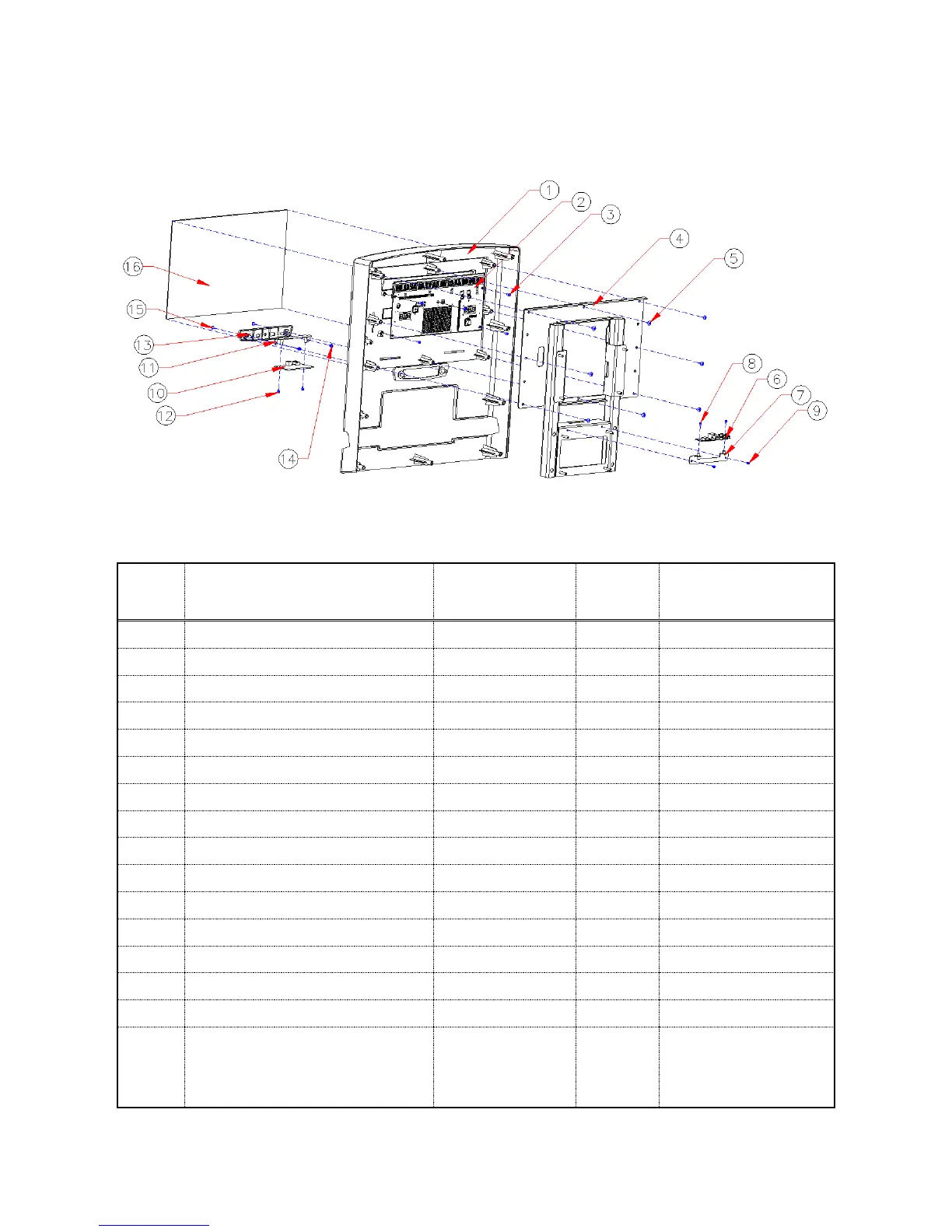

3-15-1 Assembly Display Frame (#8) – S23T
3-15-1 Description
No
Parts
Parts No.
Q’TY
Remark
1
Mold_ Top Console / Front N
201307
1 ea
2
Display board
201288
1 ea
3
Tapping truss head
300080
5 ea
Φ4 x 8L
4
Console top frame assembly
301766
1 ea
5
Tapping truss head
300066
8 ea
Φ5 x 12L
6
Comm. board
201047
1 ea
7
Comm. B/D Bracket
301105
1 ea
8
Machine pan head
300042
2 ea
M3 x 6L (SEMS)
9
Machine pan head
300042
2 ea
M3 x 6L(SEMS)
10
Front board
201044
1 ea
11
Front board Bracket
301103
1 ea
12
Machine pan head
300057
2 ea
M4 x 8L (SEMS)
13
Mold_ Front board cover 0003
201294
1 ea
14
Machine pan head
300040
2 ea
M5 x 12L (SEMS)
15
Tapping pan head
300072
2 ea
Φ5 x 12L
16
Overlay
301764
301821
301822
1 ea
English
Japanese
Russian
