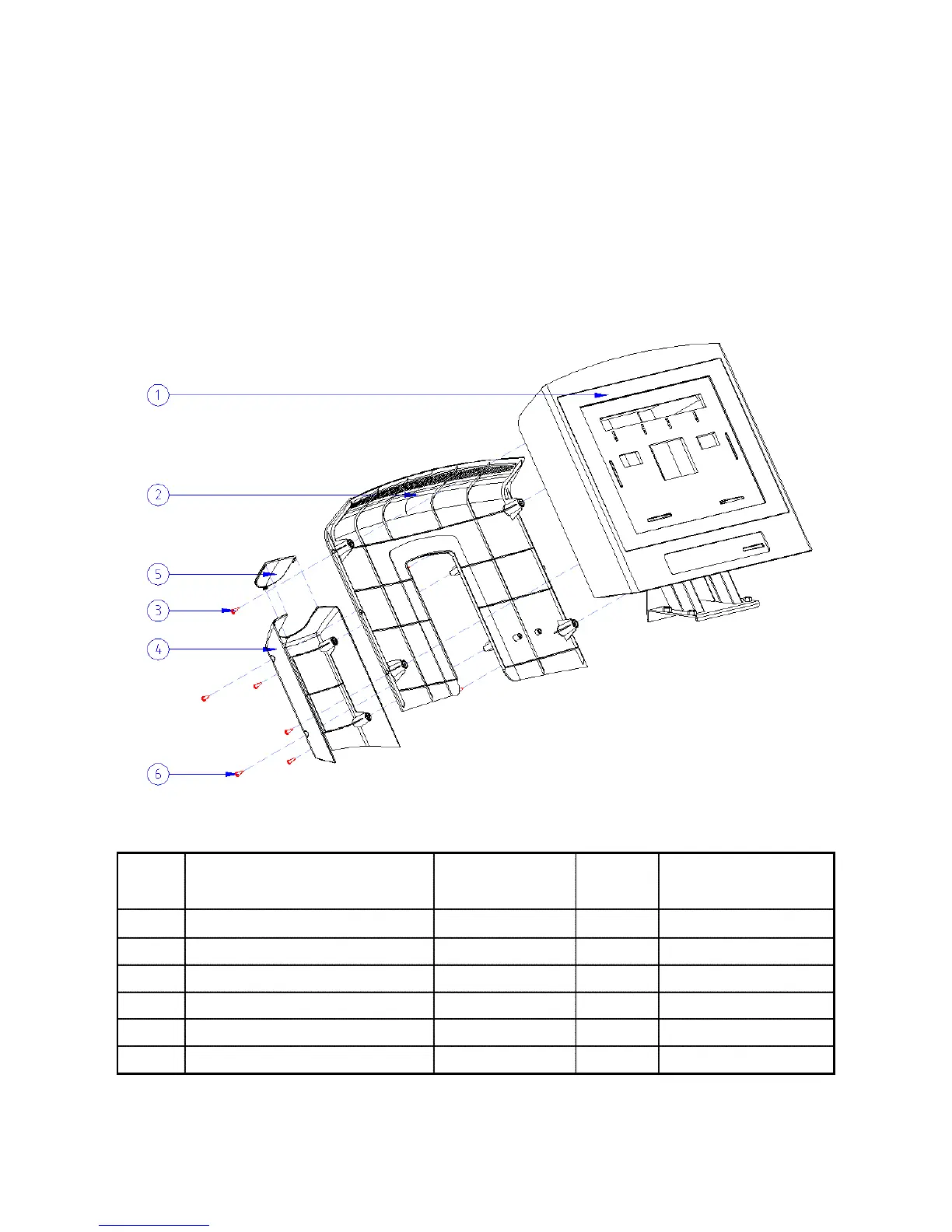

3-16-1 Assembly Display Frame S25T (#8)
3-16-1 Description
No Parts
Parts No. Q TY Remark
1 1 st display top assembly 21DC-TSB11 1 ea
2 Display top bottom case 32M3-TS091 1 ea
3 Tapping pan head 33U5-6B516 4 ea Φ 5 x 16 L
4 Display top back cover 32M3-TS111 1 ea
5 Display top back upper cover 32M1-TSAD1 1 ea
6 Tapping pan head 33U5-6B516 4 ea Φ 5 x 16 L
