stex S25T - Main Frame Assemblies

< 5 >
3 Display support(LH/RH) 32M4-AL313/23 1 set
4 Hexagon socket head 33W1-1N820 14 ea M8 x 20 L (SEMS)

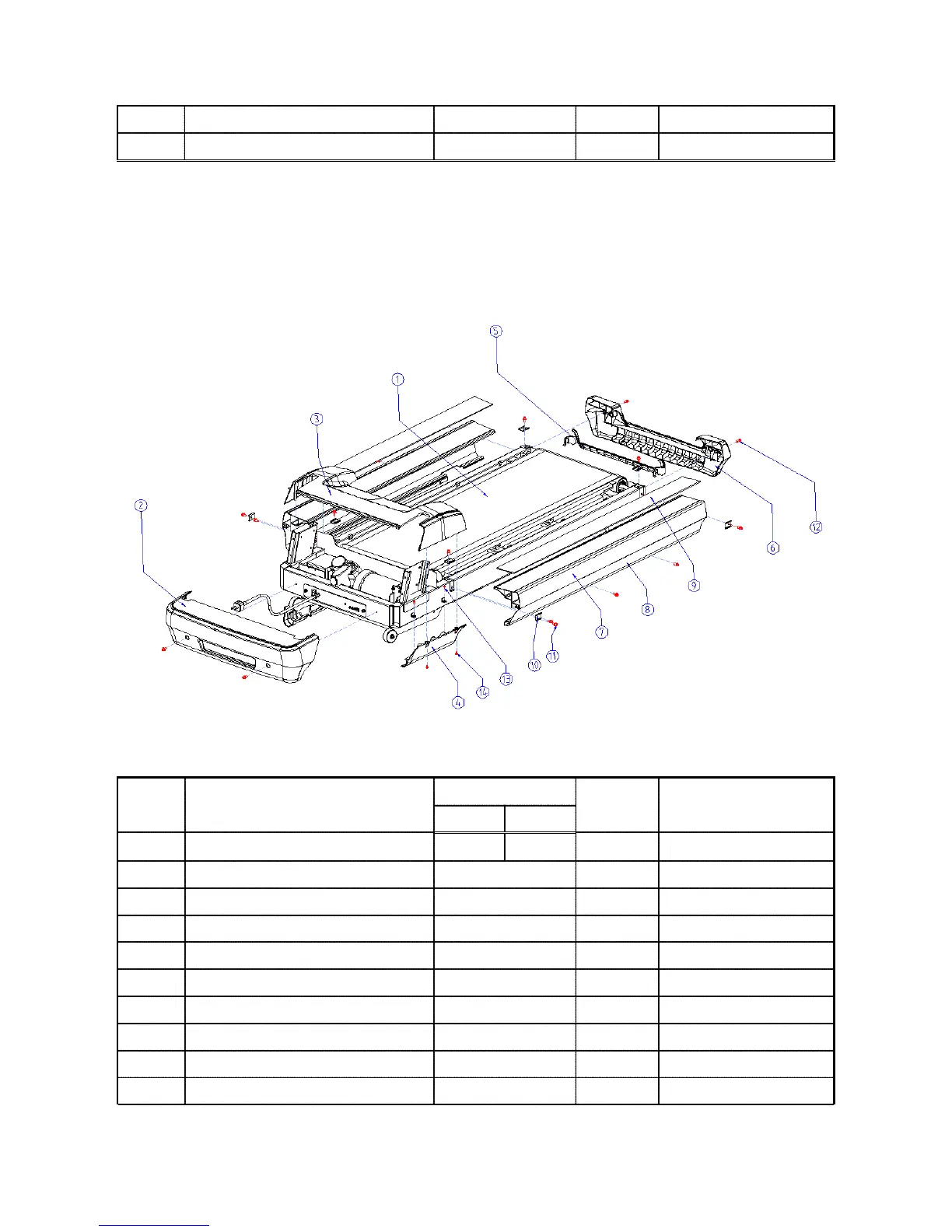

3-2 Assembly Main Frame (#1)
3-2 Description
No Parts
Parts No.
Q ’ TY Remark
S25T S25TX
1 1 ’ st main frame assembly
21MF-TSA0 1 21MF-TSC01
1 ea
2 Front motor cover 32M3-TS011 1 ea
3 Top motor cover 32M3-TS021 1 ea
4 Side motor cover-LH(RH) 32M3-TS031(41) 1 set
5 Safety guide 32M3-TS061 1 ea
6 Back cap 32M3-TS051 1 set
7 Side platform 32M4-AL101 2 ea
8 Frame side cover_LH(RH) 32M4-AL212/22 1 set
9 Non slip pad 32M3-RS201 2 ea
10 Platform fixer plate 02 32M1-TSE21 8 ea
