7 Scaler board 22BD-TS111 1 ea
8 Tuner board 22BD-TS131 1 ea
9 Tapping truss head 33U6-6Z512 6 ea
10 Machine pan head 33T6-1B512 4 ea M5 x 12 L (SEMS)
11 Machine pan head 33T6-1Z308 13 ea M3 x 8 L

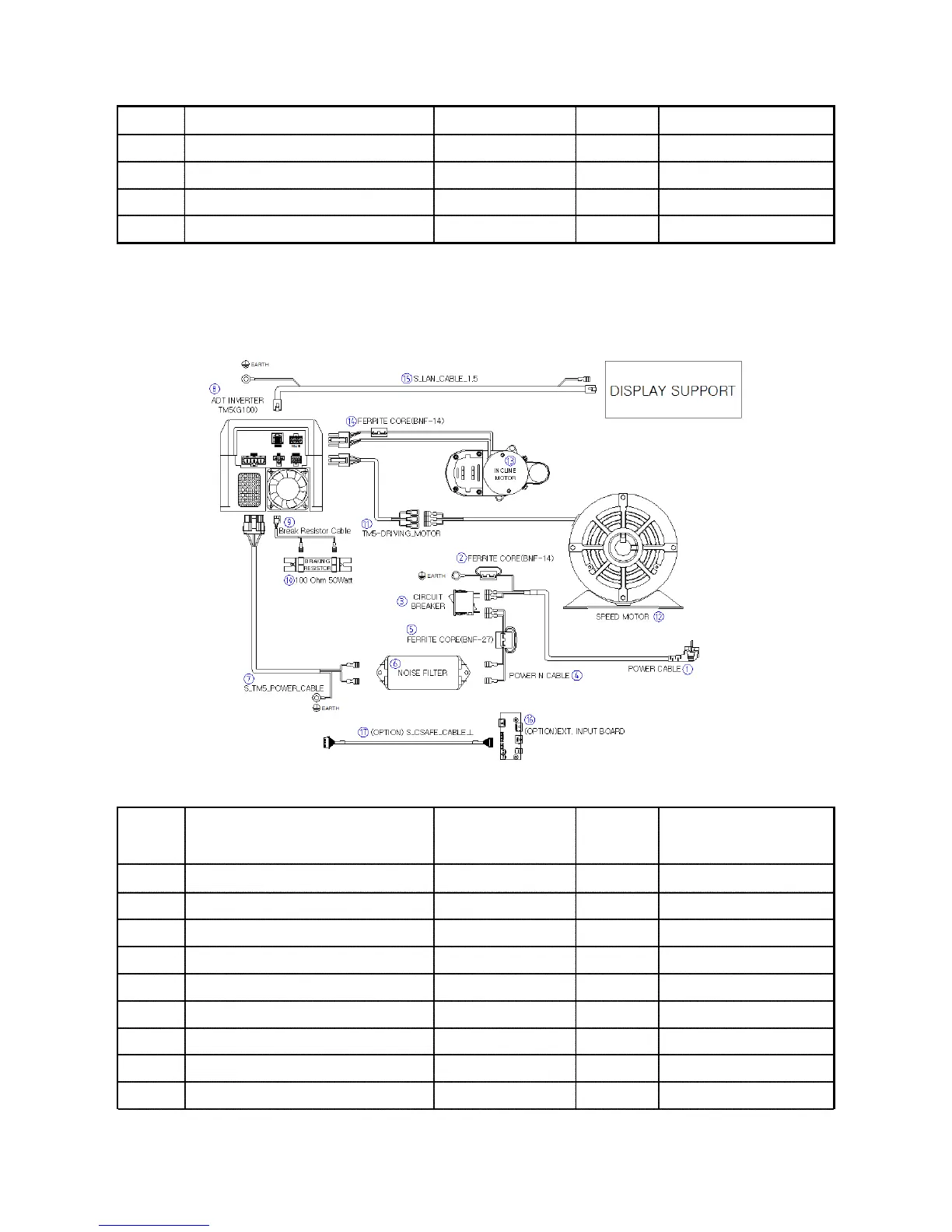

3-19-1 Main Circuit Diagram – S25T
3-19-1 Description
No Parts
Parts No. Q ’ TY Remark
1 Power cable 33S2-P0011 1 ea
2 Ferrite core (BNF-14) 32FC-TS011 1 ea
3 Circuit breaker 33S2-S0004 1 ea
4 Power N cable 33Q1-TS1F3 1 ea
5 Ferrite core (BNF-27) 32FC-TS021 1 ea
6 Noise filter 33S2-F0002 1 ea
7 S_TM5_Power cable 32Q1-TS1E2 1 ea
8 Inverter-TM5(G100) 33S2-IS201 1 ea
9 Break resistor cable 32Q1-TX0A1 1 ea
