STI SC Series - Technical Data and Identification; Technical Data; Identification Label

STI S.r.l. – Via Dei Caravaggi 15, 24040 Levate (BG) – ITALY www.imi-critical.com
Manual 5020, rev.03 07/2021 - SC/VHS 5
3 TECHNICAL DATA
DATA
Supply medium
Hydraulic fluid (see Section 8.6)
Operating temperature ranges
Standard : -20°C +100°C
Optional : -60°C +100°C
Cylinder max. available pressures (MAP)
Up to 345 bar (special version on request)
Cylinder design pressures
Up to 380 bar (special version on request)
Operating pressure range
Data are available on actuator nameplate (depending
on customer requirements and specifications.)
Max operating thrust
Data are available on actuator nameplate
Applications
On-Off
Modulating service (on request)

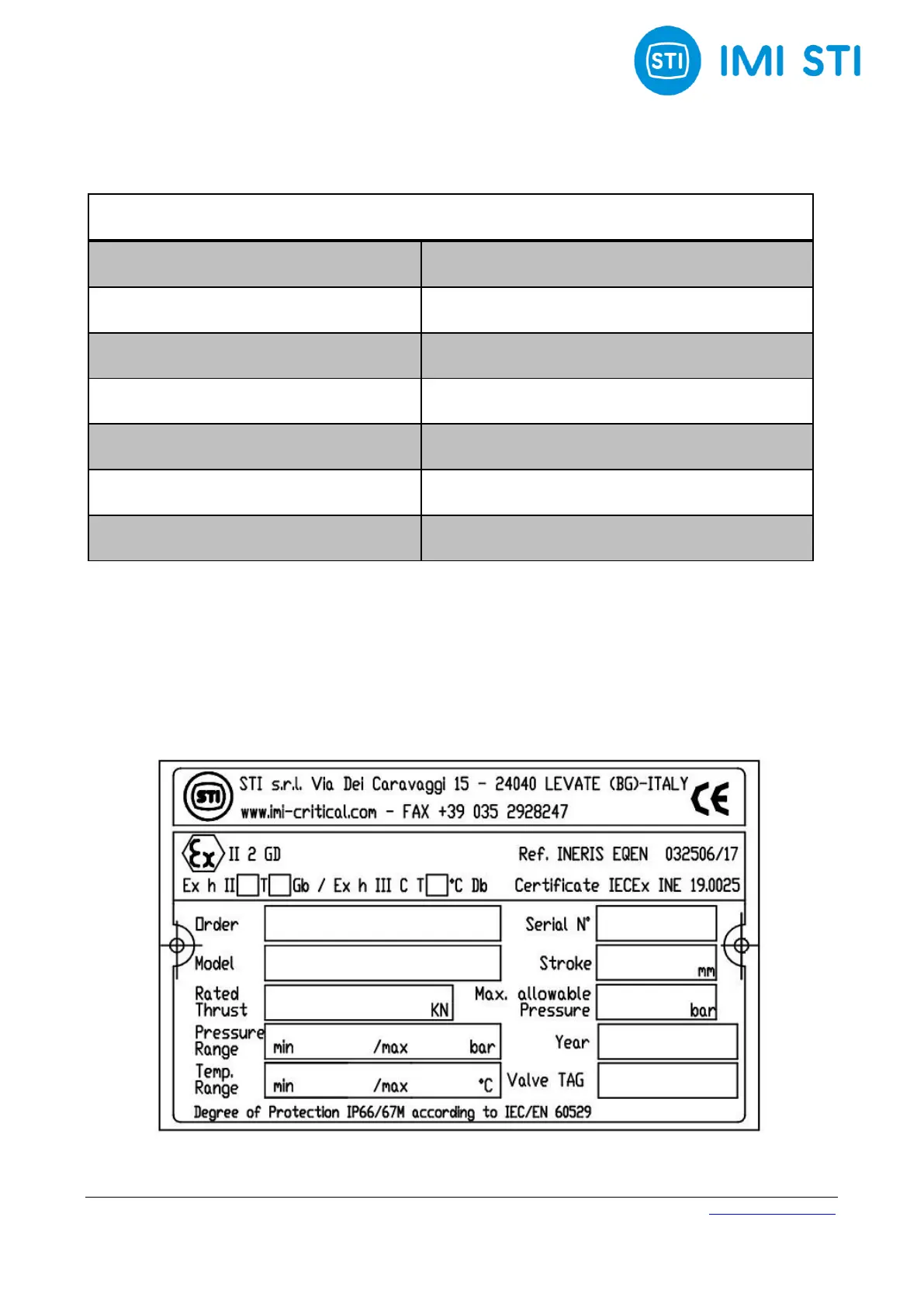

The identification label fastened on the actuator contains the main actuator operating condition.
It is forbidden to modify the information and the marks without previous written authorization by STI S.r.l.
4 IDENTIFICATION LABEL
SC/VHS actuators are suitable to be installed in classified areas Zone 1, 21 and Zone 2, 22 with the degree
of protection as marked in the identification label.
