STI SC Series User Manual

STI S.r.l. – Via Dei Caravaggi 15, 24040 Levate (BG) – ITALY www.imi-critical.com
Manual 5020, rev.03 07/2021 - SC/VHS 29

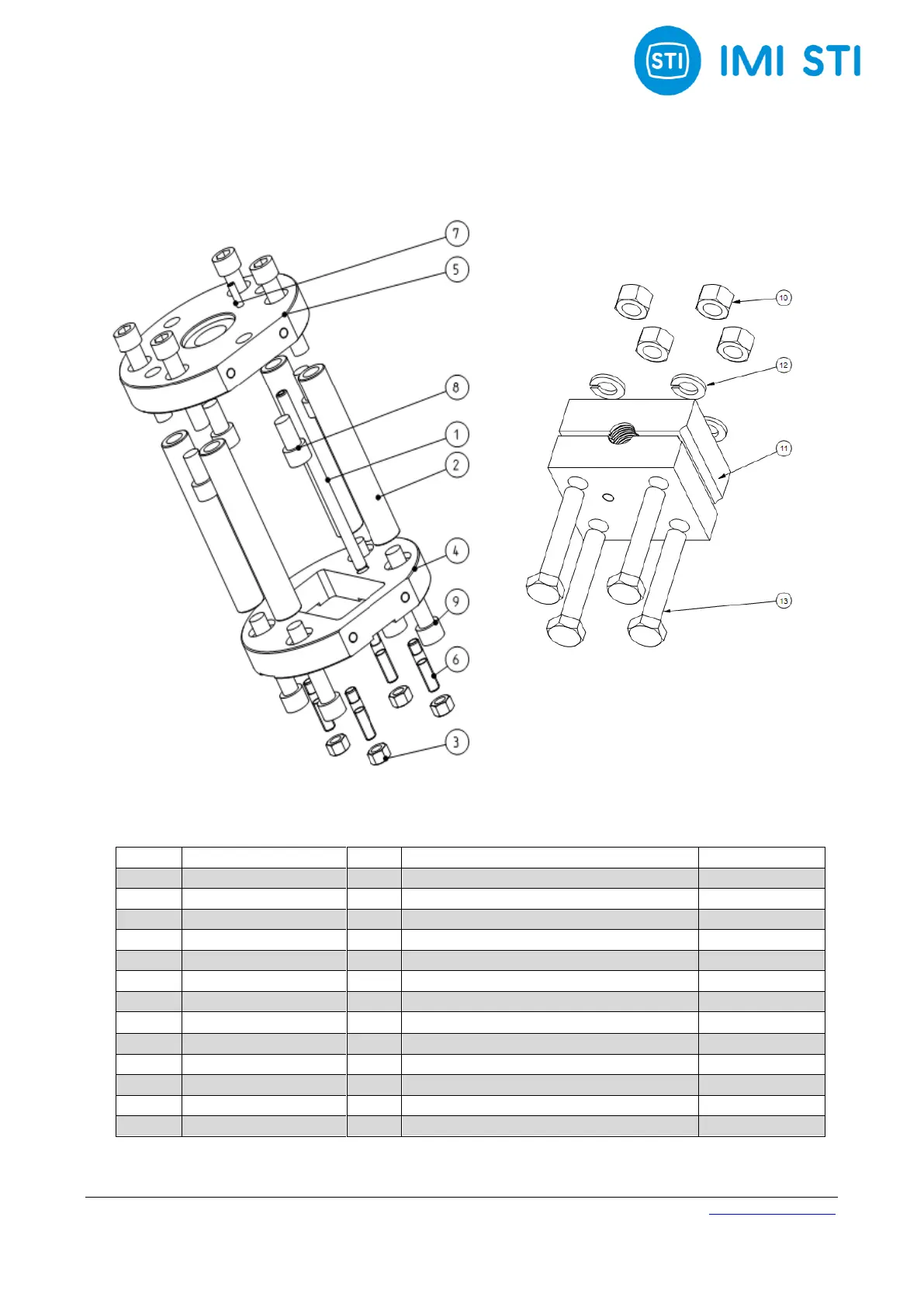

10.2 Valve adaptation assembly (optional)
Fig. 12 – Valve adaptation assembly
Valve adaptation part list
Item
Description
Qty
Material
Spare Parts
1
Antirotation bar
1
Stainless steel
2
Column
4
Carbon steel
3
Nut
4
Carbon steel
4
Lower flange
1
Carbon steel
5
Upper flange
1
Carbon steel
6
Stud bolt
4
Carbon steel
7
Screw
1
Stainless steel
8
Screw
4
Carbon steel
9
Screw
8
Carbon steel
10
Nut
4
Stainless steel
11
Valve coupling joint
1
Stainless steel
12
Washer
4
Stainless steel
13
Screw
4
Stainless steel
(*) NBR standard material for temperature range from -20°C up to +100°C.
(**) Quantity depends on the model.
Fig. 12.2
Fig. 12.1
