INSTALLATION
Installation alternatives
88 | DHE www.stiebel-eltron.com
D0000056194
1
1 Tab
13.6 Water installation on finished walls with
solder/press fittings
Note
This type of connection changes the IP rating of the ap-
pliance.
Change the type plate. Cross out "IP25" and mark
the box "IP24". Use a ballpoint pen to do this.
You can connect copper or plastic pipes with the accessories "sol-
der fitting" or "press fitting".
With "solder fitting" with threaded fitting for 12mm copper pipes,
proceed as follows:
Push the union nuts over the connection pipes.
Solder the inserts to the copper pipes.
Push the lower back panel section under the connection
pipes of the tap and push it into the back panel.
Secure the connection pipes to the tee and the 3-way ball
shut-off valve.
Note
Observe the tap manufacturer's instructions.

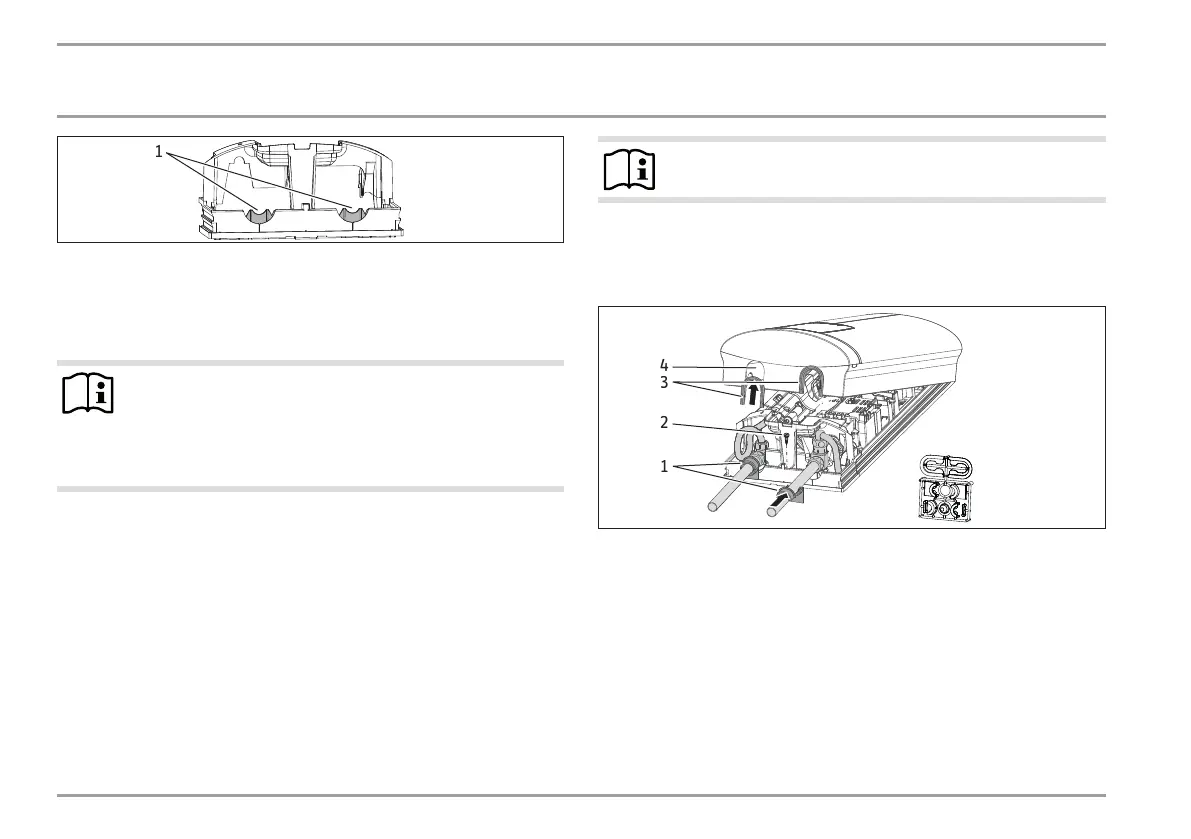

13.7 Fitting appliance cover for water installation on
finished walls
D0000073170
4
3
2
1
1 Back panel guides
2 Screw
3 Cover guides with sealing lips on the pipe side
4 Pipe knock-out
Cleanly saw and break out the pipe knock-outs in the appli-
ance cover. If necessary, use a file.
Click the cover guides into place in the knock-outs.
