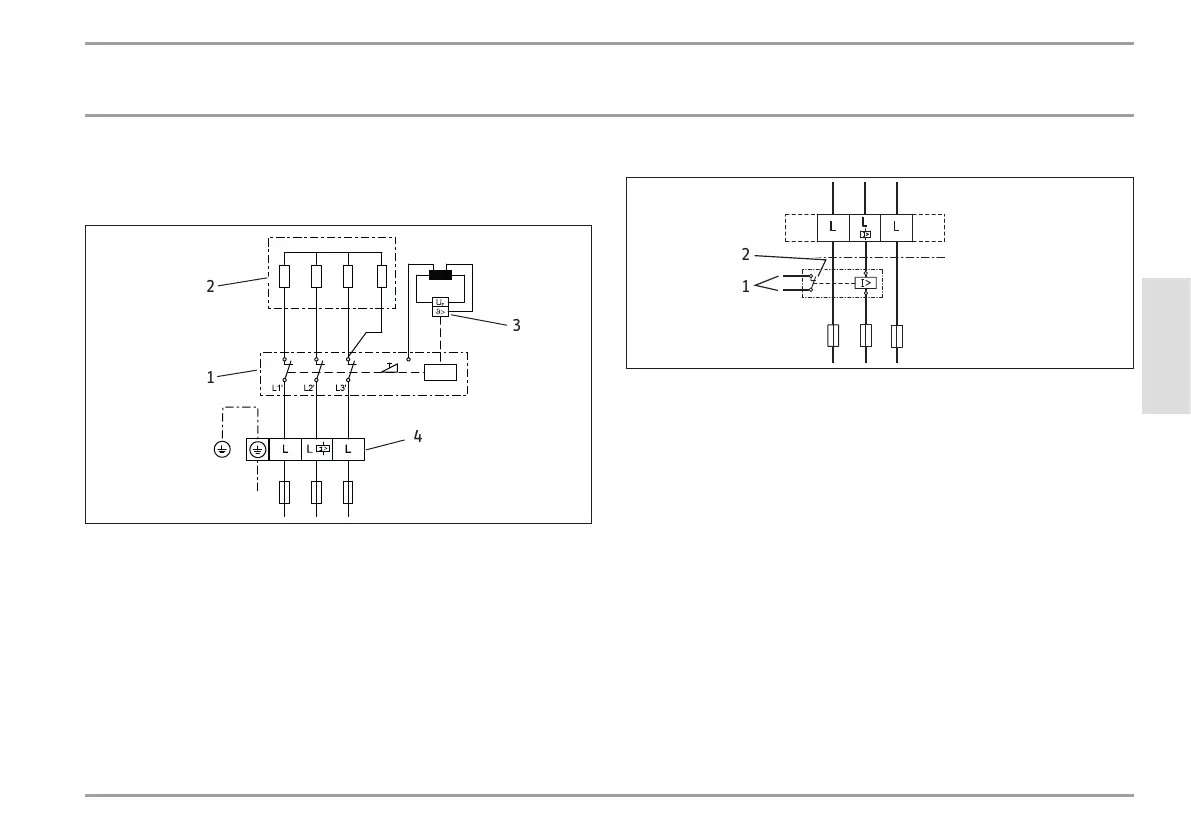

17.2 Wiring diagram
3/PE ~ 380-415V
D0000053424
1
3
4
2
1 Power PCB with integral safety switch
2 Bare wire heating system
3 High limit safety cut-out
4 Mains terminal
Priority control with LR 1-A
85�02�02�0003�
2
1
1 Control cable to the contactor of the second appliance
(e.g. electric storage heater)
2 Control contact drops out when switching the instantaneous
water heater on.

STIEBEL ELTRON DHE 18 Specifications

General

Type	Instantaneous Water Heater
Power Output	18 kW
Voltage	400 V
Control	Electronic
Protection Class	IP25
Installation	Wall-mounted
Dimensions (H x W x D)	478 x 225 x 105 mm
Phases	3/PE
Frequency	50/60 Hz
Specific water volume at Δt 30 K	8.6 l/min
Specific water volume at Δt 35 K	7.4 l/min
Specific water volume at Δt 25 K	10.3 l/min
Energy efficiency class	A
Application	Domestic
