Anti-scalding protection deactivation
Proceed as described under "Anti-scalding protection acti-
vation". Deactivate anti-scalding protection by tapping the
"Active" tick symbol (deactivate).

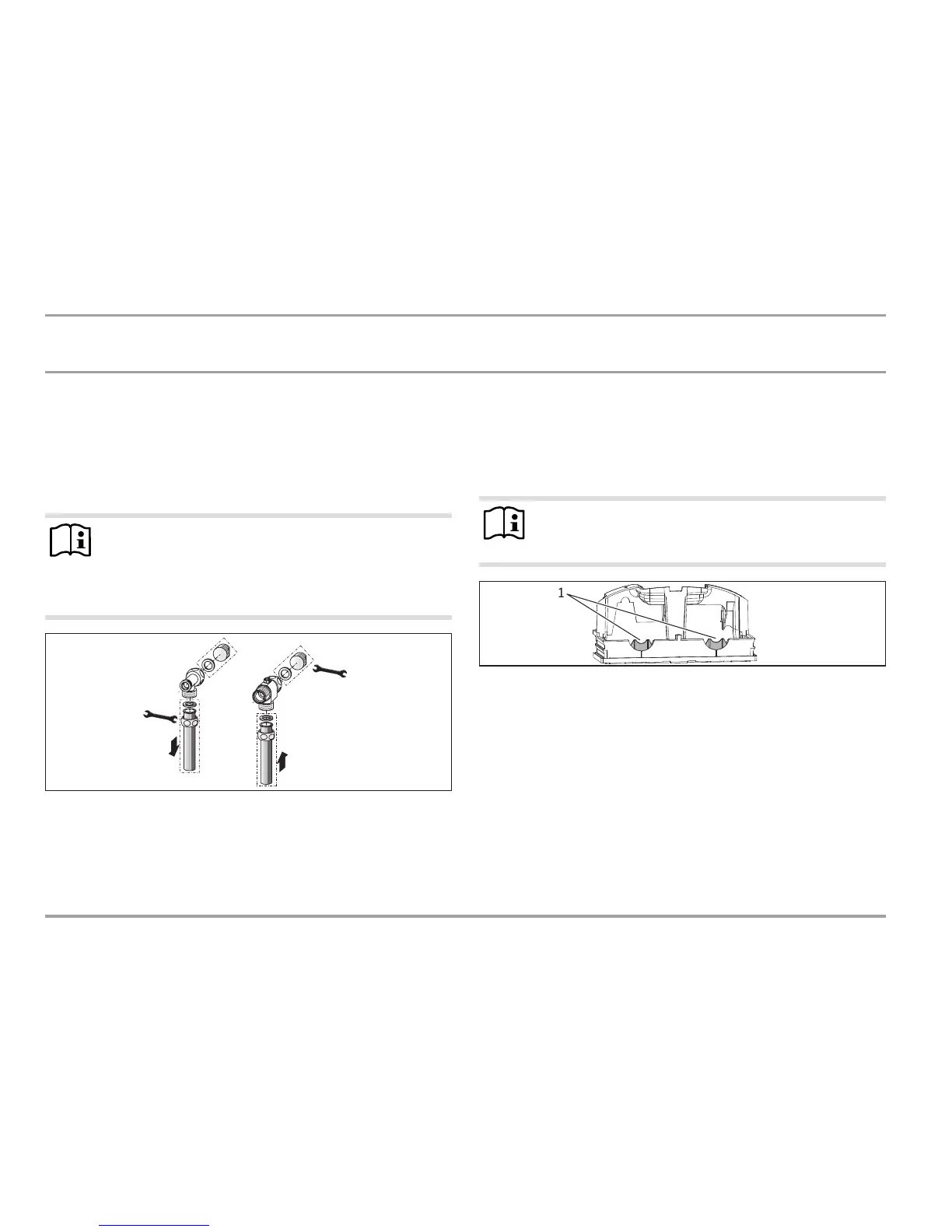

13.6 Water installation on finished walls
Note
This type of connection changes the IP rating of the ap-
pliance.
Change the type plate. Cross out "IP25" and mark
the box "IP24". Use a ballpoint pen to do this.
19
24
5 Nm
18 Nm
D0000033104
Fit water plugs with gaskets to seal the concealed connec-
tions. All taps obtained as accessories are supplied with
plugs and gaskets as standard. For pressure-tested taps
other than those recommended by us, plugs and gaskets can
be ordered as accessories.
Fit a suitable pressure tap.
Push the lower back panel section under the connecting
pipes of the tap and push it into the back panel.
Secure the connection pipes to the tee and the 3-way ball
shut-off valve.
Note
You can break off the pipe fitting tabs on the lower back
panel section if required.
D0000056194
1
1 Tab
13.7 Water installation on finished walls with
solder/compression fittings
You can connect copper or plastic pipes using the accessories
"solder fitting" or "press-fit fitting".
With "solder fitting" with threaded connection for 12 mm copper
pipes, proceed as follows:
Push the union nuts over the connection pipes.
Solder the inserts to the copper pipes.
