www.stiebel-eltron.com DHEConnect | DHETouch | 93
INSTALLATION
Installation options
Push the lower back panel section under the connecting
pipes of the tap and push it into the back panel.
Secure the connection pipes to the tee and the 3-way ball
shut-off valve.
Note
Observe the tap manufacturer's instructions.

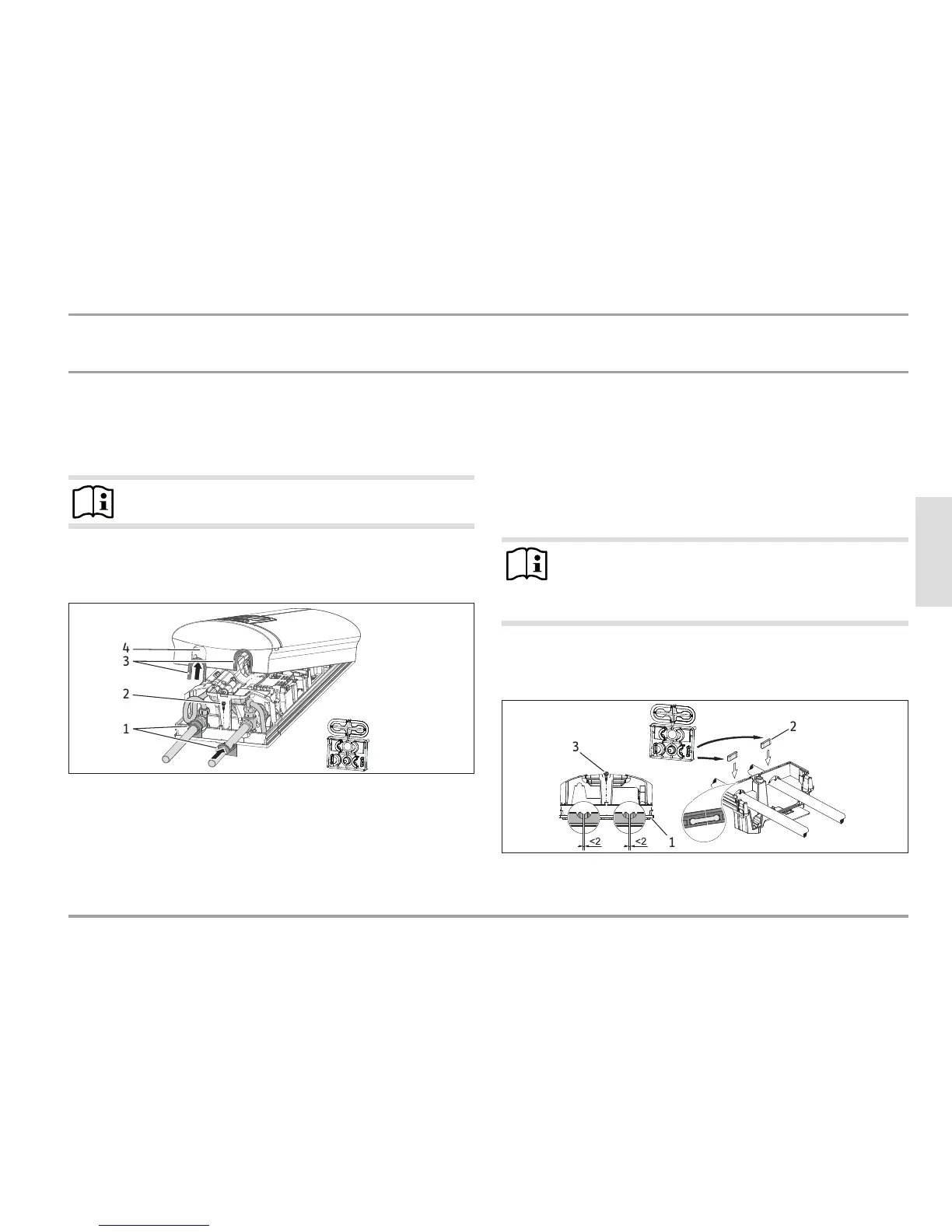

13.8 Fitting appliance cover over water installation
on finished walls
D0000053285
4
3
2
1
1 Back panel guides
2 Screw
3 Cover guide pieces with sealing lips on the pipe side
4 Pipe knock-outs
Cleanly saw and break out the pipe knock-outs in the appli-
ance cover. If necessary, use a file.
When installing the connection pipes without offset, break
off the sealing lips on the cover guide pieces.
Click the cover guides into place in the knock-outs.
Position the back panel guide pieces on the pipes. Push them
together. Then push the guide pieces against the back panel
as far they will go.
Secure the lower back panel section with a screw.
Note
Use the cover guide pieces with sealing lips if the connec-
tion pipes are slightly offset. In this case, the back panel
guide pieces are not fitted.
13.9 Installation of the lower back panel section in
the case of threaded fittings on finished walls
D0000053286
2
3
1
1 Lower back panel section
2 Connection piece as delivered
