INSTALLATION
Installation options
94 |DHEConnect | DHETouch www.stiebel-eltron.com
3 Screw
If using threaded connections on finished walls, the lower back
panel section can also be installed after fitting the taps/valves. To
do this, carry out the following steps:
 Cut open the lower section of the back panel.
 Fit the lower section of the back panel by bending it out at
the sides and guiding it over the pipes.
 Insert the connection pieces into the lower section of the
back panel from behind.
 Click the lower section of the back panel into place.
 Secure the lower back panel section with a screw.
13.10 Wall mounting bracket when replacing an
appliance
An existing STIEBELELTRON wall mounting bracket may be used
when replacing appliances (except for DHF instantaneous water
heater).
 Break through the back panel of the appliance to expose the
threaded stud on the fitted wall mounting bracket.
Replacing a DHF instantaneous water heater
26_02_02_0815_
 Reposition the threaded stud on the wall mounting bracket
(the stud has a self-tapping thread).
 Rotate the wall mounting bracket 180° and mount it on the
wall (the DHF logo is then turned towards the reader).

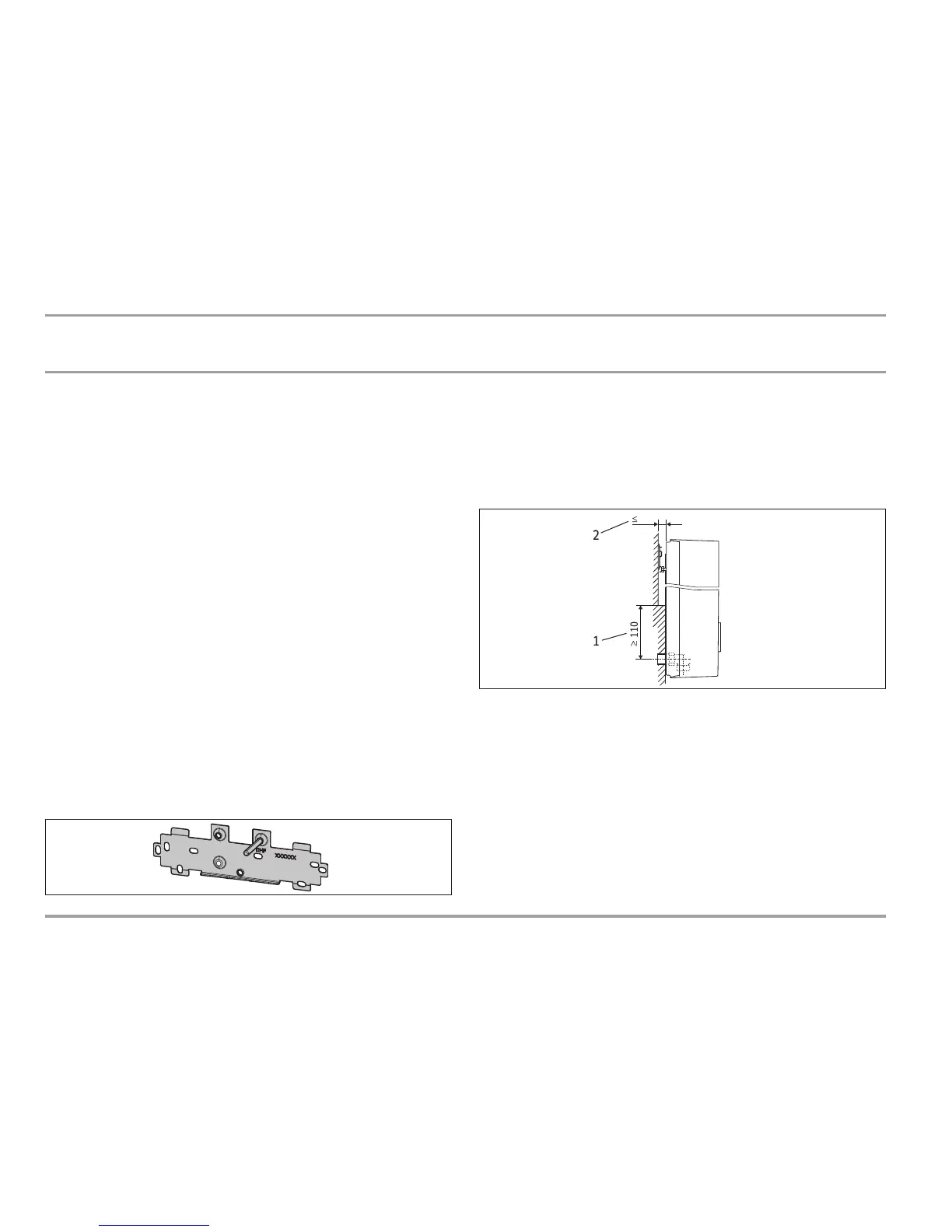

13.11 Installation with offset tiles
110
20
26_02_02_1066_
2
1
1 Minimum contact area of the appliance
2 Maximum tile offset
 Adjust the wall clearance. Lock the back panel in place using
the fixing toggle (turn 90° clockwise).
