STIEBEL ELTRON DHE Connect 18 User Manual

ENGLISH
www.stiebel-eltron.com DHEConnect | DHETouch | 103

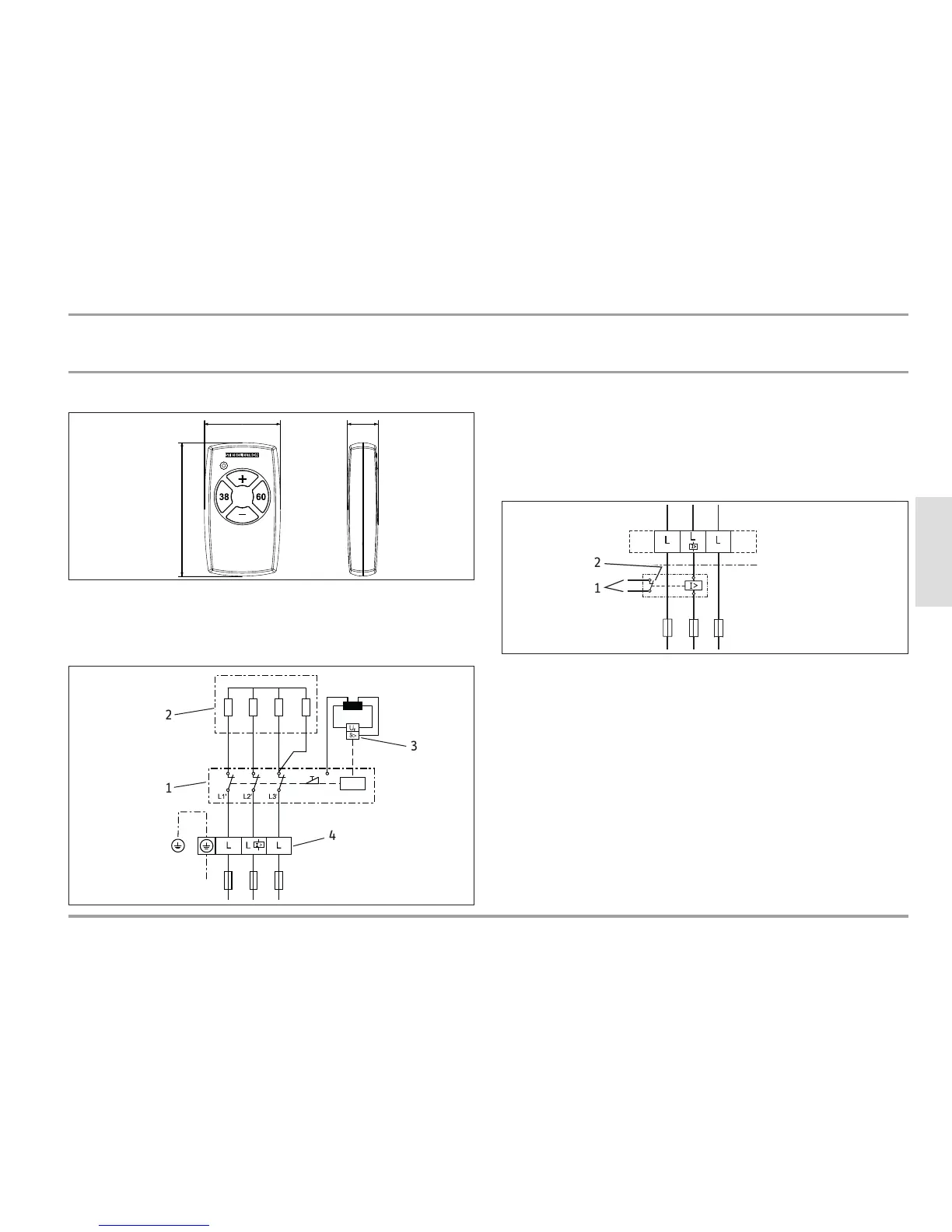

INSTALLATION
Specication
Mini wireless remote control
72
41 17
OFF 3s
D0000017658
17.2 Wiring diagram
3/PE ~ 380-415 V
D0000053424
1
3
4
2
1 Power PCB with integral safety switch
2 Bare wire heating system
3 High limit safety cut-out
4 Mains terminal
Priority control with LR 1-A
85_02_02_0003_
2
1
1 Control cable to the contactor of the second appliance (elec-
tric storage heater, for example)
2 Control contact drops out when switching the instantaneous
water heater on.

STIEBEL ELTRON DHE Connect 18 Specifications

General

Brand	STIEBEL ELTRON
Model	DHE Connect 18
Category	Water Heater
Language	English
