INSTALLATION
Power supply
16 | WPL E | WPL cool www.stiebel-eltron.com

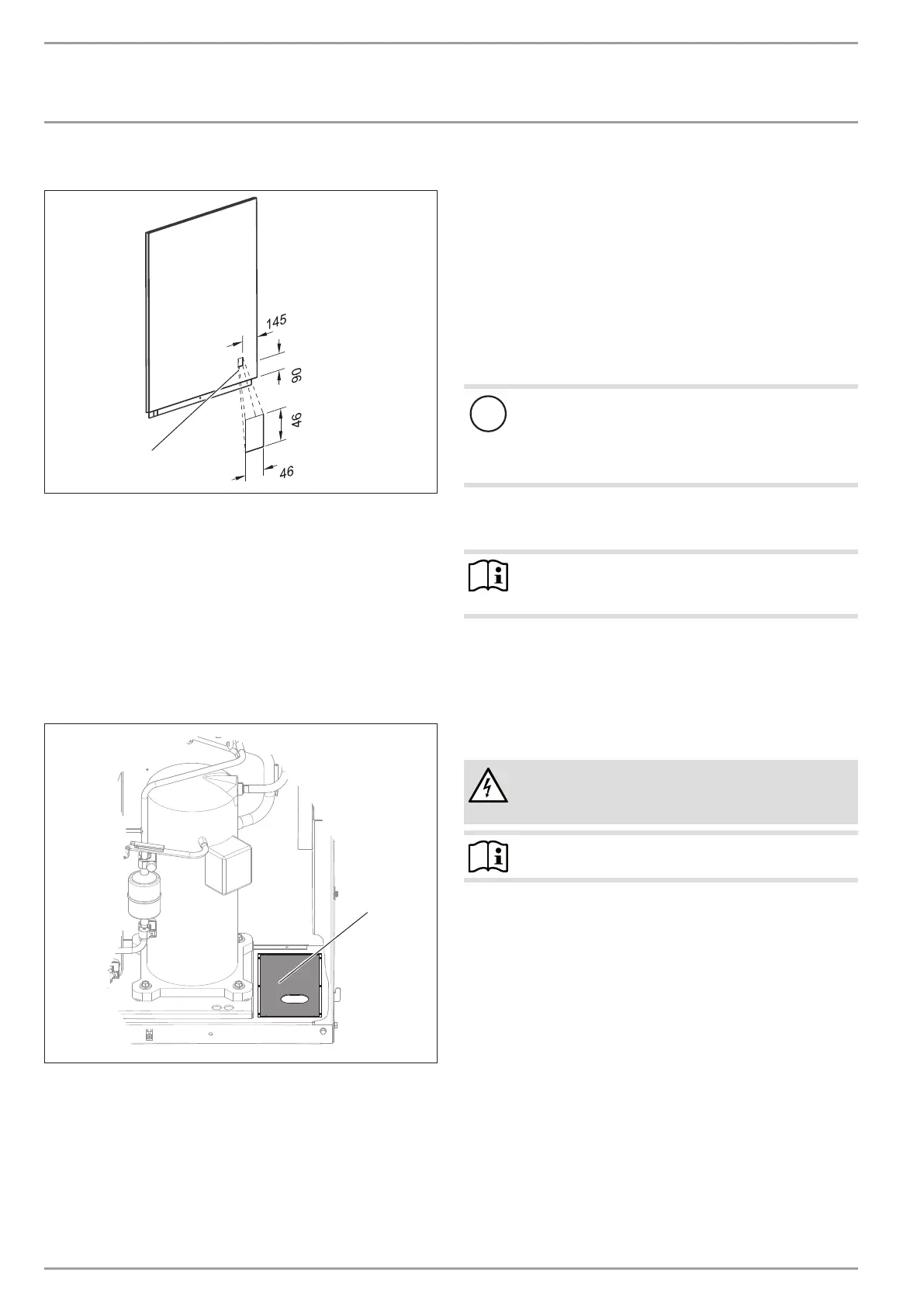

Condensate drain towards the left
26_03_01_0956
1
1 Knock-out "condensate drain outlet"
Use pliers to remove the knock-out "condensate drain outlet"
from the left-hand side panel.
Route the condensate drain hose to the left and out of the
appliance.
Route the condensate into a drain.
Condensate drain downwards
If a bottom drain is provided, you can drain the condensate down-
wards through the "supply line entry" in the bottom of the appli-
ance.
26_03_01_1728_
1
1 Knock-out "supply line entry"
Remove the knock-out "supply line entry" in the bottom of
the appliance.
Route the condensate drain hose diagonally through the
knock-out aperture "supply line entry".
Secure the condensate drain hose to ensure it does not slip
out of place.
Route the condensate into the drain in the floor.
10.8 Checking the draining of condensate
After routing the condensate drain hose, check that the condensate
can drain correctly. Proceed as follows:
Pour water onto the evaporator, which will then flow into
the defrost pan. Please note the maximum condensate drain
capacity of 6l/min.
Check whether the water is draining off through the conden-
sate drain hose.
10.9 High limit safety cut-out for underfloor heating
systems
!
Material losses
In order to prevent excessively high flow temperatures
in the underfloor heating system causing damage in the
event of a fault, we always recommend using a high limit
safety cut-out to limit the system temperature.
11. Power supply
Note
Please observe the heat pump manager operating and
installation instructions.
The connection must only be carried out by a qualified contractor
and in accordance with these instructions.
You must have permission to connect the appliance from the rel-
evant power supply utility.
11.1 Control panel
WARNING Electrocution
Before working on the appliance, isolate it from the
power supply at the control panel.
Note
The terminals are located in the appliance control panel.
145
~J
~:,
---.~
\\
1\
\\
1\
'(riJ~
J1.-
46
0
