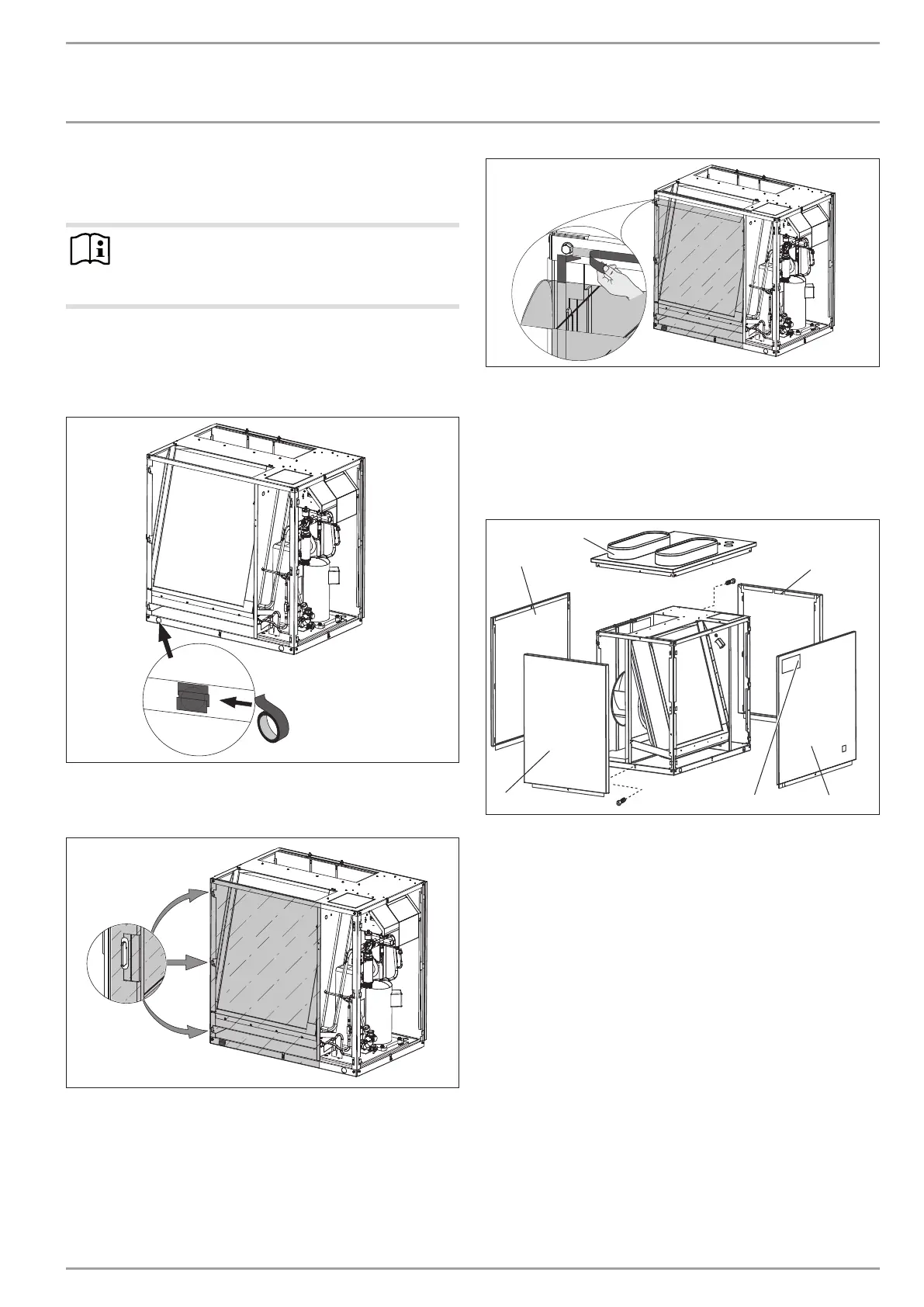

INSTALLATION
Fitting casing components
www.stiebel-eltron.com WPL E | WPL cool | 19
12.2 Indoor installation
12.2.1 Sealing the appliance
Note
If you want to prevent negative pressure in the instal-
lation room, you can seal the appliance by affixing the
plastic screen provided.
Before fitting the casing sections, seal the appliance by affixing
a plastic film; this will prevent condensation forming under all
operating conditions.
The plastic film is supplied with the casing sections.
26_03_01_1456
Apply fabric tape to seal the hole at the bottom of the frame
on the left-hand side. The fabric tape is supplied with the ac-
cessory "thermally insulated air hose".
26_03_01_1454
Hang the plastic screen with the pre-cut holes onto the hooks
on the appliance.
26_03_01_1455
Remove the backing from the adhesive strips on the frame
and on the plastic screen.
Secure the plastic screen by pressing it onto the standard
appliance.
Seal the gaps around the hooks with fabric tape.
12.2.2 Fitting casing components
2
1
3
1
5
4
26_03_01_1443
1 Side panel
2 Cover
3 Front panel
4 Type plate
5 Back panel
Place the cover on the appliance and secure with two screws.
Hook the side panels, front panel and back panel into the
hooks on the standard appliance. Secure the casing compo-
nents with one screw each.
Affix the type plate supplied in a highly visible position on
one of the appliance casing panels.
