9. Reinstall original hardware on each side
of discharge chute assembly. Install
spacer in upper hole and washer in lower
hole between mounting brackets. See
Figure 6.
10. Remove two eccentric spacers, two
round head square neck bolts and two
locking nuts from hardware bag.
11. Rotate steering levers to operating
position and install eccentric spacer
between steering lever plates. Secure
with hardware. See Figure 7.
12. Adjust steering levers. See Adjust
Steering Levers on page 25.
13. Check tyre pressures and inflate to
recommendation. See Check Tyre
Pressure on page 20. See Specifications
on page 39.
14. Make sure deck is level. See Level and
Pitch Mower Deck on page 33.
15. Ensure all hardware is tight.

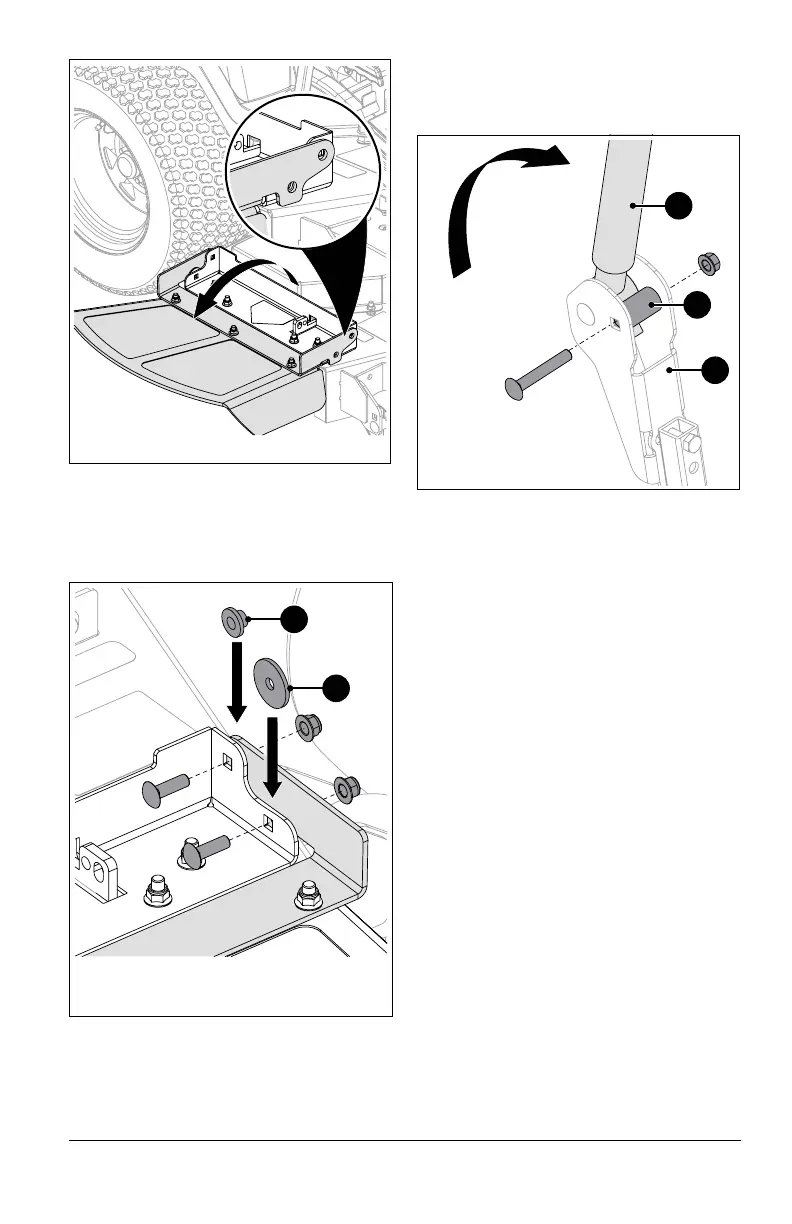

Figure 6
1. Washer
2. Spacer
1
2
Figure 7
1. Eccentric Spacer
2. Steering Lever
3. Steering Lever Plate
1
2
3
