EN - 28

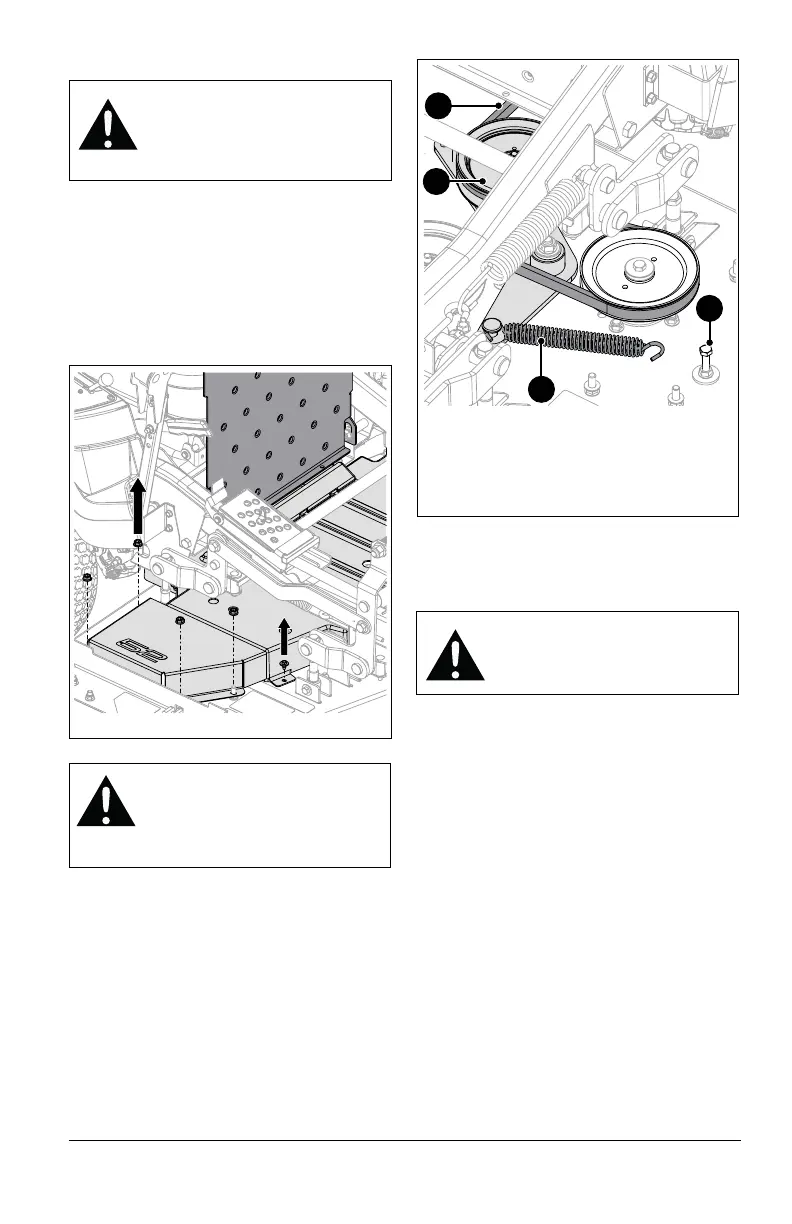

REPLACE MOWER BELTS
Remove PTO Belt
1. Place unit in service position. See
Service Position on page 18.
2. Position mower deck at lowest cutting
height.
3. Remove hardware securing belt covers to
deck and remove belt covers. See
Figure 35.
See Figure 36.
4. Slowly remove spring hook from anchor
bolt to release tension from belt idler.
5. Remove PTO belt.
Remove Mower Drive Belt
1. Remove PTO belt. See Remove PTO
Belt on page 28.
See Figure 37.
2. Slowly remove spring hook from anchor
bolt to release tension from belt idler.
3. Remove mower drive belt.
CAUTION: Damage or worn
belts may result in injury and / or
damage to the unit. Check belts
for excessive wear or cracks of-
ten.
CAUTION: Use care when
releasing idler spring tension.
Keep body parts away from
idlers when performing this
operation.
CAUTION: Use care when re-
leasing idler spring tension. Keep
body parts away from idlers
when performing this operation.
Figure 36
1. Spring
2. Anchor Bolt
3. PTO Belt
4. PTO Belt Idler
1
4
3
2
