IMPORTANT: Make sure belt has tension and
is aligned in all pulleys. See Figure 44.
4. Reinstall clutch stop bracket and secure
with original hardware. See Figure 45.
5. Reinstall PTO belt. See Install PTO Belt
on page 29.
REVERSE CLUTCH BRAKE
PLATES
See Figure 46.
1. Remove hardware securing brake plates
to clutch bracket. Retain for reinstallation.
2. Reverse the brake plates and secure to
clutch bracket using original hardware.

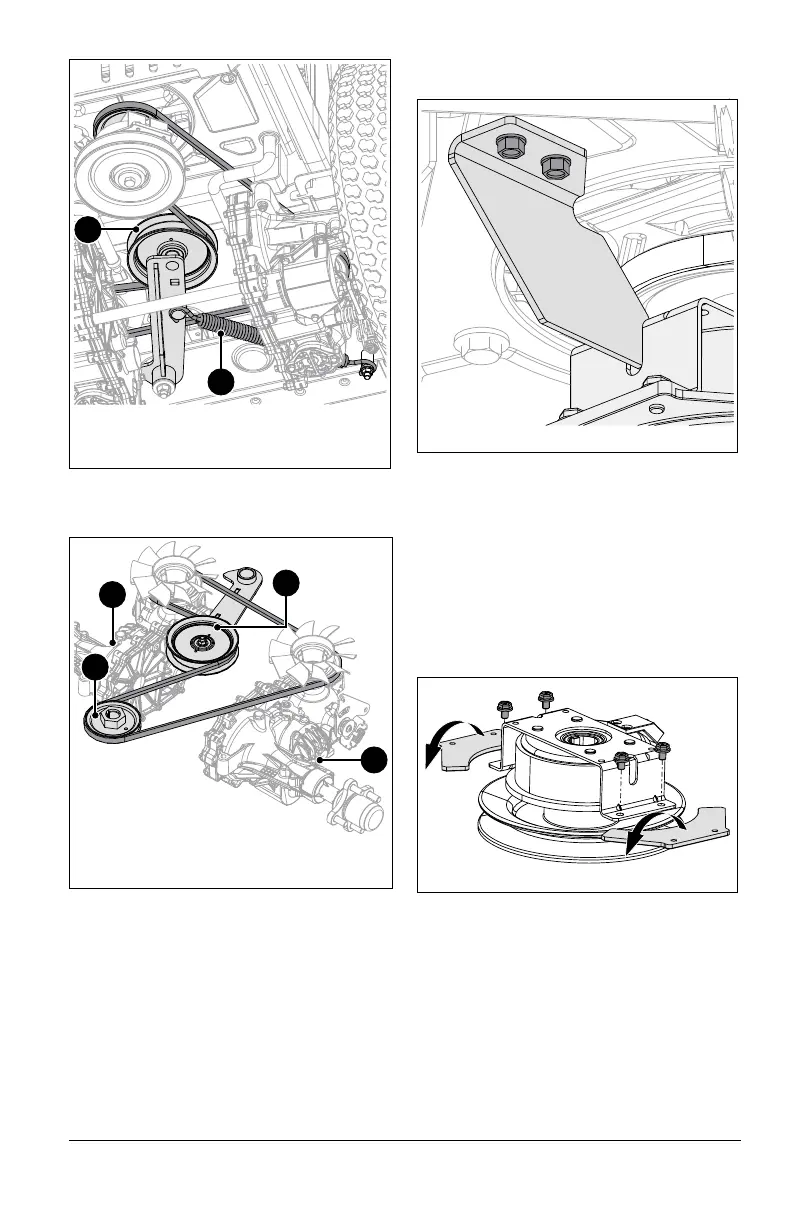

Figure 43
1. Spring
2. Idler Pulley
1
2
Figure 44
1. Engine Sheave
2. Idler Pulley
3. Left Transaxle
4. Right Transaxle
1
2
3
4
Figure 45
Figure 46
