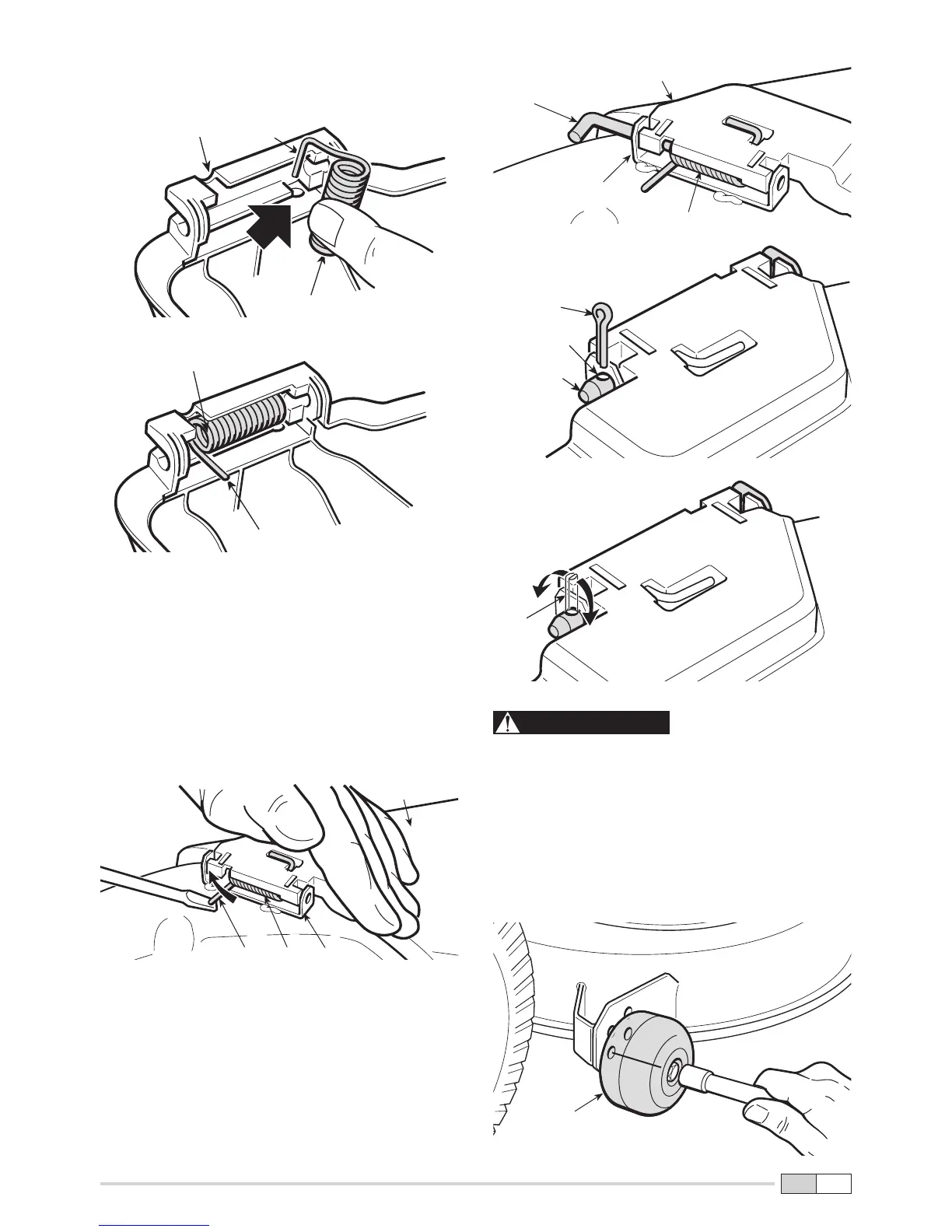

3.5 FITTING THE SIDE DISCHARGE CHUTE
From the inside of the chute (1), fit the spring (2)
by inserting the terminal (2a) into the hole and
turning it so that both the spring(2) and the termi-
nal (2a) are securely positioned in their seatings.
Position the chute (1) in line with the cutting
deck brackets (3). Using a screwdriver, turn the
second terminal (2b) of the spring (2) to bring it
outside the chute.
Fit the pin (4) in the holes on the brackets (3)
and on the chute, so that it passes through the
coils of the spring (2) and the drilled end comes
out of the inner most bracket.
Fit the cotter pin (5) in the hole (4a) of the pin
(4) and turn the pin until the two ends (5a) of
the split pin can be bend (using pliers), so that it
cannot slip out and let the pin fall out (4).
WARNING!
Check that the spring
works correctly and keep the chute se-
curely lowered. Make sure that the pin is
fitted properly to prevent it from falling out
accidentally.
3.6 REPOSITIONING THE ANTI-CHIPPING
WHEELS
For transport reasons, the anti-chipping wheels
(1) are fastened on the top hole.
