12

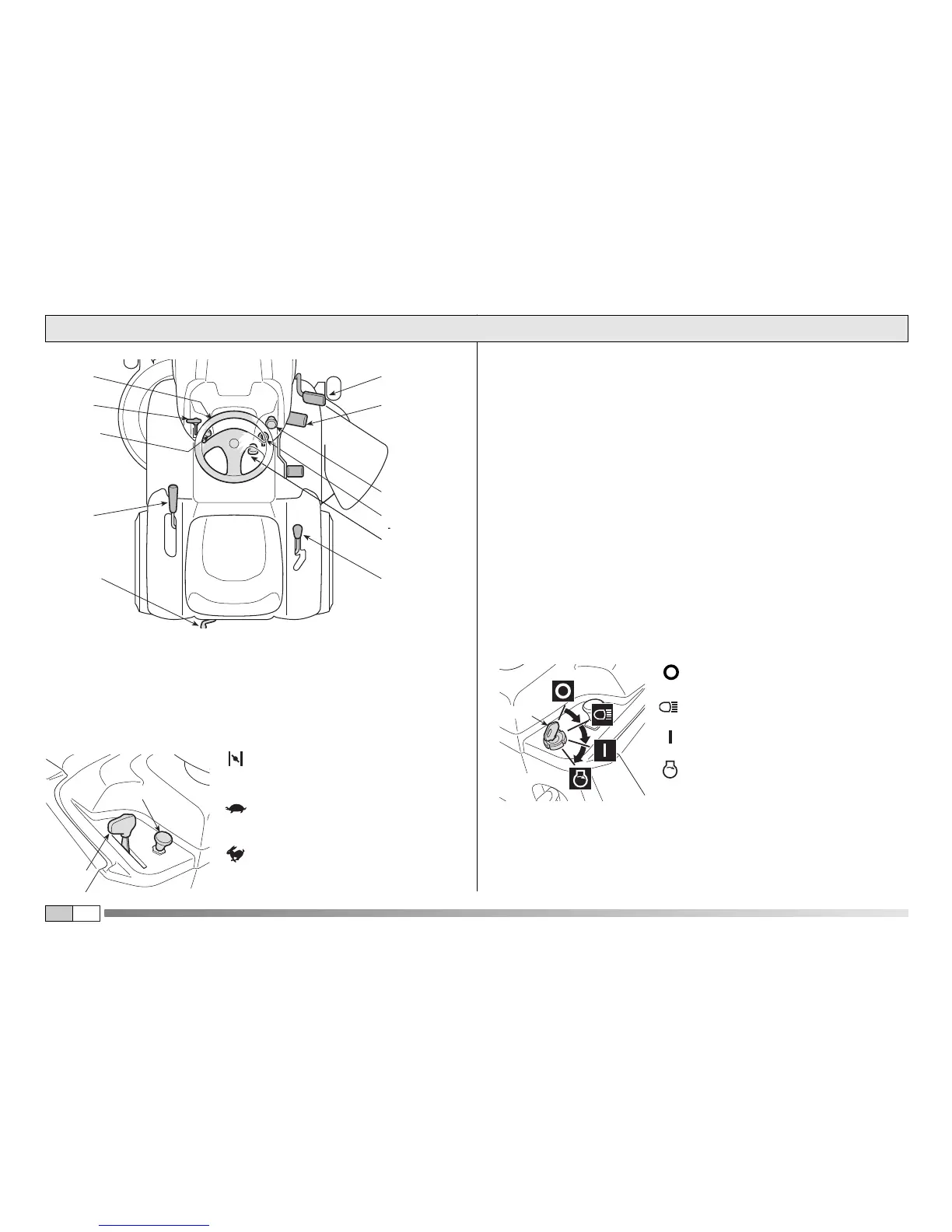

4.1 STEERING WHEEL
Turns the front wheels.
4.2 THROTTLE
This regulates the engine's r.p.m. The positions are indicated
on a plate showing the following symbols:
«CHOKE» cold starting
«SLOW» for minimum engine
speed
«FAST» for maximum engine
speed
– The «CHOKE» position enriches the mixture so must only be
used for the time necessary when starting from cold.
– When moving from one area to another, put the lever in a
position between «SLOW» and «FAST».
– When cutting, shift into «FAST».
4.2a CHOKE CONTROL (if fitted)
It enriches the mixture and must only be used for the neces-
sary time for cold starting.
4.3 KEY IGNITION SWITCH
This key operated control has four positions:
«OFF» everything is switched off;
«HEADLIGHTS ON» (if fitted);
«ON» activates all parts;
«START» connects the starter
motor.
– If you release the key on «START», it will automatically return
to «ON».
– After turning the engine on, turn the lights on (if fitted) by
EN
4. CONTROLS AND INSTRUMENTS
4.21-4.31
4.31
4.3
1
4.22
4.1
4.2
4.6
4.32
4.4
4.2a
4.5
4.2
4.2a
4.3
