WORKSHOP MANUAL
T...102/122 - TC...102/122
Map of functional units
On reassembly, ensure that the belt is positioned per-
fectly in line with respect to the pins and rims.
When it has been reassembled, it is a good idea to ….
Check the blade engagement adjustment.

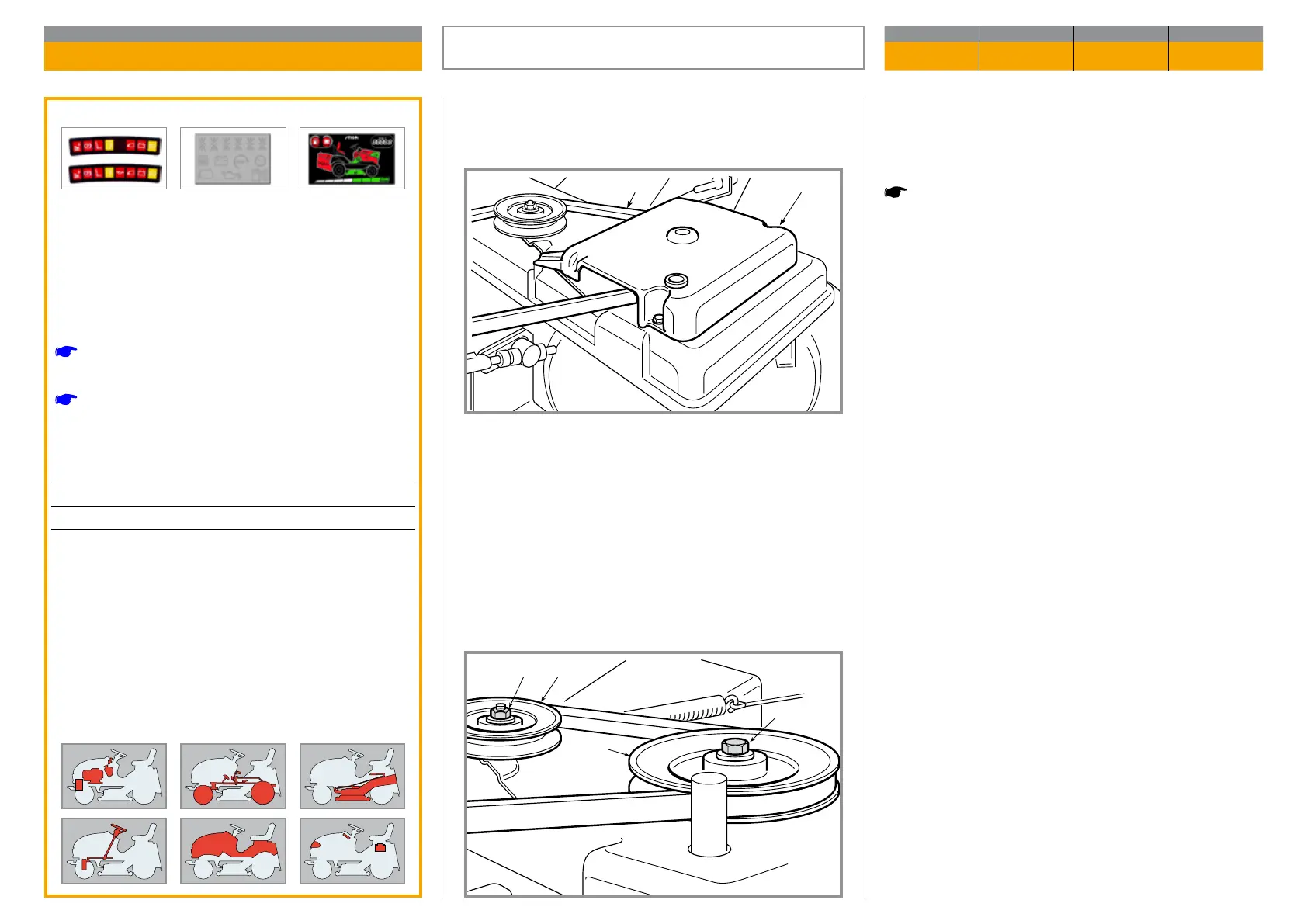

Tug at a section of the belt (2) to free it from the pulley.
Set the cutting deck to the lowest position to obtain
greater access, then dismantle the upper casing (4)
and almost totally undo the nut (5) without dismantling
the jockey pulley (6) so that the belt can be re moved.
Keeping the blade locked, undo the screw (9) and dis-
mantle the control pulley (8) to remove the belt.
Validity
General informations
Related topics
[
4.1] Adjusting the engagement and checking
the blade brake
[
8.2] Belts assembly
Tightening torques
5 Nut for idle pulley ........................... 20 ÷ 25 Nm
9 Screw for pulley ............................. 20 ÷ 25 Nm
REPLACEMENT OF THE BLADES
CONTROL BELT
CHAPTER REVISION FROM ... PAGE
6.6 0 2018 1 of 1
