Stiga T 102 Series

WORKSHOP MANUAL
T...102/122 - TC...102/122
Map of functional units
When assembly is completed ...
Ret the dashboard.
Remove the dashboard.

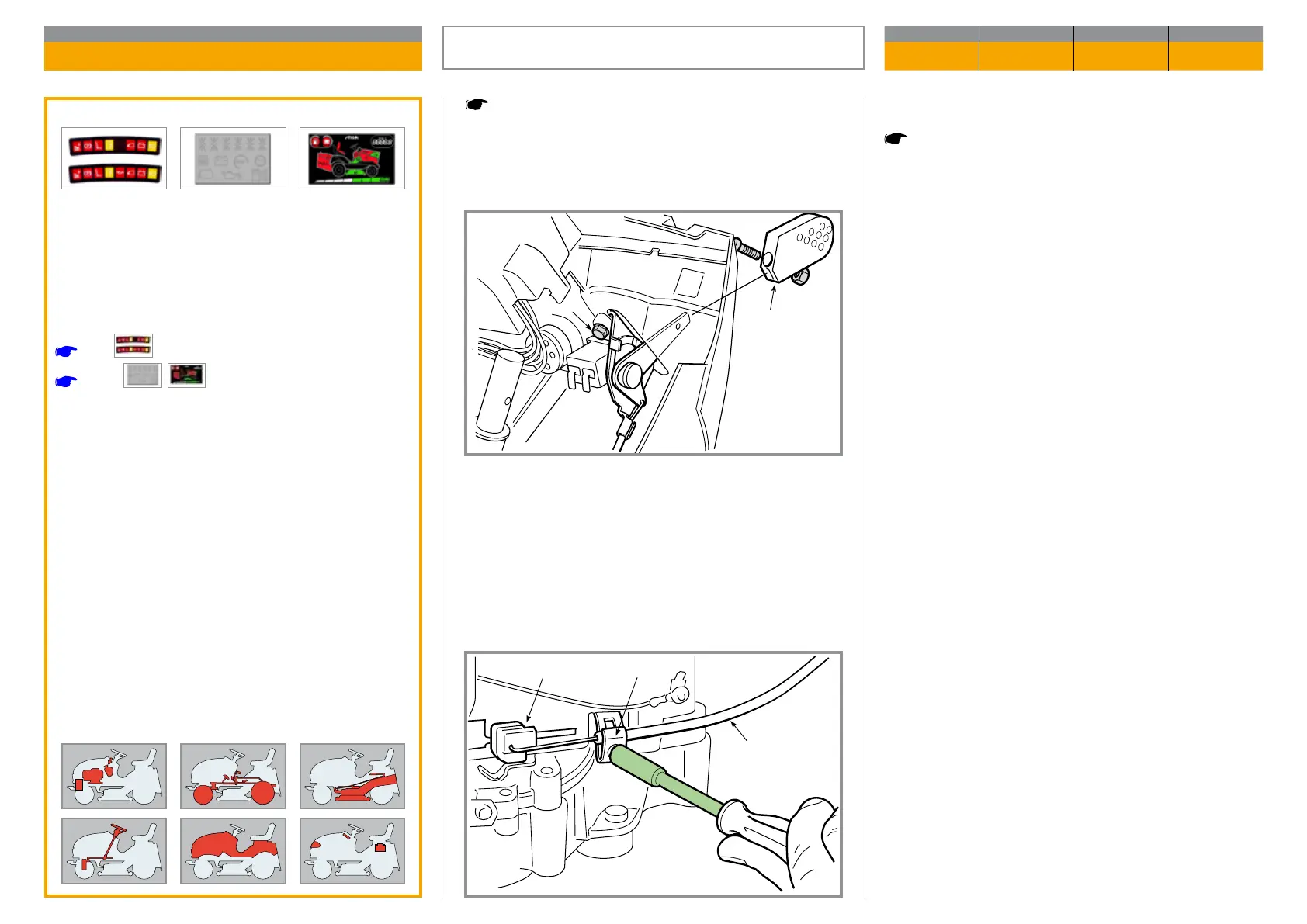

Take o the knob (1) and disconnect the cable (2)
from the connection terminal (3) on the engine.
Undo the two xing screws (4) and take out the ac ce-
lerator together with the wire.
On reassembling, put the accelerator lever in the
«MI NIMUM» position, connect the end of the cable
(2) to the terminal (3) on the engine after having mo-
ved the cursor (5) in the same «MINIMUM» position
specic to each type of engine and shown in the in-
struc tion booklet.
Validity
General informations

Related topics
[
5.4] Removal of the dashboard
[
5.4a] Removal of the dashboard
REPLACEMENT OF THE ACCELERATOR AND
ADJUSTMENT OF THE CARBURETTOR
CHAPTER REVISION FROM ... PAGE
6.9 0 2018 1 of 1

 


