WORKSHOP MANUAL
T...102/122 - TC...102/122
When retting the
spring (2), make sure
that it is con nected to
the hole provided for
each model.
Finally, when reassembly is complete, it is advisable
to …

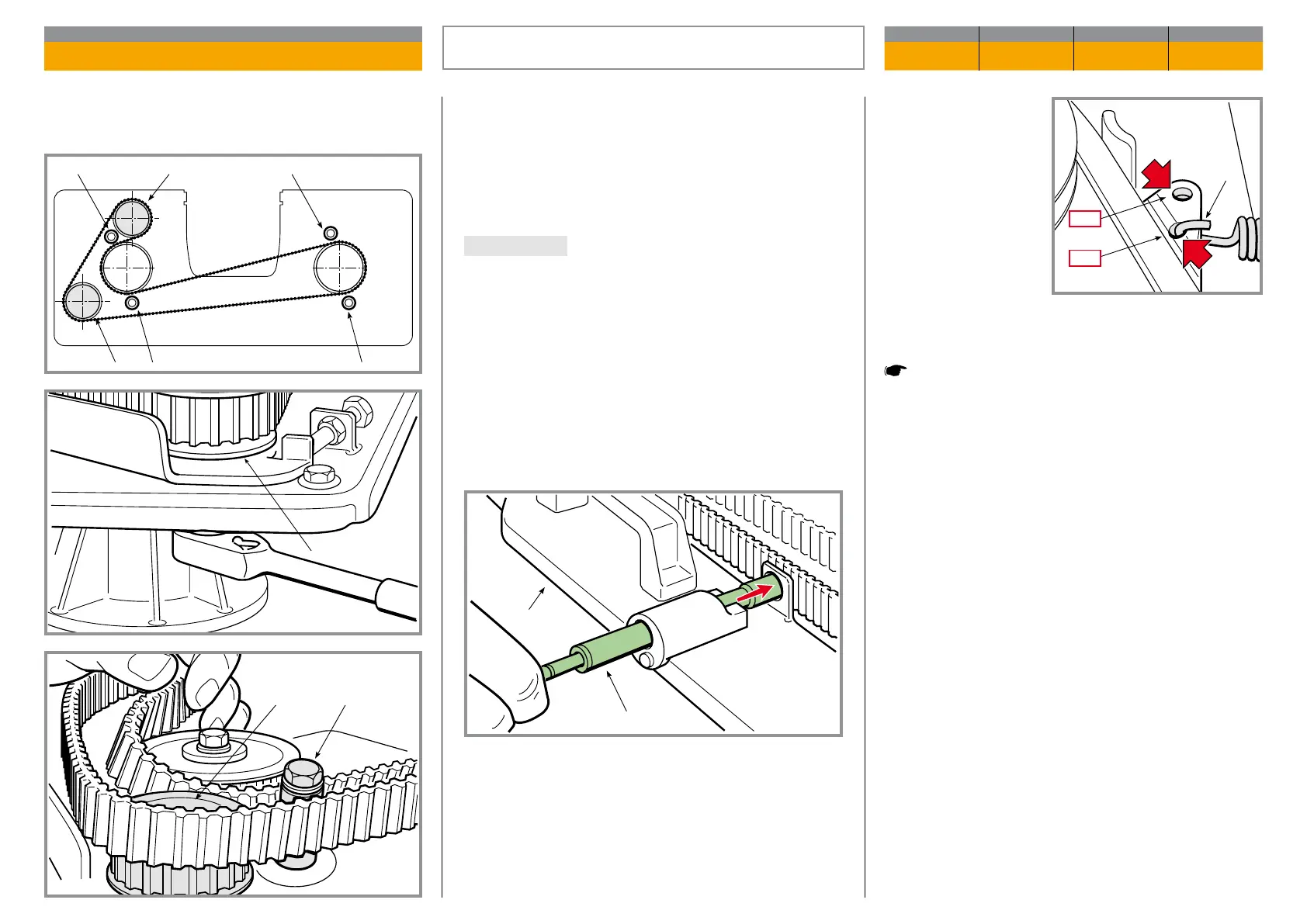

Check the adjustment of the blades engagement.
Ret everything by reversing the operations de scri-
bed above. Reset the adjuster reading recorded pre-
viously and check that the blades are at 90° to each
other before locking the pin (11) and pulleys (13) and
(14).
IMPORTANT On reassembly, check that the washer
under the pin (11) is not damaged and that the outer
pin rol lers run freely.
Use the specic tool (15) to check the piston (16) for
the belt give values and the force applied, and use the
stretcher until a give of 9 ÷ 10 mm is ob tai ned, exert-
ing a force of:
– 3,5 kg mod. 102
– 4,2 kg mod. 122
Reassemble the casing, stretcher and blades control
belt, taking care over their exact positioning with re-
spect to the pins and containment guides.
Fit the new belt so that, when the two long sections
are held taut, the two blades are at 90° to each other.
REPLACEMENT OF THE
BLADES CONNECTION BELT
CHAPTER REVISION FROM ... PAGE
6.7 0 2018 2 of 2
