WORKSHOP MANUAL
TC 108 SD - TC 118 SD

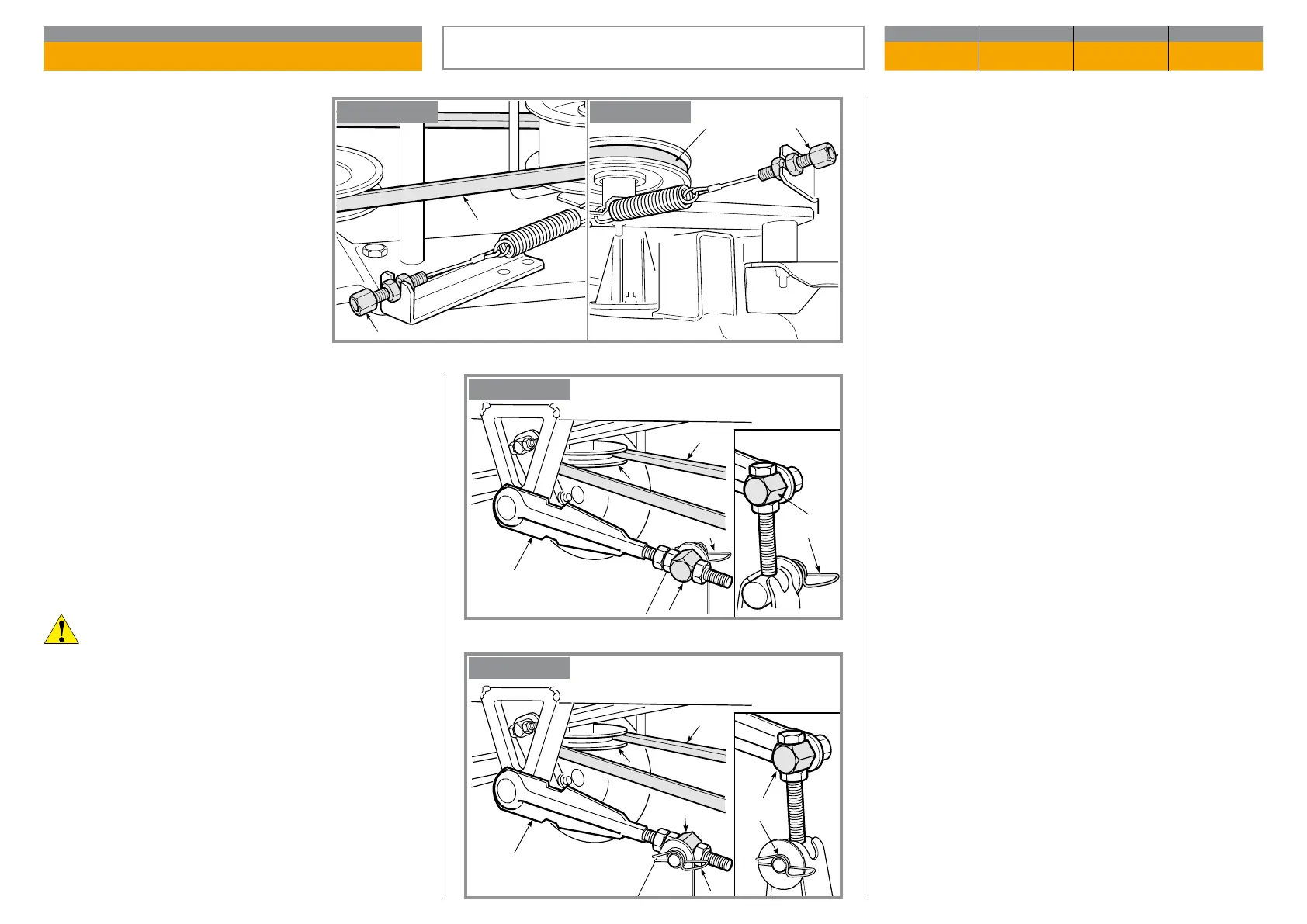

Loosen and release the screw adjuster
(5) to loosen the blade control belt (6)
and free it from the pulley of the clutch
(7).
Remove the two split-pins (8) of the two pins (9) of the
front connec ting rods (10).
Remove the two split-pins (10) of the rear pins and
then, having checked that there are no obstructions,
the deck can be removed by extracting it in such a
way that all the pins leave their housings.
Repeat the above operations in reverse for re as sem-
bly.
Always reassemble the internal (3-4) and
external (1-2) side safety guards.
REMOVAL OF THE CUTTING DECK
CHAPTER REVISION FROM ... PAGE
5.6 0 2018 2 of 2
TC 108 SD TC 118 SD
TC 108 SD
TC 118 SD
