Stiga TC 108 SD - Front Hood Removal

WORKSHOP MANUAL
Map of functional units
TC 108 SD - TC 118 SD

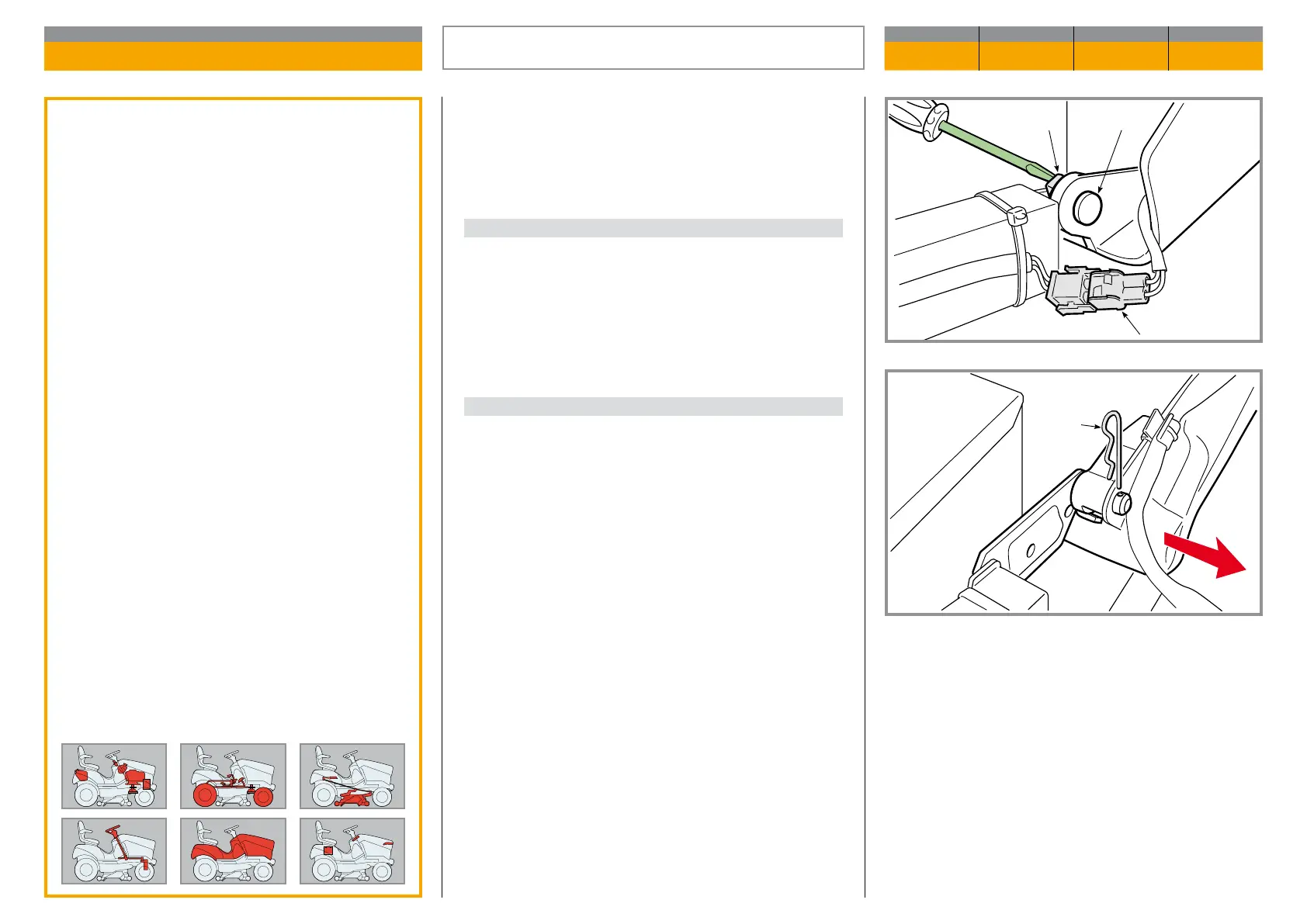

To remove the hood, disconnect the connector to the
lights (1).
The hood can be secured in two ways.
A) Fixing with springs
Unhook the two fastener springs (2) and pull out the
pins (3).
B) Fixing with a cotter pin
Take out the cotter pin (4) from the right-hand side and
remove the hood by moving it to the right.
REMOVAL OF FRONT HOOD
CHAPTER REVISION FROM ... PAGE
5.1 0 2018 1 of 1
General informations
The removal of the front hood gives greater ac
ces sibility to:
– the engine and its accessories
– the silencer and protection devices
