Stiga TC 108 SD - Safety Device Intervention

WORKSHOP MANUAL
Map of functional units
TC 108 SD - TC 118 SD

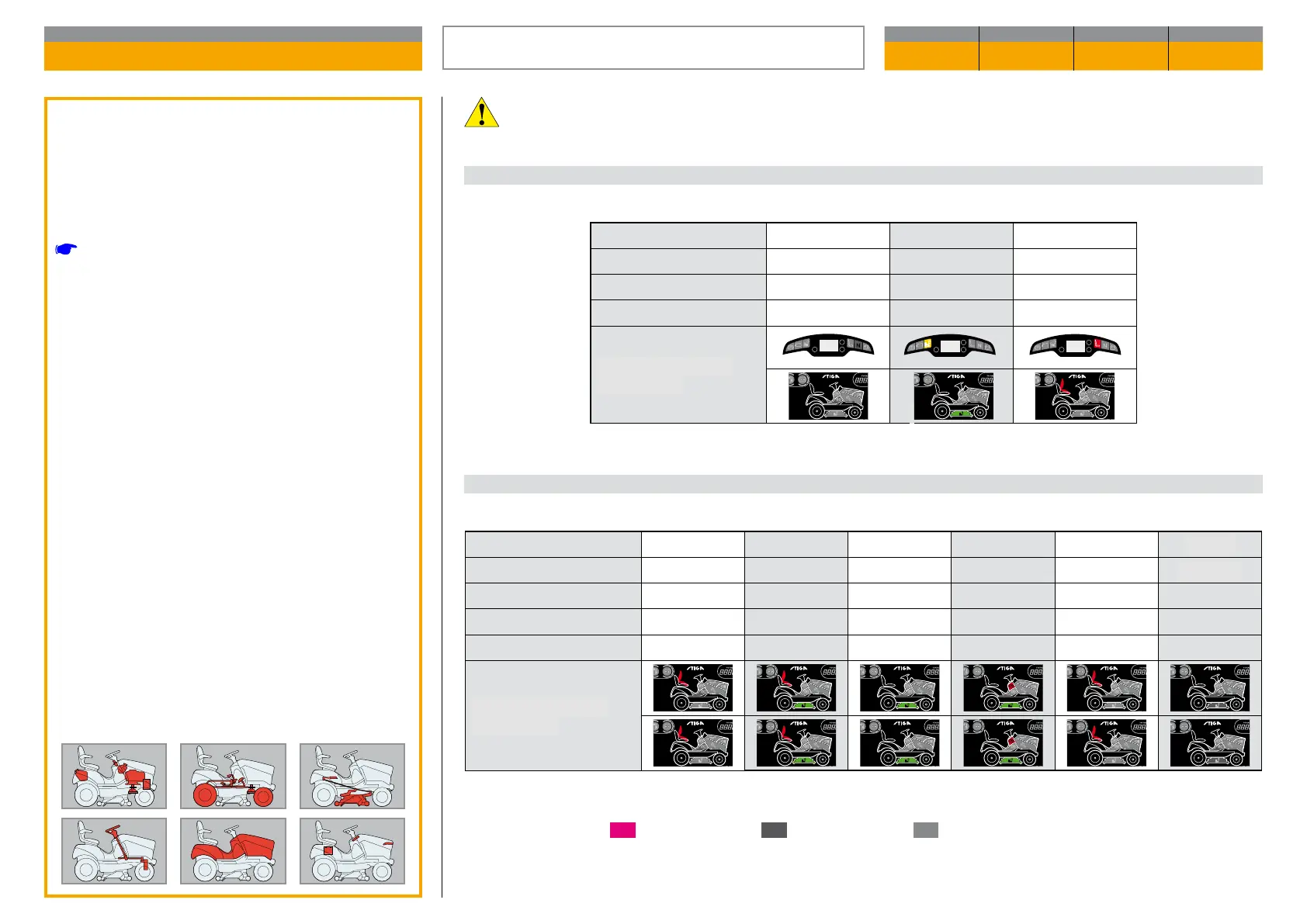

This table shows the various situations in which the sa fety devices intervene.
A) STARTING («START» position)
The engine DOES NOT start, when:
Operator –/– –/– Absent
Blades –/– Engaged –/–
Drive Engaged –/– –/–
Parking –/– –/– –/–
Indication on the
Dashboard
B) WHILE CUTTING
The engine STOPS start, when:
Operator Absent Absent –/– –/– Absent Seated
Blades –/– Engaged Engaged Engaged –/–
Engaged
Drive Engaged –/– –/– –/– –/– Reverse
Consent Button –/– –/– –/– –/– –/– Released
Parking –/– –/– –/– Engaged –/– –/–
Indication on the
Dashboard
–/– Irrelevant condition for the triggering of safety devices
Ж = Pilot lamp on Ж = Pilot lamp o Ж = Pilot lamp uninuential
CHAPTER REVISION FROM ... PAGE
7.2 1 2018 1 of 1
CUTTING IN OF THE SAFETY DEVICES
General informations

Related topics
[
7.3] Safety microswitches operation check
