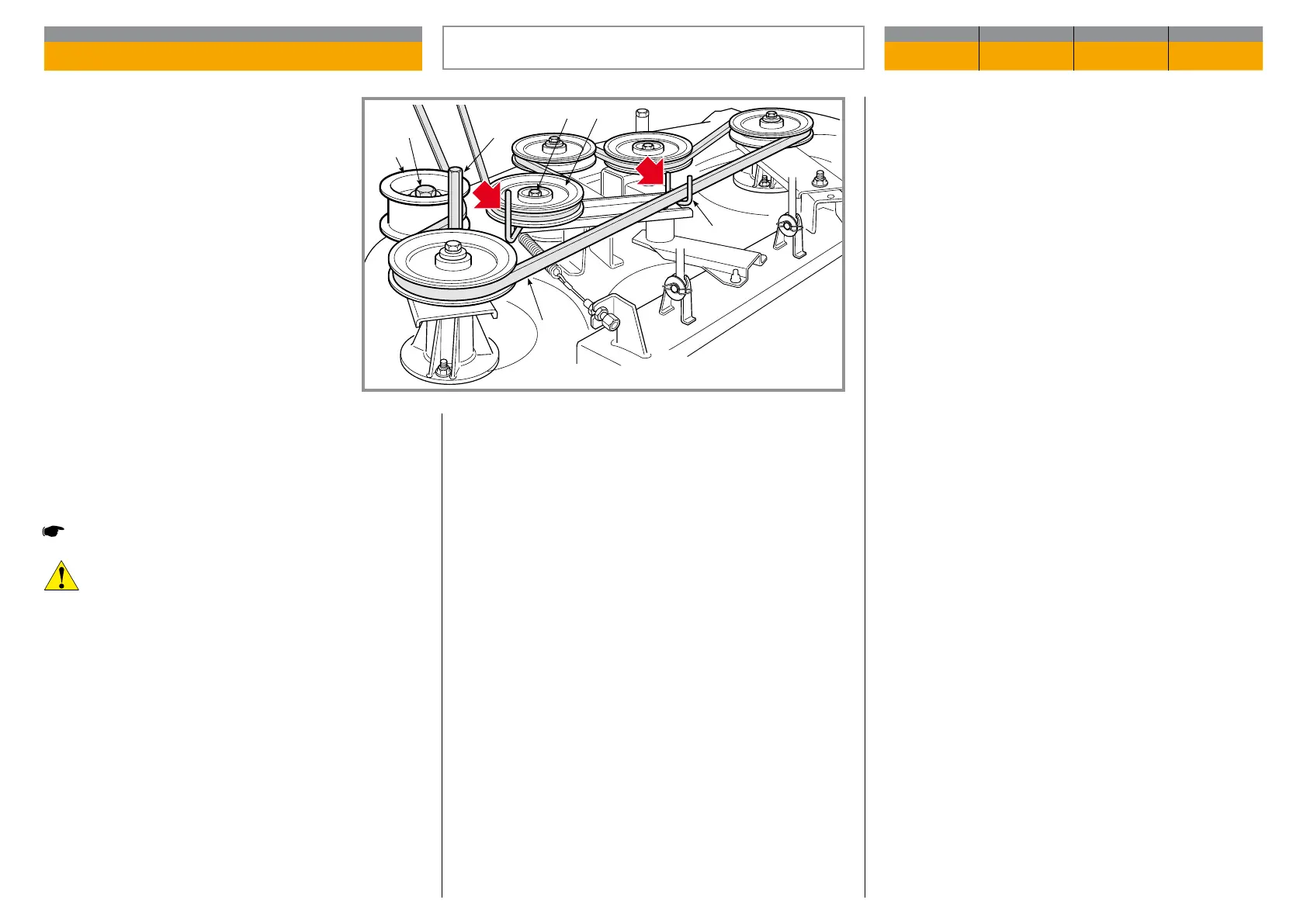

Loosen the guide pulley pin (7) and the
screws (8-9) almost completely, without re-
moving the idler pulley (10) and the pulley
(11) in order to be able to extract the belt
(5).
At this point the belt (5) is completely free
and can be extracted.
During reassembly operations, make sure the belt is
positioned accurately in relation to the containment
pins and its passage through the fork (12).
On completing the reassembly, it is necessary to ...
Adjust the blade engagement.
Always reassemble the internal (3-4) and
external (1-2) side safety guards.
CHAPTER REVISION FROM ... PAGE
6.5a 0 2018 2 of 2
