WORKSHOP MANUAL
TC 108 SD - TC 118 SD

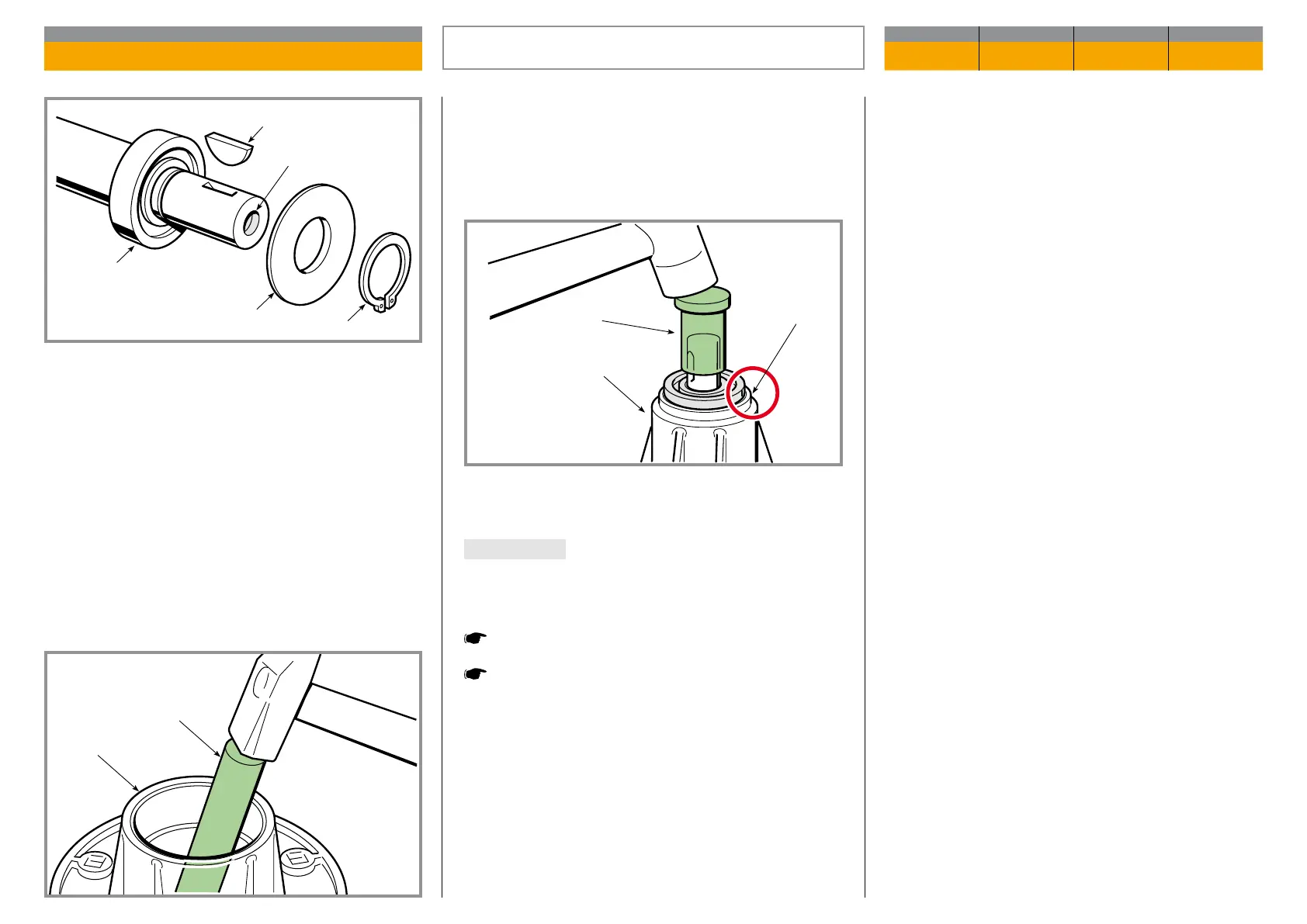

On reassembly, having rst inserted the shaft in the lo-
wer bearing hole and inserted everything into the sup-
port, t the upper bearing using the specic stopper
(31) that acts on the inner ring, hitting it squarely with
a mallet until the bearing is fully driven home.
Ret the anged supports onto the deck, fully tighte-
ning the nuts (22).
IMPORTANT When retting the plate (10), the holes
correspon ding to the support axes must meet
perfectly in the centring step (32) cut into the up
per part of each support.
Reassemble the blades.
Reassemble the blade control belt.
After having removed the key (25), the snap ring (26)
and the dust cover (27), the bearing (28) splined onto
the shaft can be removed using a normal ex trac tor,
being careful to close the threaded hole (29) with a
suitable screw to prevent the tip of the ex trac tor from
damaging the thread.
The second bearing still in place must be removed by
hitting it from the inside of the ange using a
12 ÷ 15 mm diameter round bar (30).
REPLACEMENT OF THE SUPPORTS
AND SHAFTS OF THE BLADES
CHAPTER REVISION FROM ... PAGE
6.6 0 2018 2 of 2
