Stihl 064 - 5.1.4 Stop Contact

STIHL 064, 066 36

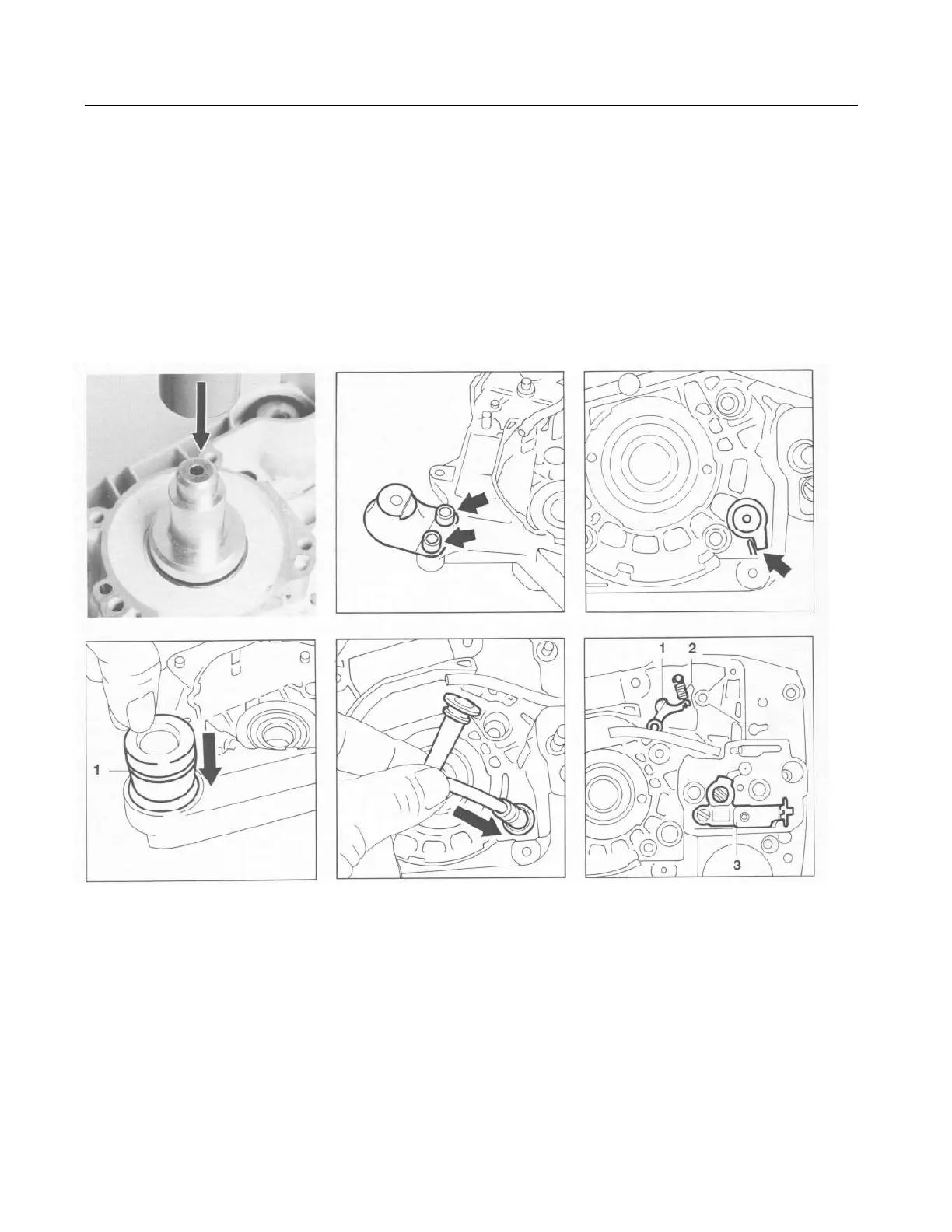

Top: Top:
Pressing in ball bearing with arbor Correctly fitted oil pickup hose
1119 893 7200 Top:
Annular buffer mounting screws Bottom:
Bottom: 1 = Lever
Fitting annular buffer Bottom: 2 = Spring
1 = Groove Fittin
g
oil
p
icku
p
hose 3 = Chain tensione
r
- If no facilities for heating the - Place the annular buffer in po- - Use a blunt tool to push the oil
crankcase are available, use sition - the tapered side must pickup hose into the bore so that
the press arbor to install the face outward. Fit the mounting the tab locates in its seat at the
ball bearing. screws and tighten them to 9 Nm bottom right (see illustration).
(6.6 Ibf.ft).
- Remove the oil pump and refit - Fit the lever over the pivot pin
the plastic plug. - Push the oil pickup hose through and secure it with the E-clip.
the crankcase bore.
- Push the two annular buffers - Attach the spring.
(tapered side first) into position
until their annular grooves en- - Install the chain tensioner, see
gage the inner rib. 3.4, and move tensioner slide up
against right-hand stop.
