STIHL 064, 066 79

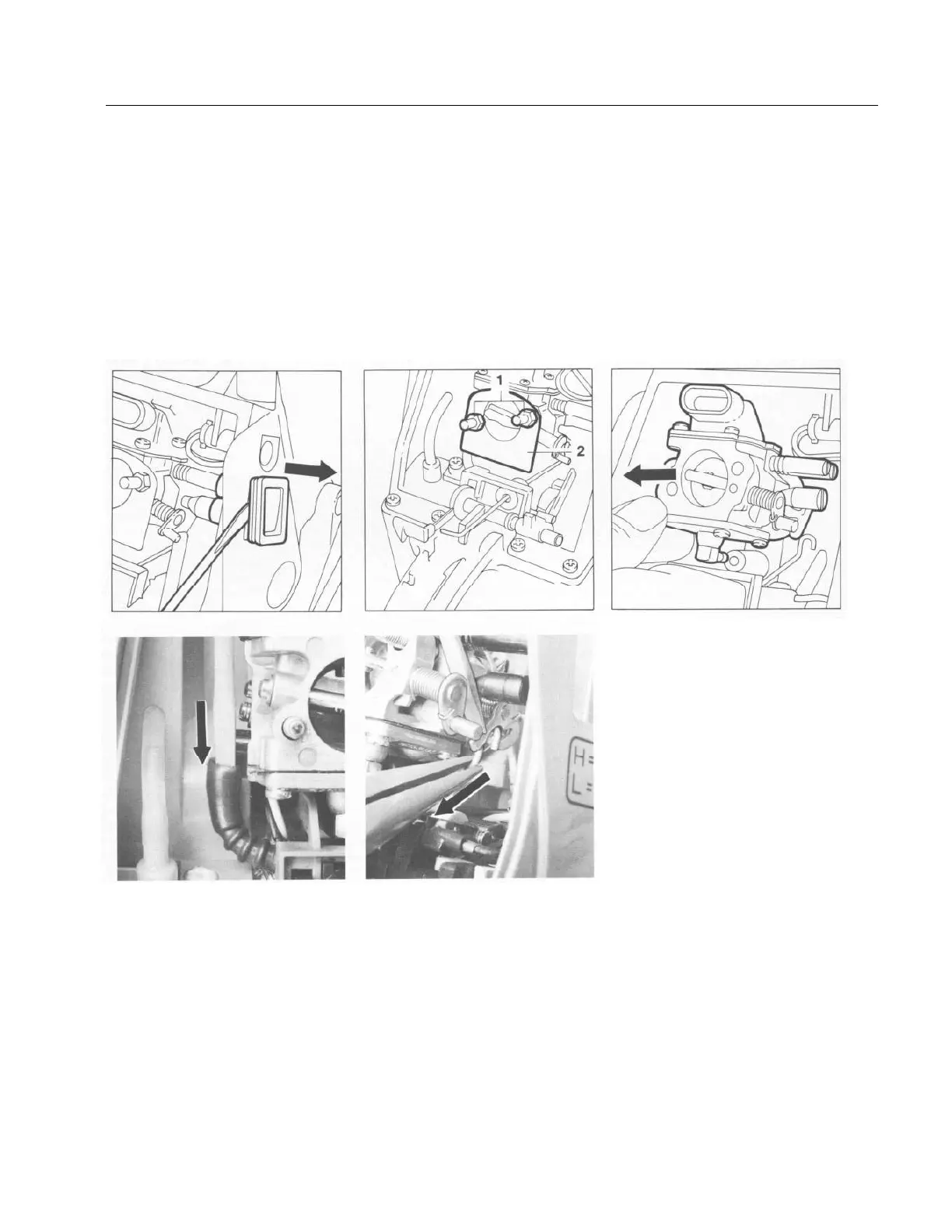

11.4 Removal and Installation
of Carburetor
Top: Top:
Prying out lateral grommet 1 = Mounting nuts
2 = Baffle plate
Bottom:
Disconnecting fuel hose from Bottom:
elbow connecto
r
Disconnectin
g
the throttle rod Removin
g
carbureto
r
- Use a screwdriver to press down the
throttle shaft lever and, at the same time,
detach the throttle rod with pointed nose
pliers.
- Pull the carburetor off the studs - the
elbow connector slips out of the impulse
hose at the same time.
The all-position diaphragm car- - Remove the air filter - see 11.1.
buretor consists of a fuel pump
and the actual carburetor. AI- - Pry the lateral grommet off the
though the fuel pump shares a adjusting screws and out of the
common housing with the carbure- carburetor box.
tor, it operates as a completely
separate and independent unit. - Disconnect the fuel hose from
the carburetor's elbow connector.
Troubleshooting chart - see 2.6.
- Unscrew the carburetor mounting
nuts.
- Pull the baffle off the studs.
