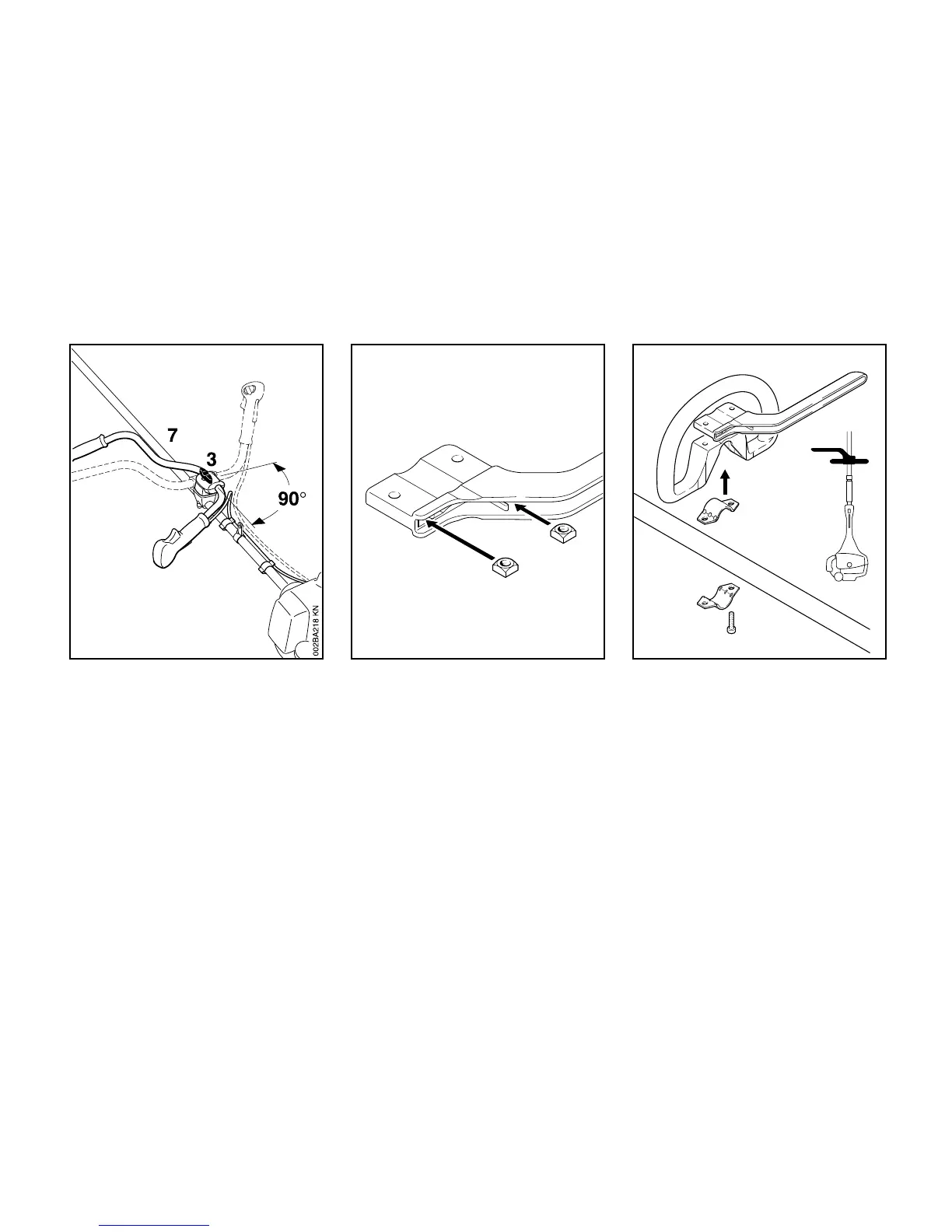

Swiveling the Handlebar
Transport position:
: Release the wing screw (3) and
unscrew it until the handlebar (7)
can be turned clockwise.
: Turn the handlebar 90° and then
swing the handles down.
: Tighten down the wing screw firmly.
Working position:
: Reverse the sequence described
above to swing the handles up
and turn the handlebar counter-
clockwise.
Loop handle with barrier bar
: Insert square nuts (1) in the barrier
bar (2).
: Line up the holes.
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and place the
barrier bar (2) in position.
: Note correct position!
: Line up the holes.
: Insert screws (7) in holes and screw
them into the barrier bar as far as
stop.
: Go to “Securing the loop handle”.
Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
