Stihl 200 - Loop Handle Installation and Throttle Cable Adjustment; Loop Handle Without Barrier Bar; Securing the Loop Handle; Throttle Cable Adjustment (Bike Handle)

23FS 120, FS 200, FS 250
English

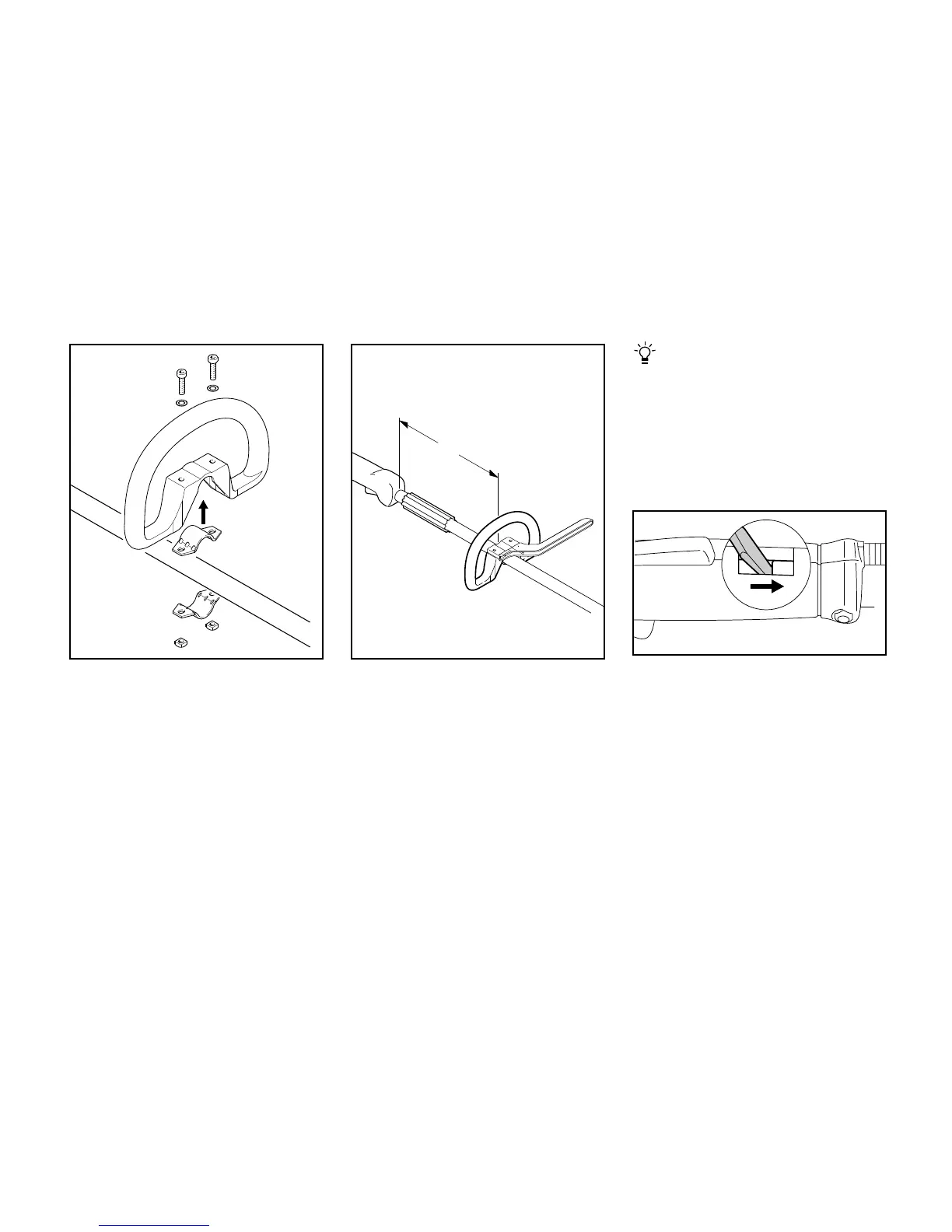

Loop handle without barrier bar
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and line up the
holes.
: Fit washers (7) on screws (8) and
insert screws in holes. Screw on the
square nuts (1) as far as stop.
: Go to “Securing the loop handle”.
Securing the loop handle
: Secure the loop handle (4) approx.
20 cm (A) forward of the control
handle (9).
: Line up the loop handle.
: Tighten down the screws firmly –
lock the nuts if necessaey.
10 Sleeve*
* see “Guide to Using this Manual“
A properly adjusted throttle cable is
the precondition for correct
operation in the full throttle, starting
throttle and idle positions.
Adjust the throttle cable only after
the unit is fully assembled – the
control handle must be in the normal
operating position.
: Use a suitable tool to push the slide
to the bottom of the slot (see
illustration).
4
5
002BA136 KN
1
6
1
3
8
7
8
7
10
9
4
002BA147 KN
A
Adjusting the Throttle Cable
Bike handle only
002BA163 KN
