TS 410, TS 420
English
18

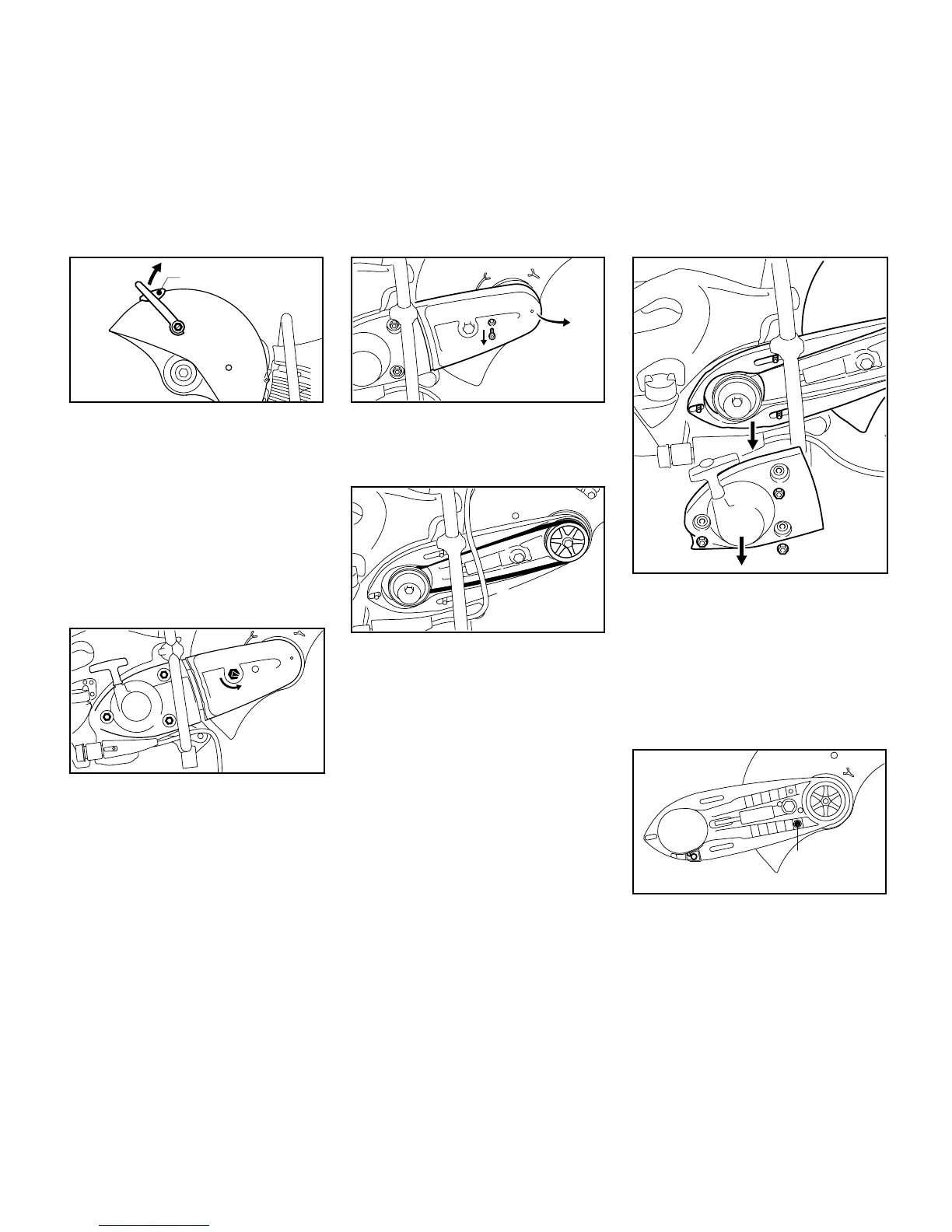

Removing the adjusting lever
N Unscrew the banjo bolt (1) with the
combination wrench and remove it
together with the seal – in the
process, remove the square nut
from the inside of the guard from the
guide
N Remove screw (2)
N Turn the adjusting lever (3) upwards
and remove
Slackening the V-belt
N Unscrew the nuts (1) – do not
remove them
N Turn the tensioning nut (2)
counterclockwise with the
combination wrench –
approx. 1/4 turn, as far as it will
go = 0
Removing the V-belt guard
N Remove screw (1)
N Raise the V-belt guard (2) slightly
and pull it off to the front
N Remove the V-belt (3) from the front
pulley (4)
Remove the "cast arm with guard"
N Unscrew the nuts (1)
N Remove the "starter cover with
rewind starter" (2)
N Remove the "cast arm with
guard" (3) from the studs
Preparing the "cast arm with guard"
for outboard mounting
N Unscrew stop pin (1)
2
370BA069 KN
1
3
1
1
1
2
370BA070 KN
0
2
1
370BA071 KN
3
370BA079 KN
4
370BA072 KN
1
2
3
1
1
1
370BA073 KN
