TS 410, TS 420
English
20
N Fit the support with the longer banjo
bolt on the adjusting lever (3) –
screw in the banjo bolt and tighten
with the combination wrench
N Insert the water hose into the guide
in the V-belt guard (arrow) from the
shut-off cock towards the guard –
avoid tight radiuses
Checking the adjustment range of the
guard
N Rotate the guard forwards and
backwards as far as possible –
adjustment range (A) must be
limited by the stop pin
Continue as described in the chapter
“Tensioning the V-belt”.
Inboard mounting
N Disassemble the cutting wheel (see
“Fitting / replacing an cutting wheel”)
N Remove water attachment
N Remove the adjusting lever
N Slacken the V-belt
N Remove the V-belt guard
N Remove the "cast arm with guard"

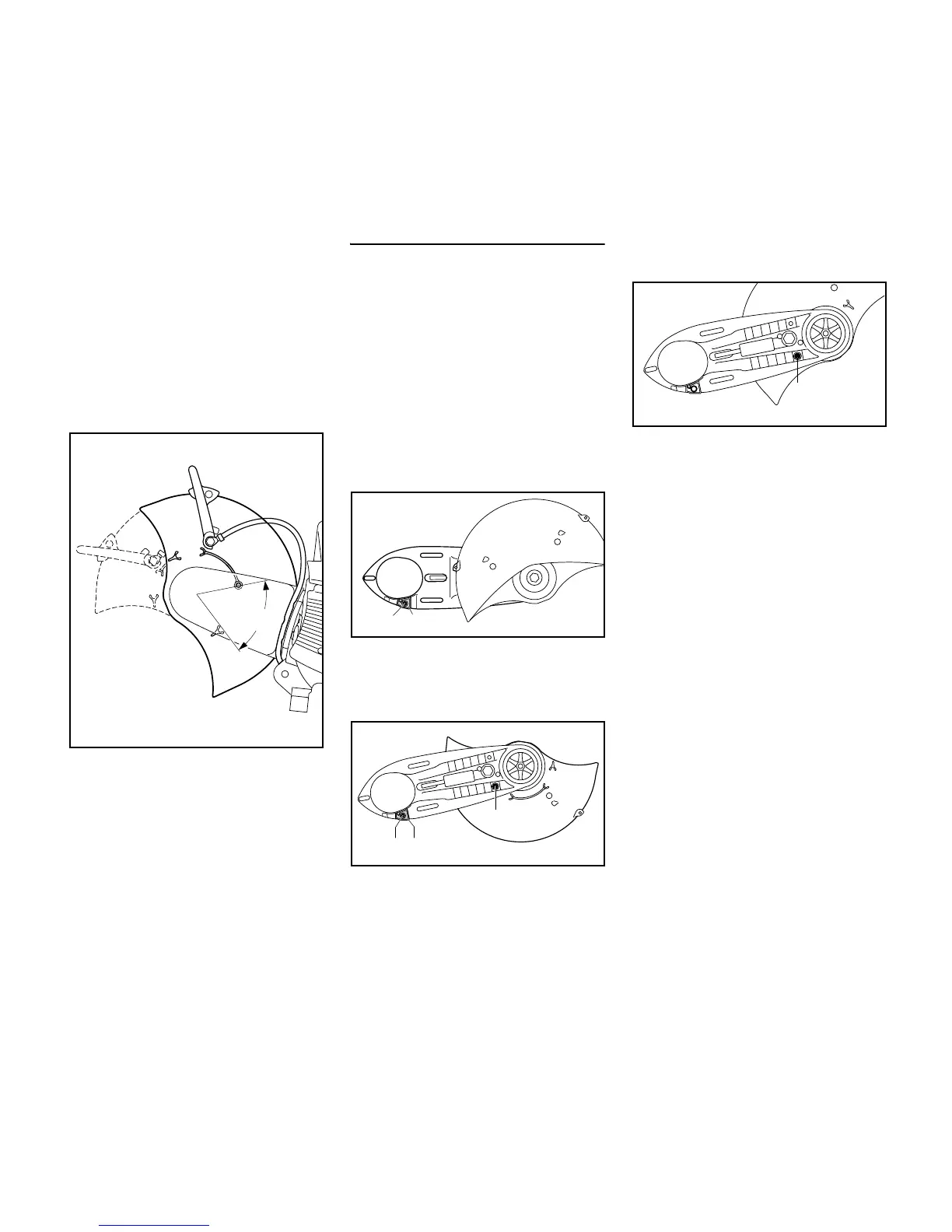

Preparing the "cast arm with guard"
for inboard mounting
N Unscrew the screw (1) of the limit
stop (2)
N Remove the limit stop (2)
N Turn the "cast arm with guard" so
that the guard is on the inboard side
N Insert limit stop (2) – align the hole
in the limit stop with the hole in the
cast arm
N Screw in the bolt (1) and tighten up
N Unscrew stop pin (3)
N Turn the guard so that it is in the
position shown (see picture)
N Screw in and tighten the stop pin (3)
N Install the adjusting lever
N Mount "cast arm with guard" – guard
on the inboard side
N Install the V-belt guard
N Connect water connection
370BA076 KN
A
1
2
370BA080 KN
3
370BA081 KN
1
2
3
370BA082 KN
