3 Main Parts
WARNING
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
NOTICE
Indicates a risk of property damage, including damage to the
machine or its individual components.
2.2 Symbols in Text
The following symbol is included to assist you with the use
of the manual:

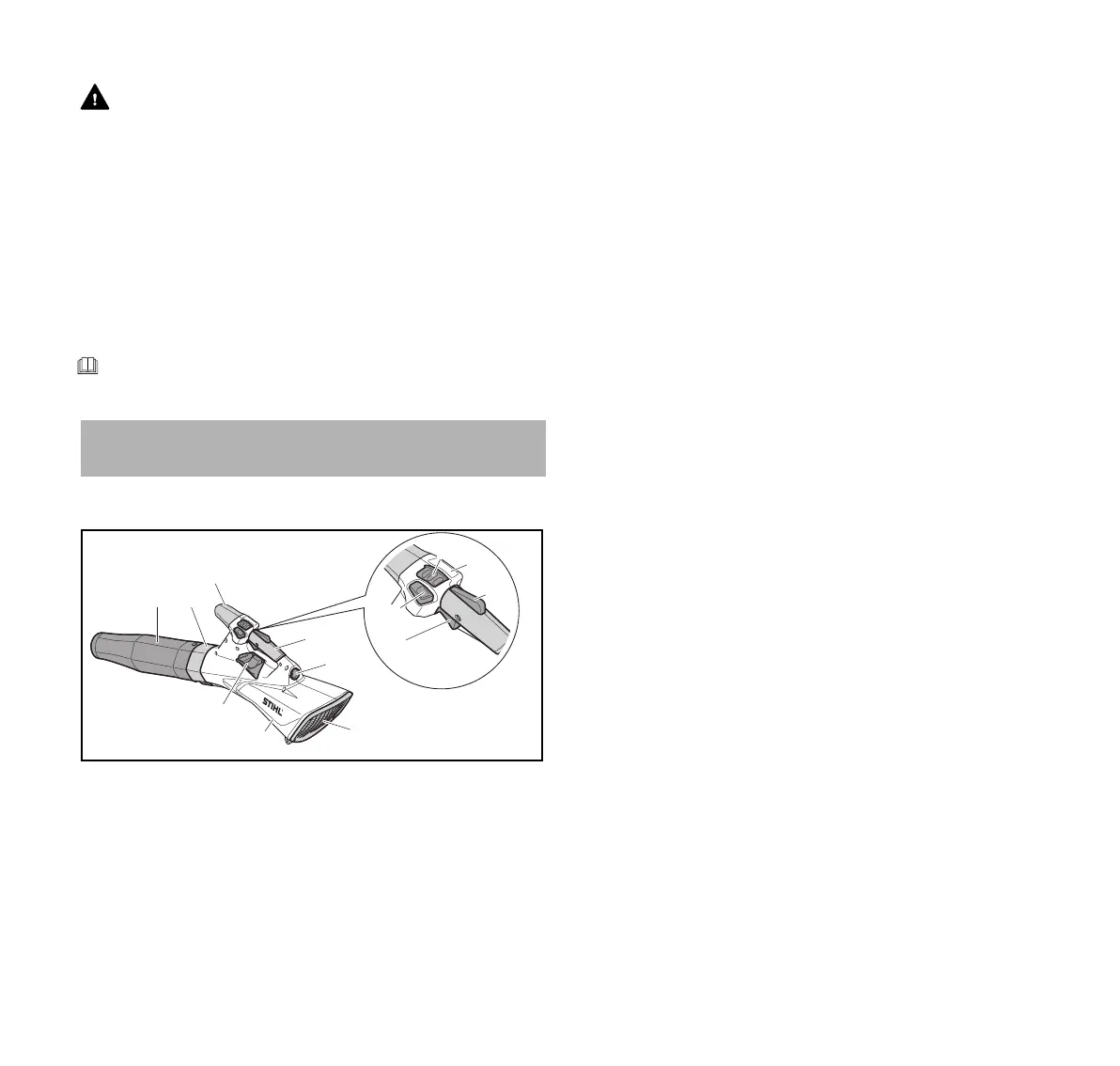

3.1 Blower
1 Nozzle
Directs and concentrates the airstream.
2 Blower Tube
Directs the airstream.
3 Gripping Surface
For controlling the blower when it is attached to a hip
pad.
4 Control Handle
The blower's handle.
5 Socket
Socket for the battery connecting cord.
6 Intake Screen
Covers the air intake opening and reduces risk of contact
with the blower fan.
7 Carrying Ring
Connects the blower to the harness.
8 Retaining Latch
For switching the blower on and selecting the power
level.
9LEDs
Indicate the unit's power level.
10 Trigger Switch Lockout
Must be depressed to allow activation of the trigger
switch.
11 Trigger Switch
Switches the motor on and off.
12 Power Hold Button
Holds the selected blowing force.
# Rating Plate
Contains electrical information and the product's serial
number.
Refers to a designated chapter or sub-chapter in this
instruction manual.
3Main Parts
3
7
#
4
5
6
2
1
8
9
10
12
11
